eSSL D330-18-IP65 Walk-Through Metal Detector – 18 Zone

Rs. 74,246.00

~~Rs. 96,520.00~~ Rs. 74,246.00

Sale Sold out

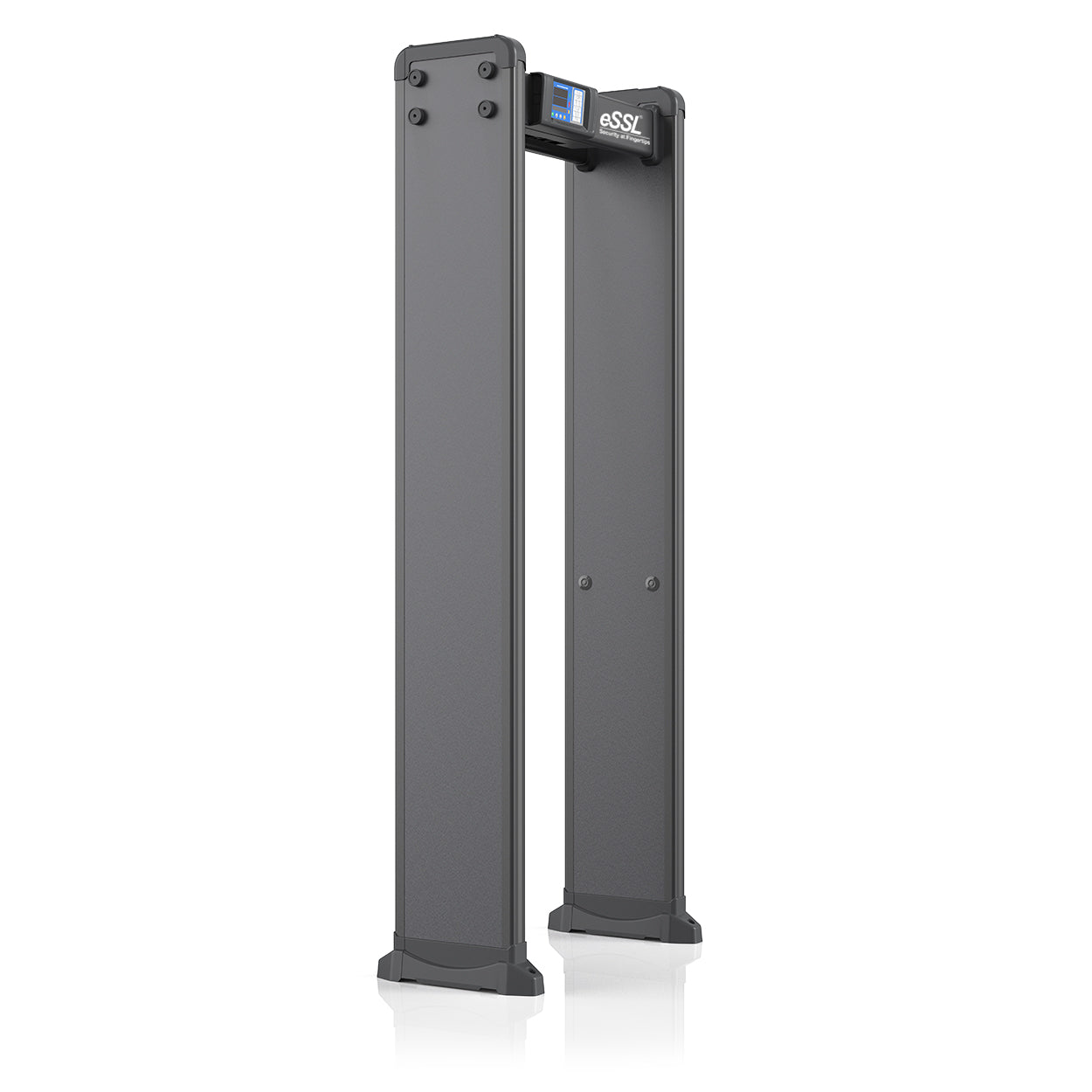

eSSL D330-18-IP65 Walk Through Metal Detector - 18 Zone

The eSSL D330-18-IP65 is a high-performance 18-zone walk-through metal detector designed for advanced security screening applications. Featuring eighteen independent detection zones, weatherproof IP65 protection, high-brightness LED displays, and intelligent sensitivity adjustment, the D330-18-IP65 delivers precise metal detection and reliable operation in airports, factories, government facilities, educational institutions, and outdoor security checkpoints.

18 Independent Detection Zones

Provides accurate localization of metallic objects with eighteen independent detection zones and bright LED indication.

IP65 Weatherproof Protection

Designed for indoor and outdoor installations with superior dust and water resistance.

Advanced Detection Technology

Low magnetic field technology with adjustable sensitivity ensures accurate detection while minimizing false alarms.

Entrance Automation Integration

Supports integration with turnstiles, flap barriers, and swing barriers through an optional IoT access controller.

Key Features

18 Independent Detection Zones.
Support for Multi-Zone Selection (6 / 12 / 18 Zones).
IP65 Weatherproof Protection.
Low Magnetic Field Technology.
5-Digit 7-Segment Bright LED Display.
Infrared Pass Count & Alarm Count.
Adjustable Sensitivity (0-400 Levels).
15 Selectable Alarm Tones.
Manual Calibration and Count Reset.
Entrance Automation Integration Support.
Simple Installation with Cross Beam Design.
Suitable for Indoor and Outdoor Applications.

Technical Specifications

Specification	Details
Model	D330-18-IP65
Type	18 Zone Walk Through Metal Detector
Detection Zones	18 Independent Zones (Selectable 6 / 12 / 18 Zones)
Working Principle	Electromagnetic
Material	ABS (Acrylonitrile Butadiene Styrene)
Frequency Range	0 - 99
External Dimensions	2191 × 875 × 446 mm
Passage Dimensions	2007 × 720 × 446 mm
Net Weight	35 kg
Gross Weight	42 kg
Distance Between Two DFMDs	850 mm
Input Voltage	AC 100V – 240V
Operating Frequency	50Hz – 60Hz
Working Temperature	-20°C to +65°C
Working Humidity	99% RH (Non-Condensing)
Sensitivity Adjustment	0 – 400 Levels
Volume Adjustment	0 – 50 Levels
Alarm Duration	0 – 3 Seconds
Alarm Tones	15 Different Tones
Minimum Detection	Ferrous Metals < 75 gm
Metal Detection Capability	Thickness 2 mm, Length 50 mm, Width 20 mm
Product Colour	Matte Black
Protection Rating	IP65
