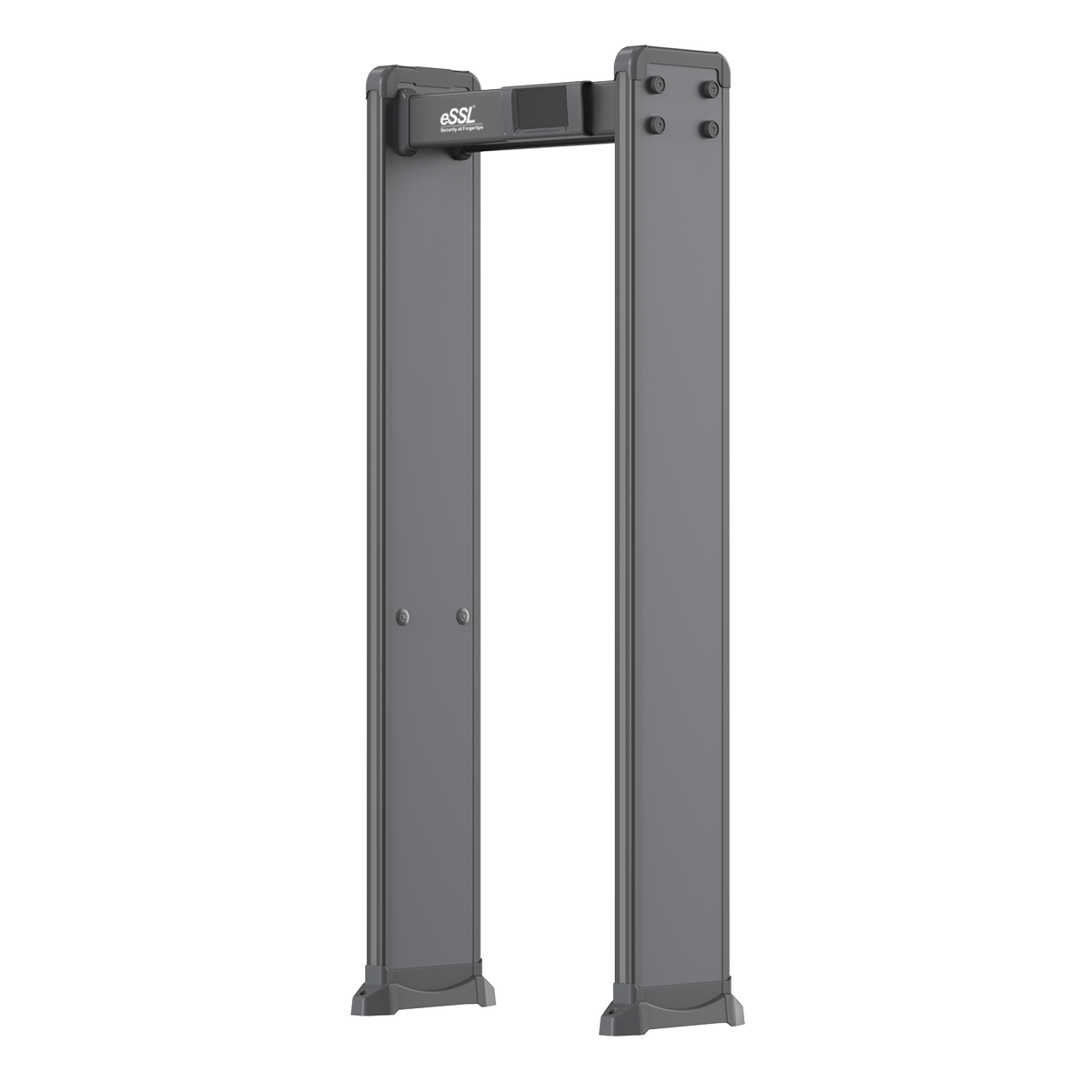

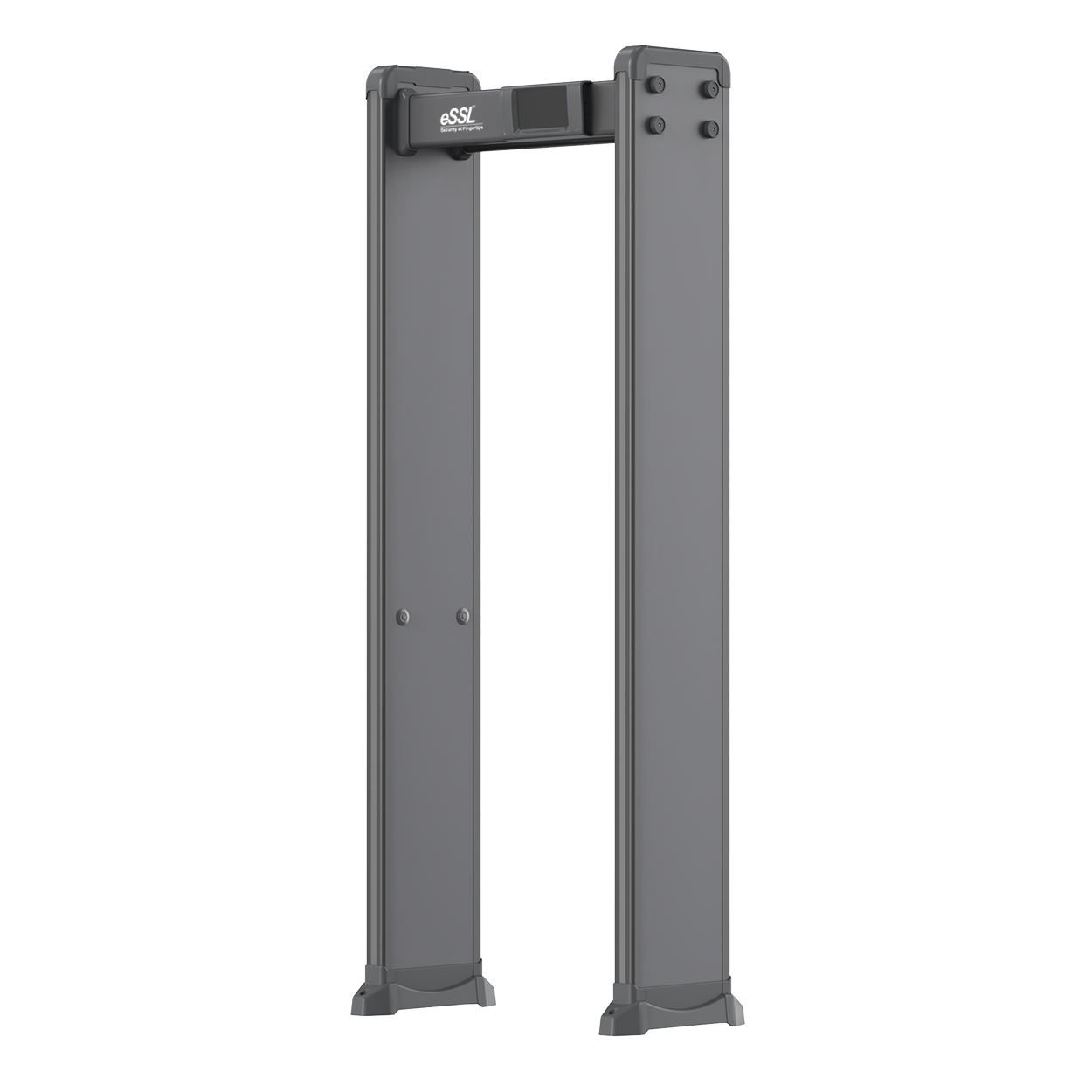

D330-18T-IP54 18 Zone Touch Screen Walk Through Metal Detector
D330-18T-IP54 18 Zone Touch Screen Walk Through Metal Detector
Regular price
Rs. 63,070.00
Regular price
Rs. 75,684.00
Sale price
Rs. 63,070.00
Quantity
Couldn't load pickup availability
Product Details
D330-18T-IP54 18 Zone Touch Screen Walk Through Metal Detector
The D330-18T-IP54 18 Zone Touch Screen Walk Through Metal Detector is an advanced Door Frame Metal Detector (DFMD) designed for reliable security screening in high-traffic environments. Featuring selectable 6, 12, or 18 detection zones, a 7-inch touchscreen display, adjustable sensitivity, and visual and audible alarm indications, it provides accurate detection of prohibited metallic objects while maintaining smooth passenger flow.
The D330-18T-IP54 uses electromagnetic detection technology and low magnetic field technology for safe and reliable operation. It can also be integrated with entrance automation equipment such as turnstiles, flap barriers, and swing barriers, making it suitable for airports, offices, factories, government buildings, educational institutions, and other security-sensitive locations.
Key Features
- Supports selectable 6, 12, or 18 detection zones
- 7-inch LCD touchscreen display
- Adjustable operating frequency and detection sensitivity
- High-brightness LED zone indication
- Visual and audible alarm indication
- 15 selectable alarm tones
- Low magnetic field technology
- Infrared sensors for automatic passage and alarm counting
- Supports pass count, alarm count, net count, and return count
- Password-protected configuration with 8-digit password
- Can integrate with turnstiles, flap barriers, and swing barriers
- External lithium battery connection supported
- Ergonomic structure with easy installation
- Designed for detection of prohibited metallic objects
Technical Specifications
| Specification | Details |
|---|---|
| Model | D330-18T-IP54 |
| Product Type | 18 Zone Touch Screen Door Frame Metal Detector (DFMD) |
| Working Principle | Electromagnetic Detection |
| Detection Zones | 6 / 12 / 18 Zones Selectable |
| Material | ABS (Acrylonitrile Butadiene Styrene) |
| Display | 7-inch LCD Touchscreen |
| Operating Frequency | 1 – 100 |
| Security Level | 1 – 100 |
| Sensitivity Level | 0 – 255 |
| Adjustable Sensitivity | 0 – 400 |
| Volume Adjustment | 0 – 50 |
| Alarm Volume | 0 – 20 |
| Alarm Sound Selection | 1 – 16 |
| Alarm Tones | 15 Different Tones |
| Screen Brightness | 10 – 100 |
| Screen Sleep Time | 1 – 60 Minutes |
| Time Setting | Supported |
| Metal Detection | Ferrous Metal < 75 g |
| Detection Object Size | Approx. 2 mm Thickness × 50 mm Length × 20 mm Width |
| Pass Counter | 0 – 999999 |
| Alarm Counter | 0 – 999999 |
| Net Counter | 0 – 999999 |
| Return Pass Counter | 0 – 999999 |
| Return Alarm Counter | 0 – 999999 |
| Infrared Sensors | Pass and Alarm Counting |
| Power Input | AC 100V – 240V, 50Hz – 60Hz |
| Power Consumption | 12W |
| Operating Temperature | -20°C to 65°C |
| Operating Humidity | Up to 99% RH, Non-Condensing |
| Protection Rating | IP54 |
| Product Color | Matte Black |
| Net Weight | 33 kg |
| Gross Weight | 39 kg |
| External Dimensions (L × W × H) | 2191 × 875 × 446 mm |
| Passage Dimensions (L × W × H) | 2007 × 720 × 446 mm |
| Package Dimensions (L × W × H) | 2290 × 625 × 190 mm |
| Packaging | Carton Box |
Detection & Anti-Interference Requirements
| Requirement | Recommended Distance |
|---|---|
| Distance from Walls | Keep at least 100 mm from the wall |
| Distance Between Two DFMD Units | Keep at least 500 mm apart |
| Distance from X-Ray Machine | Keep more than 800 mm away |
| Minimum Installation Area | Width 1000 mm × Length 2000 mm without metallic surroundings |
Product Features
- 18-zone detection with selectable zone configurations
- Simultaneous detection of metallic objects across multiple zones
- Visual zone indication for quick identification of detected areas
- High-brightness LED digital zone display
- Infrared start-stop functionality
- Configurable IR sensor operation
- Supports enabling or disabling individual IR sensor sets
- Easy installation with two side doors and cross beam
- Low magnetic field technology for safer operation
- EMC electromagnetic radiation compliant design
- Suitable for continuous security screening
Entrance Automation Integration
The D330-18T-IP54 can be integrated with various entrance automation systems to create a controlled security screening point.
- Turnstiles
- Flap Barriers
- Swing Barriers
- Access Control Systems
- Security Screening Systems
Applications
- Airports
- Railway Stations
- Government Buildings
- Corporate Offices
- Factories & Manufacturing Plants
- Warehouses & Logistics Centers
- Schools & Universities
- Hospitals
- Courts & Correctional Facilities
- Hotels & Commercial Buildings
- Event Venues
- Industrial Facilities
Why Choose D330-18T-IP54?
- 18-zone technology provides detailed detection coverage
- Large 7-inch touchscreen simplifies configuration and monitoring
- Adjustable sensitivity allows flexible security screening
- Infrared sensors provide accurate visitor and alarm counting
- IP54-rated construction for enhanced environmental protection
- Low magnetic field technology for safer operation
- Multiple alarm tones and LED indicators provide clear alerts
- Compatible with modern entrance automation systems
- Suitable for high-security and high-traffic environments
Installation Guidelines
- Maintain at least 100 mm clearance from surrounding walls
- Maintain at least 500 mm distance between two DFMD units
- Keep the detector more than 800 mm away from X-ray equipment
- Install in an area free from large metallic structures where possible
- Follow the recommended minimum installation area of 1000 mm × 2000 mm
Package Includes
- 1 × D330-18T-IP54 Walk Through Metal Detector
- Detection Door Panels
- Cross Beam Assembly
- Infrared Sensor System
- Power Connection Components
- Installation Accessories
- Carton Packaging
- User Manual
