eSSL Security

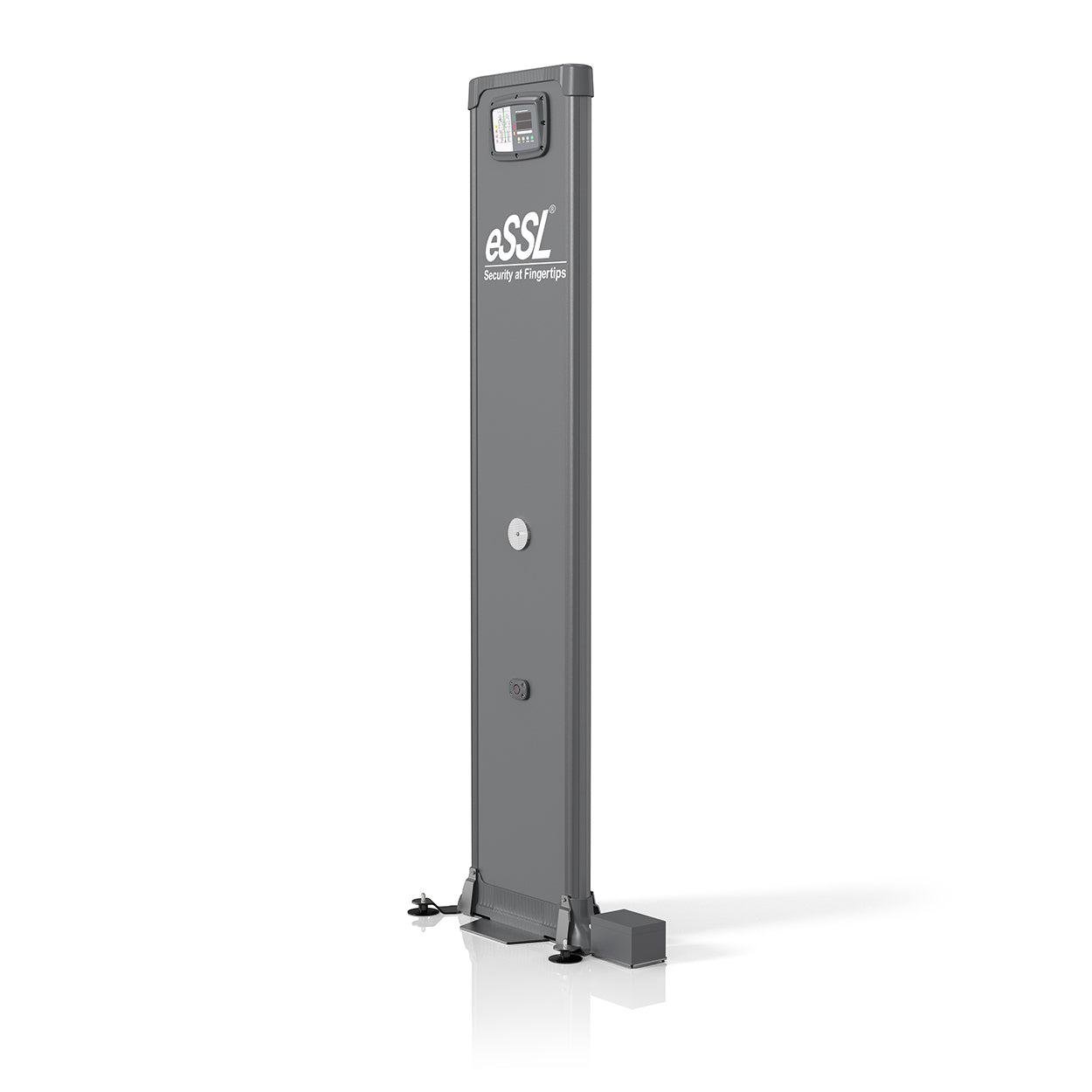

eSSL D468-6 Walk-Through Metal Detector – 6 Detection Zones

Rs. 0.00

Sale Sold out

eSSL D468-6 Single Door Panel Walk Through Metal Detector

The eSSL D468-6 is a compact and high-performance 6-zone single door panel walk-through metal detector designed for security screening applications where space is limited. Featuring multi-zone detection, bright LED zone indication, infrared pass counting, and IP54 protection, the D468-6 provides reliable and accurate detection of prohibited metallic items in offices, factories, educational institutions, hotels, and public facilities.

6 Independent Detection Zones

Supports selectable 3-zone or 6-zone operation for accurate localization of metallic objects.

Compact Single Panel Design

Space-saving single door panel structure with ergonomic design and simple installation.

Advanced Detection Technology

Low magnetic field technology ensures reliable detection with minimal interference and false alarms.

Dual-Side Detection

Provides metal detection from both sides with a detection distance of up to 600 mm.

Key Features

6 Zone Single Door Panel Walk Through Metal Detector.
Supports Selectable 3 / 6 Detection Zones.
IP54 Dust-Proof Protection.
5-Digit 7-Segment Bright LED Display.
Infrared Pass Count & Alarm Count.
Low Magnetic Field Technology.
Manual Calibration and Count Reset.
Adjustable Sensitivity (0-400 Levels).
15 Selectable Alarm Tones.
LED Zone Indication on Both Sides.
Easy Cross Beam Installation.
Detection of Prohibited Metallic Objects.

Technical Specifications

Specification	Details
Model	D468-6
Type	6 Zone Single Door Panel Walk Through Metal Detector
Detection Zones	Selectable 3 / 6 Zones
Working Principle	Electromagnetic
Material	ABS (Acrylonitrile Butadiene Styrene)
Frequency Range	0 - 99
External Dimensions	2203 × 580 × 117 mm
Net Weight	19 kg
Gross Weight	24 kg
Distance Between Person and Door	≤ 30 cm
Detection Distance	Dual Side Detection up to 600 mm
Input Voltage	AC 100V – 240V
Operating Frequency	50Hz – 60Hz
Working Temperature	-20°C to +65°C
Working Humidity	99% RH (Non-Condensing)
Sensitivity Adjustment	0 – 400 Levels
Volume Adjustment	0 – 50 Levels
Alarm Duration	0 – 3 Seconds
Alarm Tones	15 Different Tones
Metal Detection Capability	Thickness 2 mm, Length 50 mm, Width 20 mm
Product Colour	Matte Black
Protection Rating	IP54
