Dahua Technology

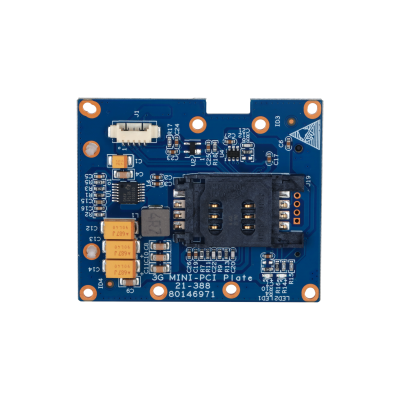

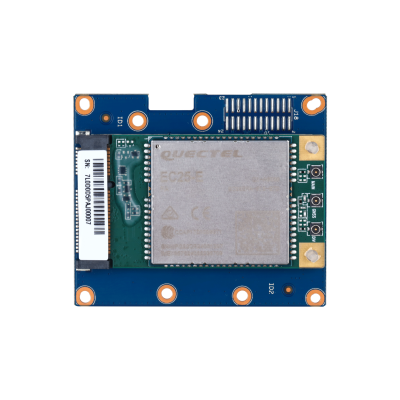

Dahua 3G/4G Module ARA58-F-EN

Rs. 7,680.00

~~Rs. 9,216.00~~ Rs. 7,680.00

Sale Sold out

Overview

The Dahua ARA58-F-EN 3G/4G Module is a communication expansion accessory designed for Dahua wired alarm controllers. It provides GSM, WCDMA, and LTE connectivity, ensuring reliable alarm transmission and remote communication even when the primary network connection is unavailable.

The module supports SMS notifications, voice calls, remote control through messages, and voice messages for alarm events. Its simple plug-in design allows direct installation on compatible alarm controller PCBs, making it an ideal solution for enhancing system reliability and communication redundancy.

Key Features

✔ Supports GSM, WCDMA and LTE networks

✔ 3G/4G communication backup

✔ SMS notification for alarm events

✔ Remote control through text messages

✔ Voice call and voice message support

✔ Simple installation through serial connector

✔ Reliable cellular communication

✔ Ideal backup solution during IP network failure

✔ Compatible with multiple Dahua wired alarm panels

✔ Low power consumption

Why Choose Dahua ARA58-F-EN?

Reliable Alarm Transmission

Ensures continuous alarm reporting and communication through GSM, 3G and 4G cellular networks.

Instant Notifications

Receive SMS alerts and voice calls whenever an alarm event occurs, helping users respond quickly.

Easy Installation

The module connects directly to the controller PCB, allowing fast and hassle-free installation.

Remote System Control

Users can remotely control and manage the alarm system through SMS commands and voice functions.

Enhanced System Reliability

Provides communication redundancy, ensuring uninterrupted operation during network outages.

Technical Specifications

Feature	Specification
Product Type	3G/4G Communication Module
Model	ARA58-F-EN
Network Modes	GSM / WCDMA / LTE-FDD / LTE-TDD
GSM Frequency	900 / 1800 MHz
WCDMA Bands	B1 / B5 / B8
LTE-FDD Bands	B1 / B3 / B5 / B7 / B8 / B20
LTE-TDD Bands	B38 / B40 / B41
Communication Functions	SMS, Voice Calls, Voice Messages
Installation	Direct PCB Connection Through Serial Interface
Power Consumption	4 W
Operating Temperature	-10°C to +55°C
Storage Temperature	-40°C to +80°C
Operating Humidity	10%–90% RH
Packaging Dimensions	238 × 109 × 45 mm
Net Weight	< 90 g
