Dahua Technology

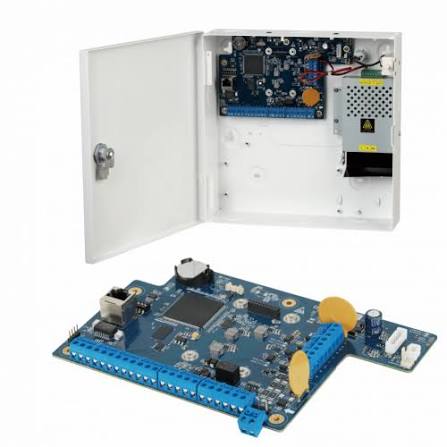

Dahua Alarm Controller ARC2008C-V3

Rs. 8,960.00

~~Rs. 10,752.00~~ Rs. 8,960.00

Sale Sold out

Overview

The Dahua ARC2008C-V3 Alarm Controller is a professional-grade wired intrusion alarm control panel designed for residential, commercial, industrial, and high-security applications. Powered by advanced control technology and reliable data transmission capabilities, it delivers stable operation and supports both standalone and networked deployments.

The controller provides 8 onboard alarm inputs and 4 onboard alarm outputs, expandable to 72 zones and 84 outputs. With support for multiple zone types, up to 8 subsystems, remote management, alarm receiving centers, and extensive fault monitoring, the ARC2008C-V3 offers a powerful and scalable security solution.

Key Features

✔ 8 onboard alarm inputs expandable to 72 zones

✔ 4 onboard alarm outputs expandable to 84 outputs

✔ Supports NO/NC detectors, tamper, short circuit and mask alarms

✔ Up to 8 independent subsystems

✔ Supports 32 LCD keypads and 32 wireless keyfobs

✔ Dual 10/100 Mbps Ethernet ports

✔ Contact ID (CID) reporting protocol

✔ Supports three alarm receiving centers simultaneously

✔ 20,000 event log capacity

✔ Remote firmware upgrade and recovery functions

✔ Configuration through keypad and web interface

✔ Emergency alarms including fire, medical and duress alarms

✔ Alarm input and output circuit protection

Why Choose Dahua ARC2008C-V3?

Scalable Alarm Platform

Expandable inputs and outputs allow the controller to adapt to growing security requirements, making it suitable for projects of various sizes.

Advanced Monitoring

Supports controller tamper, keypad tamper, battery failure, network disconnection, PSTN failure, IP conflicts and other fault alarms for enhanced reliability.

Flexible Control Options

Users can arm and disarm the system using keypads, keyfobs, IC cards, web browsers and management platforms.

Multiple Communication Methods

Dual Ethernet ports and PSTN support provide dependable alarm transmission and remote access capabilities.

Professional Security Solution

Ideal for schools, retail stores, factories, financial institutions, smart communities and other high-security environments.

Technical Specifications

Feature	Specification
Product Type	Wired Alarm Controller
Onboard Alarm Inputs	8 Zones
Maximum Expandable Inputs	72 Zones
Onboard Alarm Outputs	4 Outputs
Maximum Expandable Outputs	84 Outputs
Supported Detector Types	NO/NC, Detector Tamper, Short Circuit, Mask Alarm
Sub Systems	Up to 8
Zone Types	Instant Zone, Delayed Zone, 24-Hour Silent Zone and More
Network Ports	2 × RJ45 10/100 Mbps Self-Adaptive Ethernet Ports
Telephone Line	1 PSTN Port
RS-485 Ports	2
RS-232 Port	1
Supported Keypads	Up to 32 LCD Keypads
Supported Keyfobs	Up to 32 ARA24-W2 Keyfobs
Backup Battery	12 VDC / 7 Ah
Auxiliary Output	12 VDC, 1 A
Network Protocols	TCP/IP, DHCP, Static IP
Alarm Reporting Protocol	Contact ID (CID)
Alarm Receiving Centers	3 Simultaneous Centers
User Capacity	64 Network Users and 200 Keypad Users
Arm/Disarm Methods	Keypad, Keyfob, IC Card, Web and Platform
Event Log Capacity	20,000 Records
Remote Firmware Upgrade	Supported
Configuration Methods	Web Interface and Keypad
Power Supply	100–240 VAC, 50/60 Hz
Power Consumption	5 W (Idle), 60 W (Full Load)
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% RH
Installation	Wall Mount
Dimensions	275 × 74.8 × 275 mm
Net Weight	2.1 kg
Gross Weight	2.5 kg
Certifications	CE, FCC
