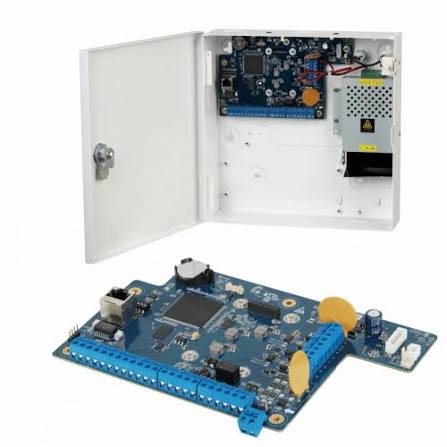

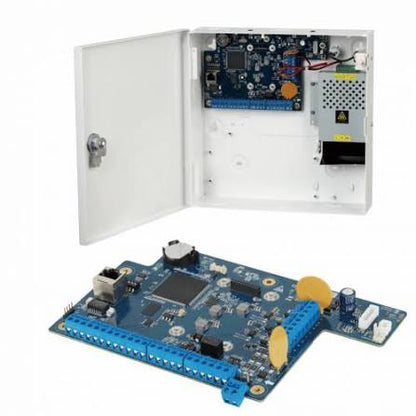

Dahua Alarm Controller ARC2016C-V3

Rs. 10,080.00

~~Rs. 12,096.00~~ Rs. 10,080.00

Sale Sold out

Overview

The Dahua ARC2016C-V3 Alarm Controller is a professional wired intrusion alarm control panel designed for residential, commercial, industrial, and high-security applications. Powered by advanced control technology and powerful data transmission capabilities, it provides reliable and stable operation in both standalone and networked deployments.

The controller offers 16 onboard alarm inputs and 4 onboard alarm outputs, expandable to 80 zones and 84 outputs. Supporting multiple zone types, up to 8 subsystems, remote configuration, alarm receiving centers, and extensive fault monitoring, the ARC2016C-V3 delivers a scalable and powerful security solution.

Key Features

✔ 16 onboard alarm inputs expandable to 80 zones

✔ 4 onboard outputs expandable to 84 outputs

✔ Supports NO/NC detectors, tamper, short circuit and mask alarms

✔ Up to 8 independent subsystems

✔ Supports up to 32 LCD keypads

✔ Supports up to 32 wireless keyfobs

✔ Dual 10/100 Mbps Ethernet ports

✔ CID (Contact ID) alarm reporting protocol

✔ Supports three alarm receiving centers simultaneously

✔ Stores up to 20,000 event logs

✔ Remote firmware upgrade and multiple recovery methods

✔ Configuration via keypad and web interface

✔ Supports fire, medical and duress emergency alarms

✔ Input and output circuit protection

Why Choose Dahua ARC2016C-V3?

Expandable Security Platform

With support for up to 80 zones and 84 outputs, the controller can easily adapt to growing security requirements.

Comprehensive Fault Monitoring

Detects controller tamper, keypad tamper, power failure, battery faults, network disconnection, PSTN failure, IP conflicts and other system abnormalities.

Flexible Operation

Users can arm and disarm the system through keypads, keyfobs, IC cards, web browsers and management platforms.

Reliable Communication

Dual Ethernet ports and PSTN communication ensure dependable alarm transmission and remote monitoring.

Professional Protection

Suitable for schools, retail stores, factories, financial institutions, legal offices and smart communities requiring advanced intrusion protection.

Technical Specifications

Feature	Specification
Product Type	Wired Alarm Controller
Onboard Alarm Inputs	16 Zones
Maximum Expandable Inputs	80 Zones
Onboard Alarm Outputs	4 Outputs
Maximum Expandable Outputs	84 Outputs
Supported Detector Types	NO/NC, Detector Tamper, Short Circuit and Mask Alarm
Sub Systems	Up to 8
Network Ports	2 × RJ45 10/100 Mbps Self-Adaptive Ethernet Ports
PSTN Port	1
RS-485 Ports	2
RS-232 Port	1
Supported Keypads	Up to 32 LCD Keypads
Supported Keyfobs	Up to 32 ARA24-W2 Remote Controls
Backup Battery	12 VDC / 7 Ah
Auxiliary Power Output	12 VDC, 1 A
Network Protocols	TCP/IP, DHCP, Static IP
Alarm Reporting Protocol	CID (Contact ID)
Alarm Receiving Centers	3 Simultaneous Centers
User Capacity	64 Network Users and 200 Keypad Users
Arm/Disarm Methods	Keypad, Keyfob, IC Card, Web and Platform
Event Log Capacity	20,000 Records
Remote Configuration	Supported
Remote Firmware Upgrade	Supported
Configuration Methods	Keypad and Web Interface
Power Supply	100–240 VAC, 50/60 Hz
Power Consumption	5 W (Idle), 60 W (Full Load)
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% RH
Installation	Wall Mount
Dimensions	275 × 74.8 × 275 mm
Net Weight	2.1 kg
Gross Weight	2.5 kg
Certifications	CE, FCC
