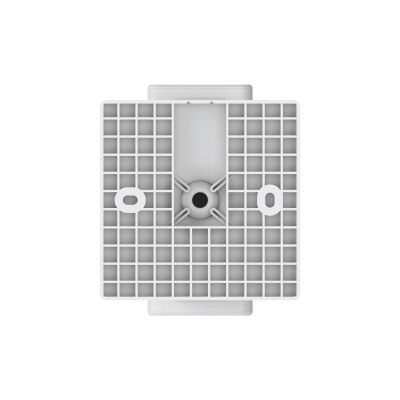

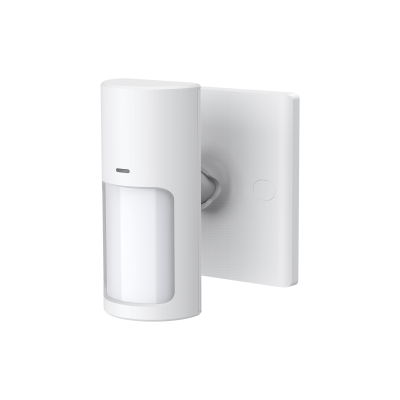

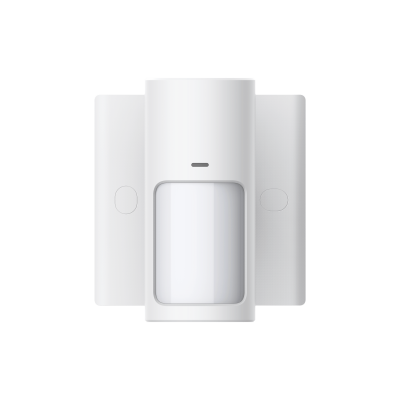

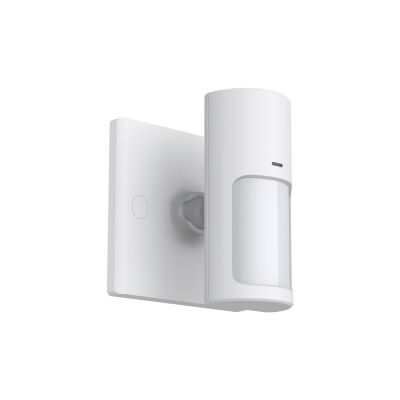

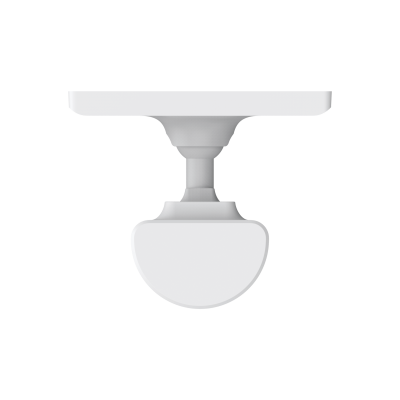

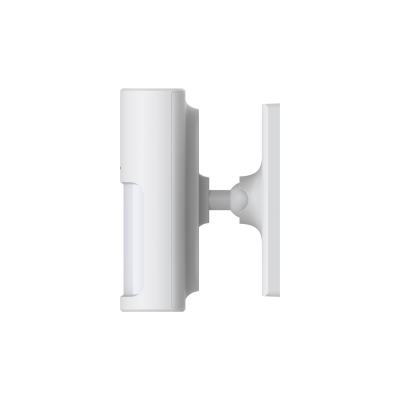

Dahua Curtain PIR Detector ARD1613

Rs. 1,440.00

~~Rs. 1,728.00~~ Rs. 1,440.00

Sale Sold out

Overview

The Dahua ARD1613 Curtain PIR Detector is a wired passive infrared detector designed to provide narrow-angle protection for doors, windows, balconies, corridors, elevators, and other entrances. Its curtain-shaped detection pattern offers precise intrusion detection while minimizing false alarms.

Equipped with a pyroelectric infrared sensor, automatic temperature compensation, and resistance to white light up to 6,500 lux, the ARD1613 delivers reliable performance in various indoor environments. Its compact design supports both wall and ceiling mounting for flexible installation.

Key Features

✔ Passive infrared (PIR) detection technology

✔ Narrow curtain-shaped detection area

✔ Detection distance up to 8 m

✔ 15° detection angle

✔ White light resistance up to 6,500 lux

✔ Automatic two-way digital temperature compensation

✔ Resistant to RF interference

✔ Built-in tamper protection

✔ Wall and ceiling mounting options

✔ Compact and lightweight design

Why Choose Dahua ARD1613?

Ideal for Doors and Windows

The narrow 15° curtain detection pattern provides focused protection for entrances, windows, balconies and corridors.

Reliable Detection

Advanced PIR sensing technology accurately detects human movement while reducing false alarms.

High Immunity to Light Interference

Capable of resisting white light up to 6,500 lux for dependable operation under changing lighting conditions.

Flexible Installation

Supports both wall and ceiling mounting to suit different indoor security applications.

Stable Performance

Automatic temperature compensation and RF interference resistance ensure consistent detection accuracy.

Technical Specifications

Feature	Specification
Product Type	Curtain PIR Detector
Model	ARD1613
Sensor Type	Pyroelectric Infrared Sensor
Detection Mode	Passive Infrared Detection (PIR)
Detection Distance	8 m (Wall Mount) 4 m (Ceiling Mount)
Detection Angle	15°
Detection Speed	0.3 m/s – 3 m/s
White Light Resistance	6,500 lux
Temperature Compensation	Two-Way Digital Temperature Compensation
Alarm Output	1 × NC Output, 28 VDC Max., 80 mA
Tamper Output	1 × NC Output, 28 VDC Max., 80 mA
Indicator Light	Red LED Indicator
Operating Current	≤25 mA (12 VDC)
Alarm Current	≤15 mA
Power Supply	9–24 VDC
Maximum Power Consumption	0.6 W
Operating Temperature	-10°C to +55°C
Operating Humidity	≤95% RH
Installation Type	Wall Mount or Ceiling Mount
Casing Material	PC + ABS
Dimensions	45 × 35 × 99 mm
Net Weight	87.4 g
Certification	CE
