Dahua KeyPad ARK30T-W2

Rs. 3,760.64

~~Rs. 4,512.76~~ Rs. 3,760.64

Sale Sold out

Overview

The Dahua ARK30T-W2 Wireless Keypad is an intelligent control panel designed for convenient operation of Dahua AirShield alarm systems. It allows users to arm and disarm the system using passwords or IC cards while supporting multiple users with individual access credentials.

Featuring two-way wireless communication, AES128 encryption, frequency hopping technology, and support for emergency alarms, the keypad delivers secure and reliable operation. Built-in temperature monitoring, signal strength detection, and cloud firmware updates further enhance system management and user experience.

Key Features

✔ Arm and disarm using password or IC card

✔ Supports up to 32 users

✔ Three shortcut alarms for Medical, Fire and Emergency

✔ Signal strength detection for optimal installation

✔ Built-in temperature monitoring

✔ Two-way wireless communication

✔ AES128 encryption for secure communication

✔ Frequency hopping technology

✔ Cloud firmware upgrade and automatic recovery

✔ Tamper protection and low battery alarm

✔ Four LED indicators for device status

✔ Battery life up to 3 years

Why Choose Dahua ARK30T-W2?

Convenient User Access

The keypad supports multiple users and allows arming and disarming through private passwords or IC cards, improving security and ease of use.

Emergency Protection

Dedicated shortcut alarms for medical emergencies, fire events, and panic situations provide quick access to emergency assistance.

Reliable Wireless Communication

Two-way communication combined with frequency hopping technology ensures stable signal transmission between the keypad and the alarm hub.

Enhanced Security

AES128 encryption protects wireless communication, while tamper detection prevents unauthorized interference.

Long Battery Life

Technical Specifications

Feature	Specification
Product Type	Wireless Keypad

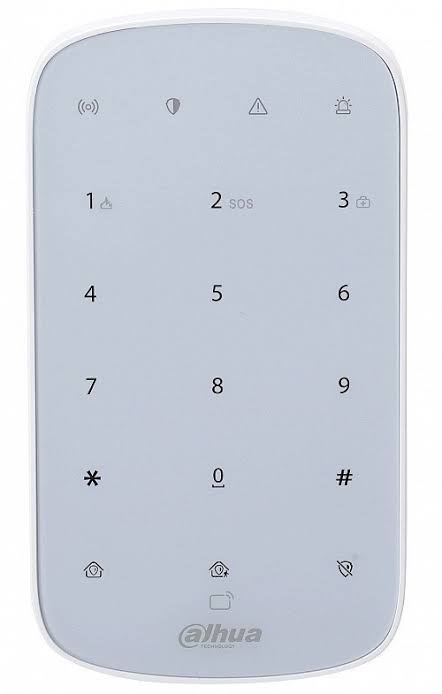

Buttons	15 Buttons (0–9, *, #, Arm, Disarm and Home Arm)
Indicators	4 LEDs (Communication, Arm/Disarm, Fault and Alarm)
Buzzer	1 Built-in Buzzer
Arm / Disarm Methods	Password or IC Card
User Capacity	32 Users
Emergency Alarms	Medical, Fire and Emergency
Temperature Monitoring	Supported
Temperature Measurement Range	-15°C to +65°C
Temperature Accuracy	±1°C
Remote Upgrade	Cloud Update
Low Battery Detection	Supported
Tamper Protection	Supported
Communication Mechanism	Two-Way Wireless Communication
Encryption Mode	AES128
Frequency Hopping	Supported
Wireless Frequency	433.1 MHz – 434.6 MHz
Transmission Power (EIRP)	Up to 10 mW
Communication Distance	Up to 1,200 m (Open Area)
Power Supply	4 × AA Batteries
Battery Life	Up to 3 Years (Arm/Disarm Once Daily)
Battery Life with Entry/Exit Delay Tone Enabled	Up to 2 Years
Maximum Power Consumption	2.3 W
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% RH
Installation	Wall Mount
Casing Material	PC + ABS

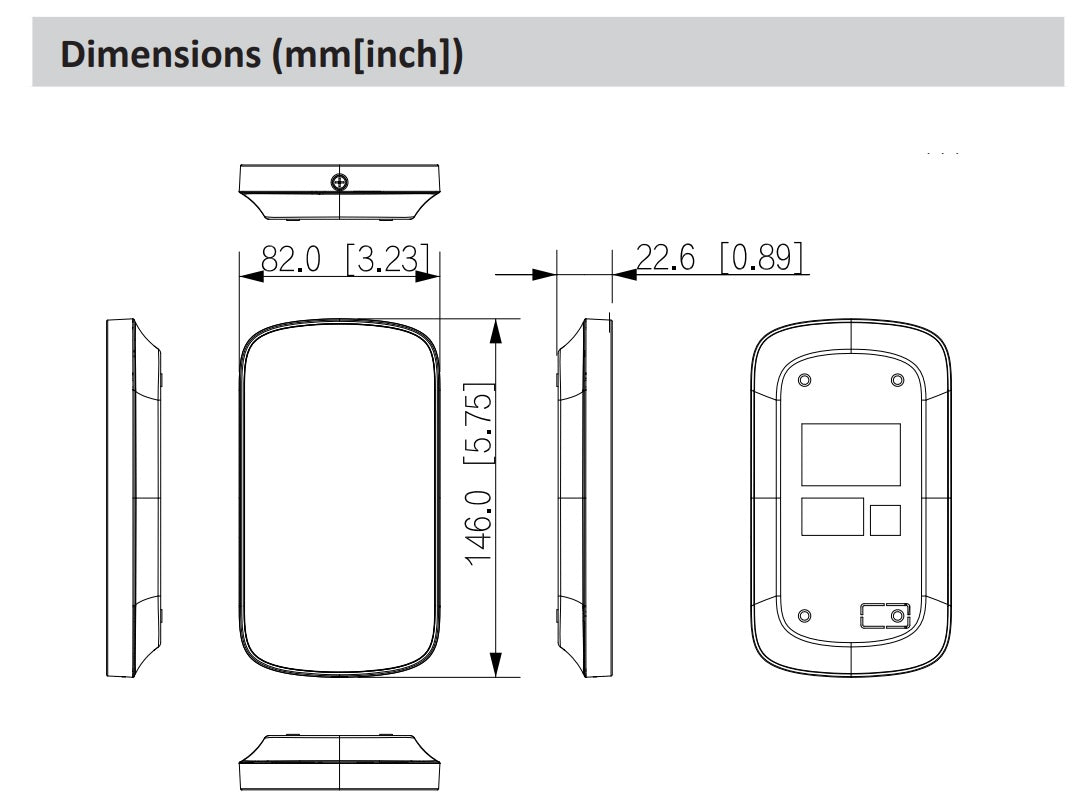

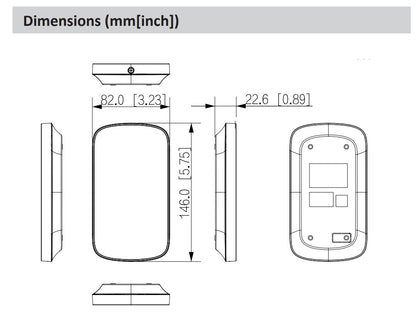

Dimensions	146 × 82 × 22.6 mm
Net Weight	240 g (with batteries)
Gross Weight	370 g
Certification	CE
