Dahua Technology

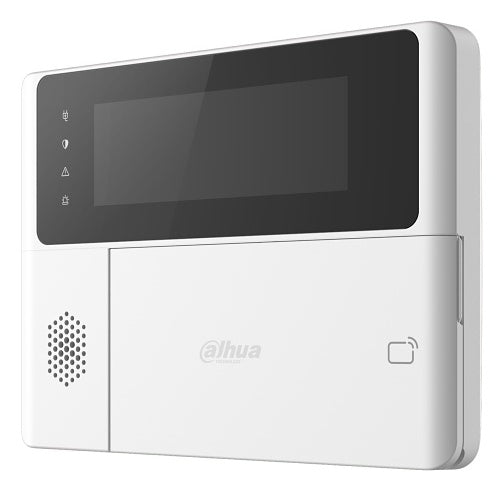

Dahua LCD KeyPad ARK30C-RW2

Rs. 7,040.00

~~Rs. 8,448.00~~ Rs. 7,040.00

Sale Sold out

Overview

The Dahua ARK30C-RW2 Wireless LCD Keypad is an advanced control panel designed for Dahua AirShield alarm systems. Featuring a large LCD display, the keypad provides real-time system status, alarm information, and convenient control of security devices. It supports multiple operations including arming, disarming, bypassing zones, and output control.

With support for passwords, IC cards, and DESFire cards, the keypad offers flexible access management. Two-way wireless communication, AES128 encryption, and frequency hopping technology ensure secure and reliable communication with the alarm hub. The LCD screen can display up to 50 alarm events, providing users with clear system information.

Key Features

✔ Backlit LCD display with system status information

✔ Displays up to 50 alarm events

✔ Supports password, IC card and DESFire card authentication

✔ Supports output control through relay, WallSwitch and smart plug

✔ Three shortcut alarms for Medical, Fire and Emergency

✔ High-decibel built-in alarm sound

✔ Status query for fault and alarm information

✔ Two-way wireless communication

✔ AES128 encryption and frequency hopping technology

✔ Cloud firmware update with automatic recovery

✔ Tamper protection and low battery detection

✔ Supports 16 display languages

✔ Battery backup up to 3 years

Why Choose Dahua ARK30C-RW2?

Intuitive LCD Interface

The built-in LCD screen provides clear system information and can display up to 50 alarm events, enabling convenient monitoring and management.

Flexible Access Control

Users can arm and disarm the system using passwords, IC cards, or DESFire cards for enhanced convenience and security.

Reliable Wireless Communication

Two-way communication with AES128 encryption and frequency hopping technology ensures secure and stable signal transmission.

Emergency Response Functions

Dedicated shortcut alarms for medical, fire, and emergency situations provide quick access to alarm activation when needed.

Long Battery Backup

The keypad can operate for up to three years on batteries, ensuring continued operation during power interruptions.

Technical Specifications

Feature	Specification
Product Type	Wireless LCD Keypad
Display	Backlit LCD Screen
Alarm Event Display	Up to 50 Events
Buttons	20 Buttons (10 Numeric + 10 Function Keys)
Indicator LEDs	4 Indicators (Power, Arm/Disarm, Fault and Alarm)
Buzzer	2 Built-in Buzzers
Sound Pressure	73–95 dB(A) at 1 m
Arm/Disarm Methods	Password, IC Card, DESFire Card
Shortcut Alarms	Medical, Fire and Emergency
Status Query	Supported
Temperature Measurement Range	-10°C to +55°C
Remote Upgrade	Cloud Update
Low Battery Detection	Supported
Tamper Protection	Supported
Communication Mechanism	Two-Way Wireless Communication
Encryption Mode	AES128
Frequency Hopping	Supported
Wireless Frequency	868.0 MHz – 868.6 MHz
Transmission Power (EIRP)	Up to 25 mW
Communication Distance	Up to 1,600 m (Open Area)
Supported Languages	16 Languages
Power Supply	12 VDC or 4 × CR123A Batteries
Battery Life	Up to 3 Years
Maximum Power Consumption	4.8 W
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% RH
Installation	Wall Mount
Casing Material	PC + ABS
Dimensions	170 × 129 × 31.2 mm
Net Weight	390 g
Gross Weight	665 g
Color	White
Included Accessories	2 IC Cards
Certification	CE
