Dahua Technology

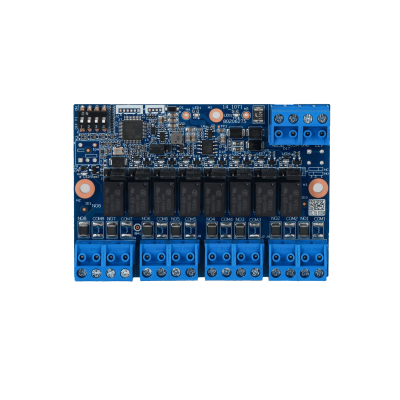

Dahua Output Expansion ARM708-RS

Rs. 1,920.00

~~Rs. 2,304.00~~ Rs. 1,920.00

Sale Sold out

Overview

The Dahua ARM708-RS Output Expansion Module is designed to increase the output capacity of Dahua wired alarm systems. It provides eight programmable outputs that can be used to control external devices such as sirens, strobe lights, relays, indicators, and automation equipment.

Featuring reliable RS-485 communication, flexible NO/NC output configuration, and support for remote firmware upgrades, the ARM708-RS delivers stable performance and seamless integration with compatible Dahua alarm controllers, making it ideal for commercial and residential security installations.

Key Features

✔ 8-channel output expansion module

✔ RS-485 communication interface

✔ Communication distance up to 300 m

✔ Programmable output control

✔ NO and NC output mode selection via jumper

✔ Device address configurable through DIP switches

✔ Supports remote firmware upgrades

✔ Compact and easy-to-install design

✔ Compatible with Dahua ARC series alarm controllers

Why Choose Dahua ARM708-RS?

Expand System Capability

Provides eight additional outputs for controlling sirens, relays, warning lights and other external devices.

Reliable Communication

RS-485 interface ensures stable communication over distances up to 300 meters.

Flexible Output Configuration

Selectable Normally Open (NO) and Normally Closed (NC) output modes allow easy adaptation to different applications.

Easy Maintenance

Remote firmware upgrade capability simplifies maintenance and keeps the system updated.

Compact Design

Slim and lightweight construction allows convenient installation inside alarm cabinets and control panels.

Technical Specifications

Feature	Specification
Product Type	Output Expansion Module
Model	ARM708-RS
Output Channels	8
Communication Interface	1 × RS-485
Maximum Communication Distance	300 m (984 ft)
Device Address	0–15 (ARC9 Series and ARC2 Series) 1–8 (ARC3008)
Output Type	NO / NC Selectable
Output Rating	30 VDC, 500 mA
Power Supply	12 VDC
Power Consumption	1.8 W
Operating Temperature	-10°C to +55°C
Operating Humidity	10%–90% RH
Dimensions	90 × 62 × 12.6 mm
Installation Environment	Indoor
