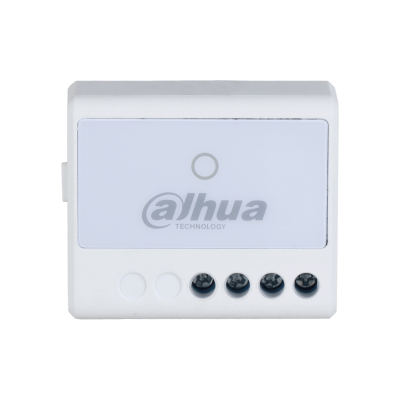

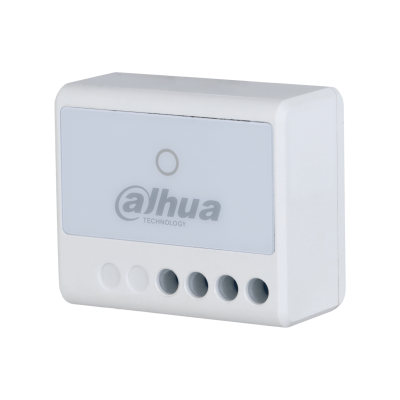

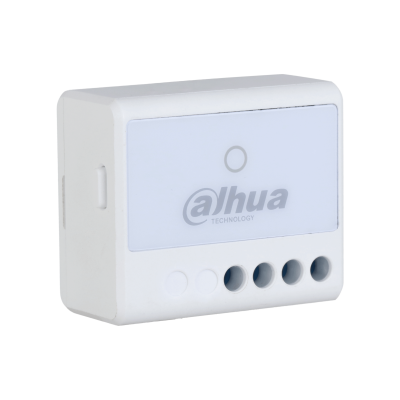

Dahua Wall Switch ARM7012-W2

Rs. 2,480.64

~~Rs. 2,976.00~~ Rs. 2,480.64

Sale Sold out

Overview

The Dahua ARM7012-W2 Wireless Wall Switch is an intelligent power switch designed for remote control and automation of AC-powered devices within Dahua AirShield systems. It allows users to remotely switch electrical loads such as lighting, appliances, pumps, and other equipment through the alarm hub and mobile application.

In addition to remote switching, the device continuously monitors voltage, current, and energy consumption. Built-in overvoltage, overload, and overheating protection provide enhanced safety, while AES128 encryption and two-way wireless communication ensure secure and reliable operation.

Key Features

✔ Remotely controls 100–240 VAC electrical devices

✔ Monitors voltage, current and energy consumption

✔ One relay output with NO/NC contacts

✔ Supports loads up to 13 A

✔ Overvoltage protection

✔ Overload protection

✔ Overheating protection

✔ Two-way wireless communication

✔ AES128 encryption

✔ Frequency hopping technology

✔ Cloud firmware updates and automatic recovery

✔ Communication distance up to 1,200 m in open area

Why Choose Dahua ARM7012-W2?

Smart Power Control

Easily control lighting systems, pumps, fans, and other AC-powered devices remotely through the Dahua AirShield ecosystem.

Energy Monitoring

Built-in monitoring functions allow users to track voltage, current, and power consumption for improved efficiency and management.

Enhanced Protection

Integrated overvoltage, overload, and overheating protection help safeguard connected equipment and increase system reliability.

Reliable Wireless Communication

Two-way communication combined with AES128 encryption and frequency hopping technology ensures secure and stable transmission.

Compact Installation

Its small form factor allows installation inside wall boxes, switch panels, and electrical cabinets without occupying much space.

Technical Specifications

Feature	Specification
Product Type	Wireless Wall Switch
Relay Output	1 Relay Output, NO/NC
Rated Load	100–240 VAC, Maximum 13 A
Power Monitoring	Voltage, Current and Energy Consumption
Indicator Light	1 Multi-status LED Indicator
Button	1 Function Button
Remote Upgrade	Cloud Update Supported
Test Mode	Supported
Protection Features	Overvoltage, Overload and Overheating Protection
Communication Mechanism	Two-Way Wireless Communication
Encryption Mode	AES128
Frequency Hopping	Supported
Wireless Frequency	868.0 MHz – 868.6 MHz
Transmission Power	Up to 25 mW
Communication Distance	Up to 1,200 m (Open Area)
Power Supply	100–240 VAC, 50/60 Hz
Operating Temperature	-10°C to +55°C
Storage Temperature	-10°C to +55°C
Operating Humidity	10%–90% RH
Storage Humidity	10%–90% RH
Installation	Wall Mount
Casing Material	Plastic
Dimensions	39 × 33 × 19 mm
Net Weight	45 g
Gross Weight	60 g
Certification	CE
