Dahua Technology

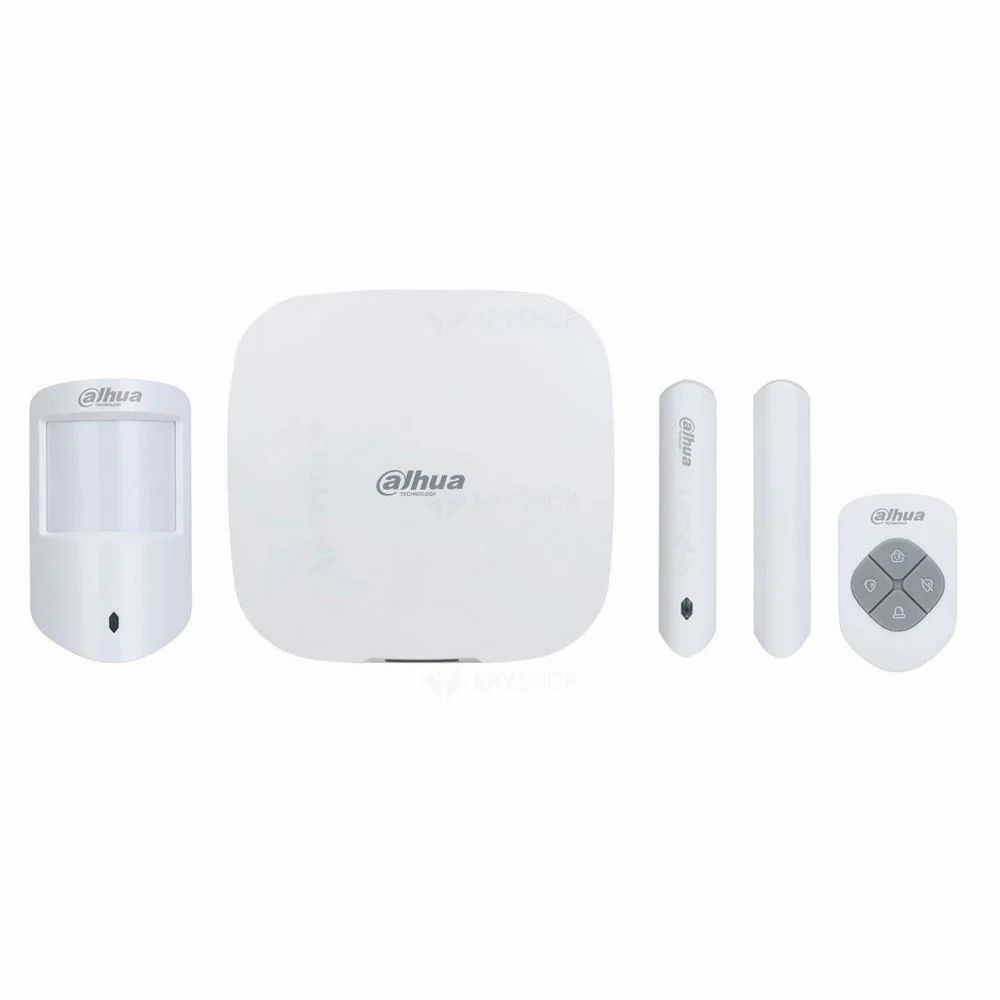

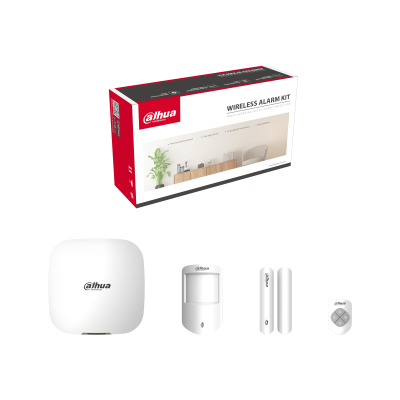

Dahua Wireless Kit ART-ARC3800H-03-FW2

Rs. 19,360.00

~~Rs. 22,385.00~~ Rs. 19,360.00

Sale Sold out

Overview

The Dahua ART-ARC3800H-03-FW2 Wireless Alarm Kit is an advanced wireless intrusion alarm solution designed for residential, commercial, retail, and industrial applications. The system supports Ethernet, Wi-Fi, and 4G cellular communication with dual SIM capability, ensuring reliable alarm transmission and uninterrupted protection.

Featuring two-way wireless communication, AES128 encryption, frequency hopping technology, video verification, voice call and SMS notifications, and support for up to 150 wireless peripherals, the ARC3800H delivers comprehensive security management with remote monitoring and control through the DMSS mobile application.

Key Features

✔ Supports up to 150 wireless peripherals

✔ Ethernet, Wi-Fi and 4G LTE communication with dual SIM support

✔ Supports up to 8 IP cameras (IPC) on the same LAN for video verification

✔ Two-way voice intercom with compatible intercom sirens

✔ AES128 encryption with frequency hopping technology

✔ Supports voice call alarms and SMS notifications

✔ Supports up to 64 keyfobs and 256 MIFARE cards

✔ Built-in 4750mAh rechargeable lithium battery backup

✔ Mobile app remote management and instant alarm notifications

✔ Video linkage and alarm video upload support

✔ Scheduled arm/disarm and multiple control methods

Why Choose Dahua ART-ARC3800H-03-FW2?

Reliable Triple-Network Communication

Supports Ethernet, Wi-Fi, and 4G LTE connectivity with dual SIM backup for continuous alarm reporting even during network interruptions.

Advanced Video Verification

Connect up to 8 Dahua IP cameras for alarm video verification, helping users quickly identify and respond to security events.

Scalable Security Platform

Supports up to 150 wireless peripherals including detectors, sirens, repeaters, keypads, PIR cameras, and keyfobs.

Enhanced Security Protection

Two-way wireless communication, AES128 encryption, and frequency hopping technology ensure secure and reliable operation.

Remote Monitoring & Control

Manage arming, disarming, notifications, users, and alarm events remotely through the DMSS mobile application.

Long Backup Runtime

The built-in 4750mAh rechargeable lithium battery provides up to 12 hours of backup operation during power outages.

Technical Specifications

Feature	Specification
Communication Modes	Ethernet, Wi-Fi, 4G LTE Cellular
Network Port	1 × RJ45 10/100 Mbps Ethernet Port
Wireless Device Capacity	150 Wireless Peripherals
Supported Sirens	Up to 6 Wireless Sirens
Supported Keyfobs	Up to 64 Keyfobs
Supported Keypads	Up to 8 Keypads
Supported Repeaters	Up to 4 Repeaters
MIFARE Card Support	Up to 256 Cards
Video Input	Up to 8 IP Cameras (IPC)
Voice Functions	Two-Way Voice Intercom
Encryption	AES128
Communication Type	Two-Way Wireless Communication
Frequency Hopping	Supported
Wireless Frequency	433.1 MHz – 434.6 MHz
Battery Type	Built-in Rechargeable Lithium Battery
Battery Capacity	4750 mAh
Backup Time	Up to 12 Hours
Voice Call Alerts	Supported
SMS Notifications	Supported
Storage	Offline Cache for Up to 50 Alarm Messages
User Management	33 App Users + 32 Keypad Users
Event Logs	Up to 5,000 Records
Installation	Desktop Mount or Wall Mount
Operating Temperature	-10°C to +55°C
Operating Humidity	10% – 90% RH
Dimensions	174.8 × 174.8 × 38.3 mm
Weight	510 g
Power Supply	100–240 VAC, 50/60Hz
