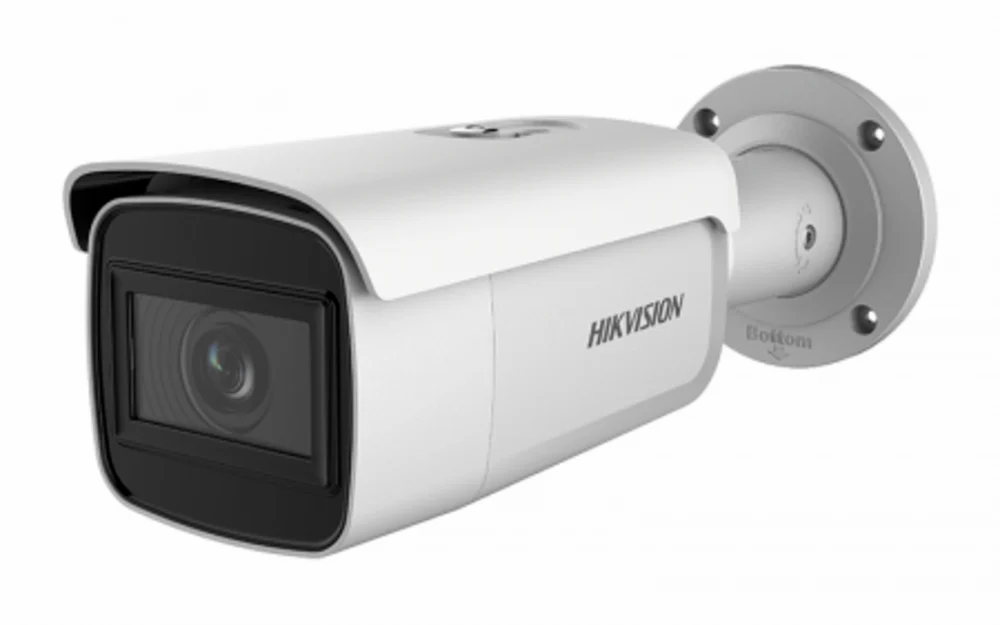

DS-2CD2623G1-IZ(S)

Camera

• Image Sensor - 1/2.8" Progressive Scan CMOS
• Min. Illumination - Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed - 1/3 s to 1/100,000 s
• Slow Shutter - Yes
• Wide Dynamic Range - 120dB
• Day & Night - IR Cut Filter
• Angle Adjustment - Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Focus - Auto
• Lens Type - 2.8 to 12 mm，Motorized
• FOV - horizontal FOV: 110° to 31°,vertical FOV: 58° to 18°,diagonal FOV: 136° to 36°
• Aperture - F1.6
• Lens Mount - Φ14
• Aperture Type - Fixed

Illuminator

• IR Range - Up to 50 m
• Wavelength - 850nm

Video

• Max. Resolution - 1920 × 1080
• Main Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub Stream - 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream - 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
• Video Compression - Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• Video Bit Rate - 32 Kbps to 16 Mbps
• H.264 Type - Main Profile/High Profile
• H.265 Type - Main Profile
• H.264+ - Main stream supports
• H.265+ - Main stream supports
• Scalable Video Coding (SVC) - H.264 and H.265 encoding

Audio

• Audio Compression - G722.1/G.711/G726/MP2L2/PCM/MP3
• Audio Bit Rate - 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Network

• Simultaneous Live View - Up to 6 channels
• API - ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• Protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/Host - Up to 32 users,3 levels: Administrator, Operator and User
• Security - Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network Storage - Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• Client - iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
• Web Browser - Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm Trigger - Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

• Image
• Day/Night Switch - Day/Night/Auto/Schedule/Triggered by alarm in
• Target Cropping - No
• DNR3D DNR
• Image Enhancement - BLC/3D DNR/HLC
• Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

• Video Output - 1Vp-p composite output(75Ω) (For adjustment only)
• On-Board Storage - Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware Reset - Yes
• Communication Interface - 1 RJ45 10M/100M self-adaptive Ethernet port

Event

• Basic Event - Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event - Line crossing detection, intrusion detection, face detection

• General
• Linkage Method - Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Web Client Language - 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General Function - Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup And Operating Conditions - -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply - 12 VDC ± 25%, terminal block,PoE (802.3at, class 4)
• Power Consumption And Current - 12 VDC, 1.2A, max. 14.5W,PoE (802.3at, 42.5V to 57V), 0.43A to 0.3A, max. 18W
• Camera Dimension - Φ 144.13 × 332.73 mm (Φ 5.7" × 13.1")
• Camera Weight - Camera: Approx. 1740 g (3.8 lb.),With Package: Approx. 2610 g (5.8 lb.)

Approval

• Protection - IP67
