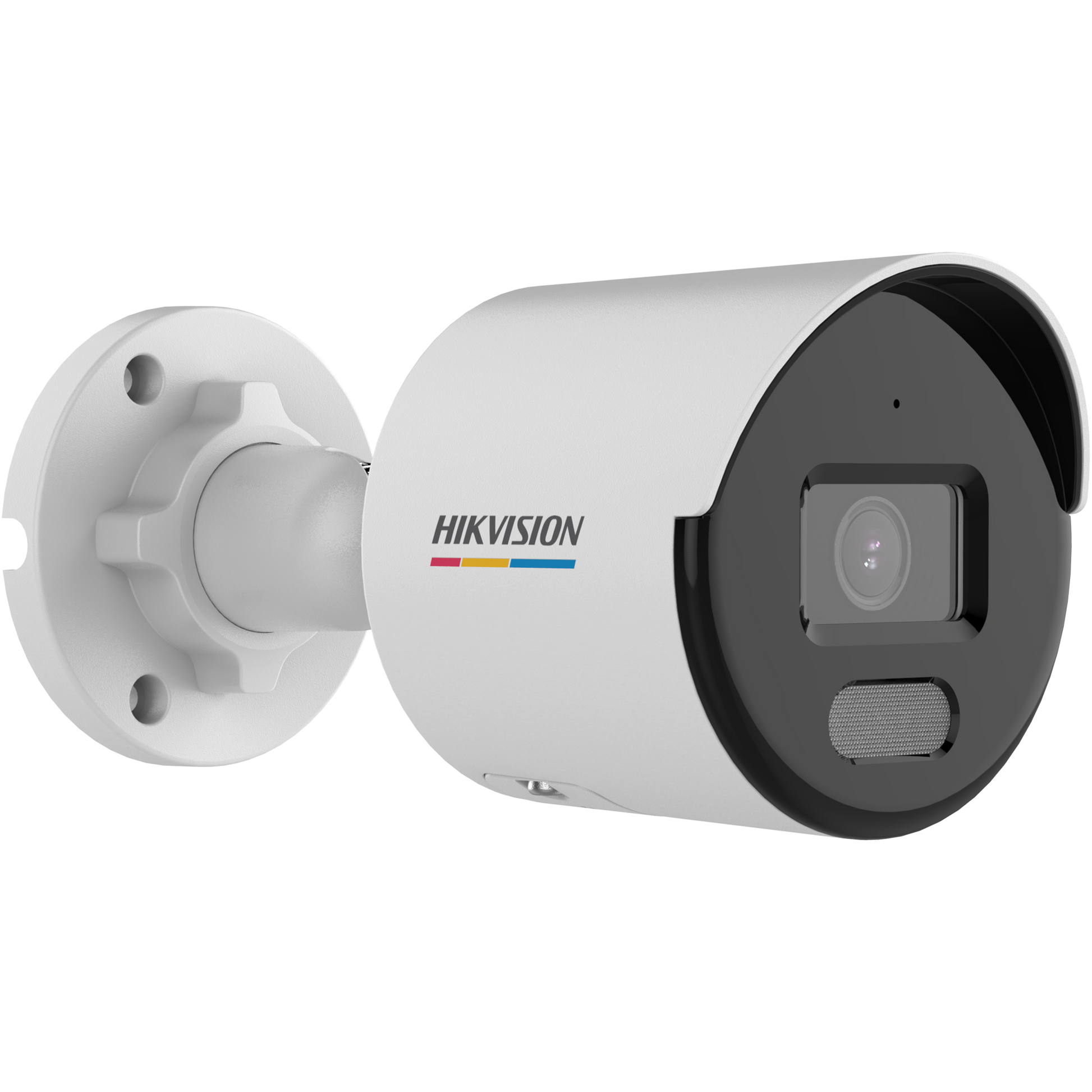

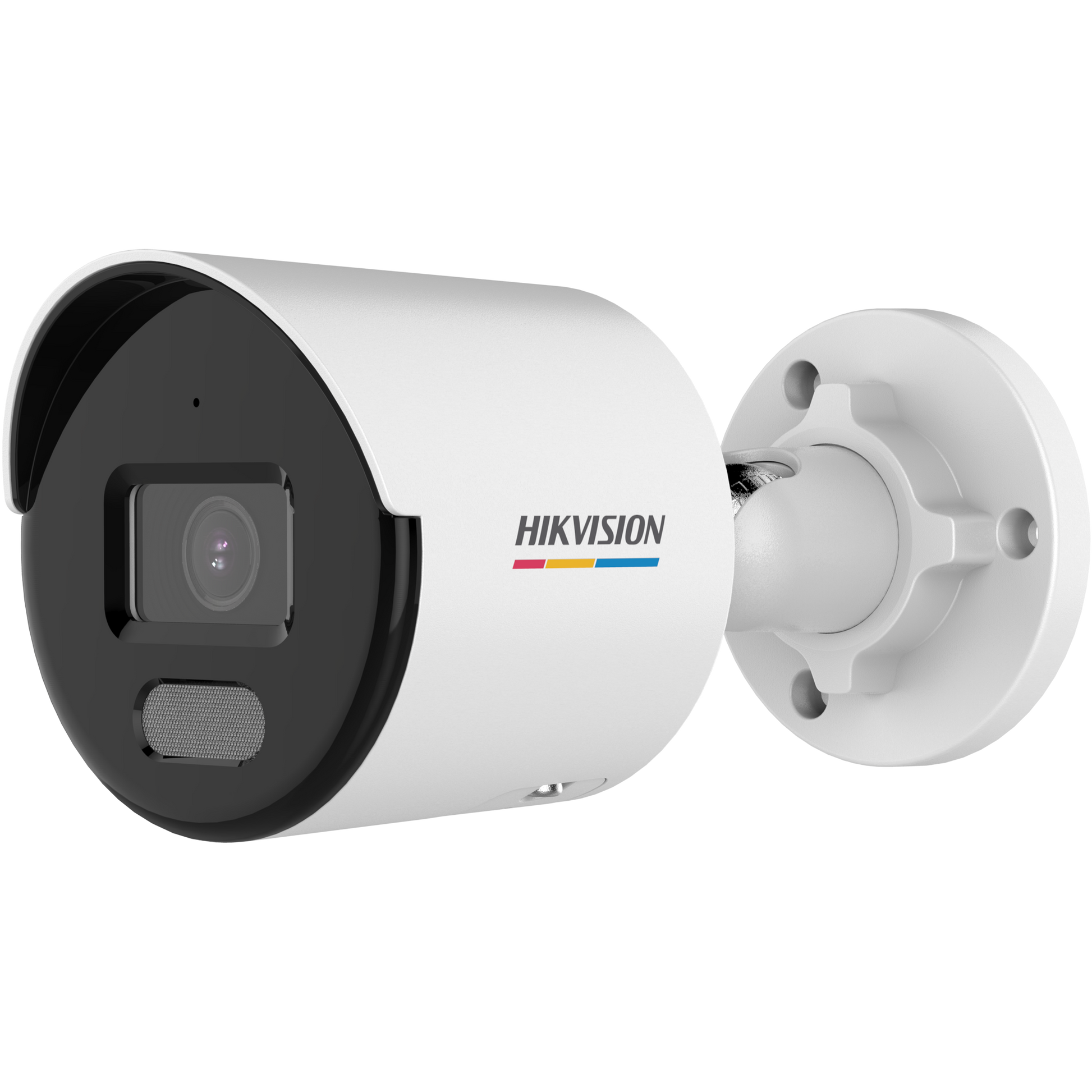

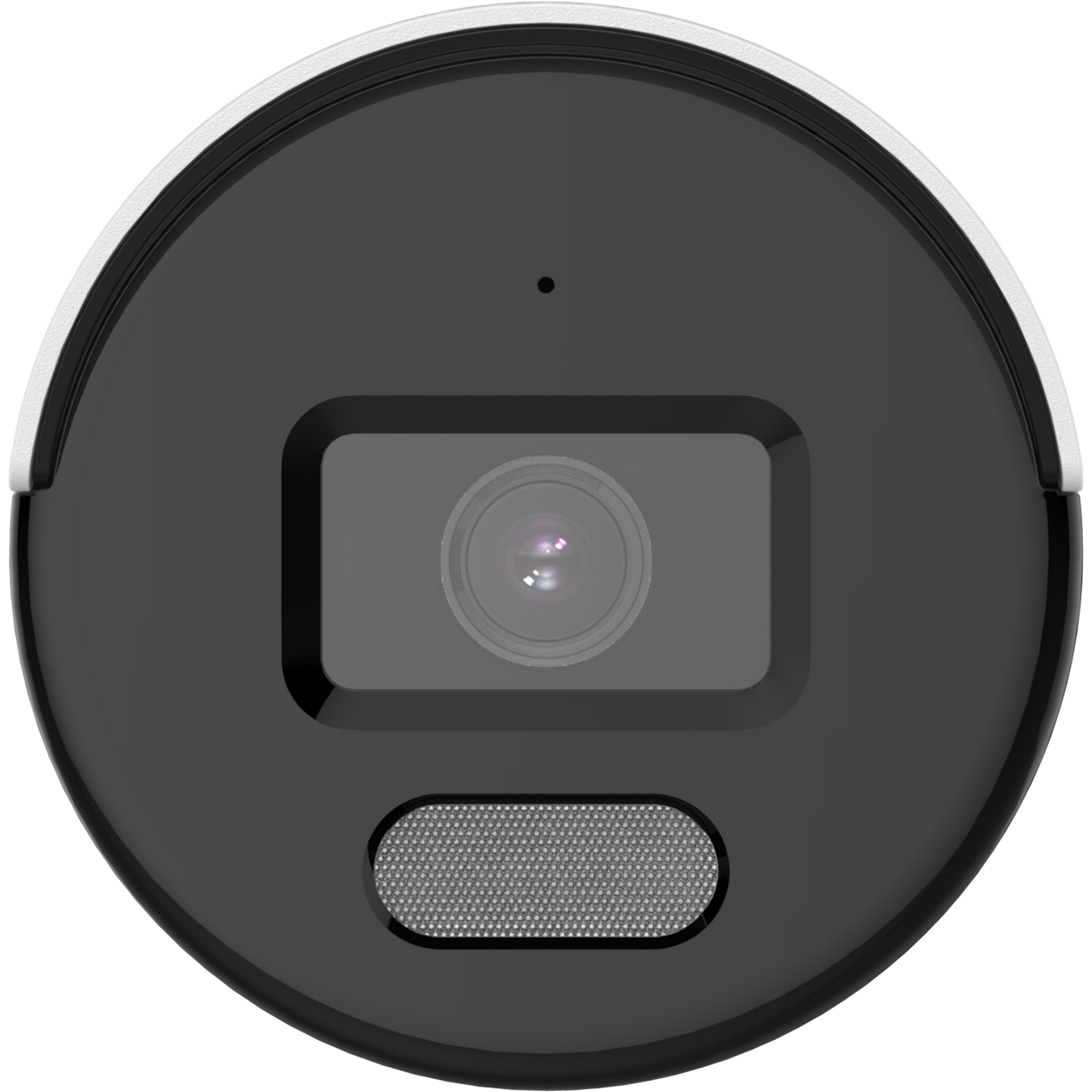

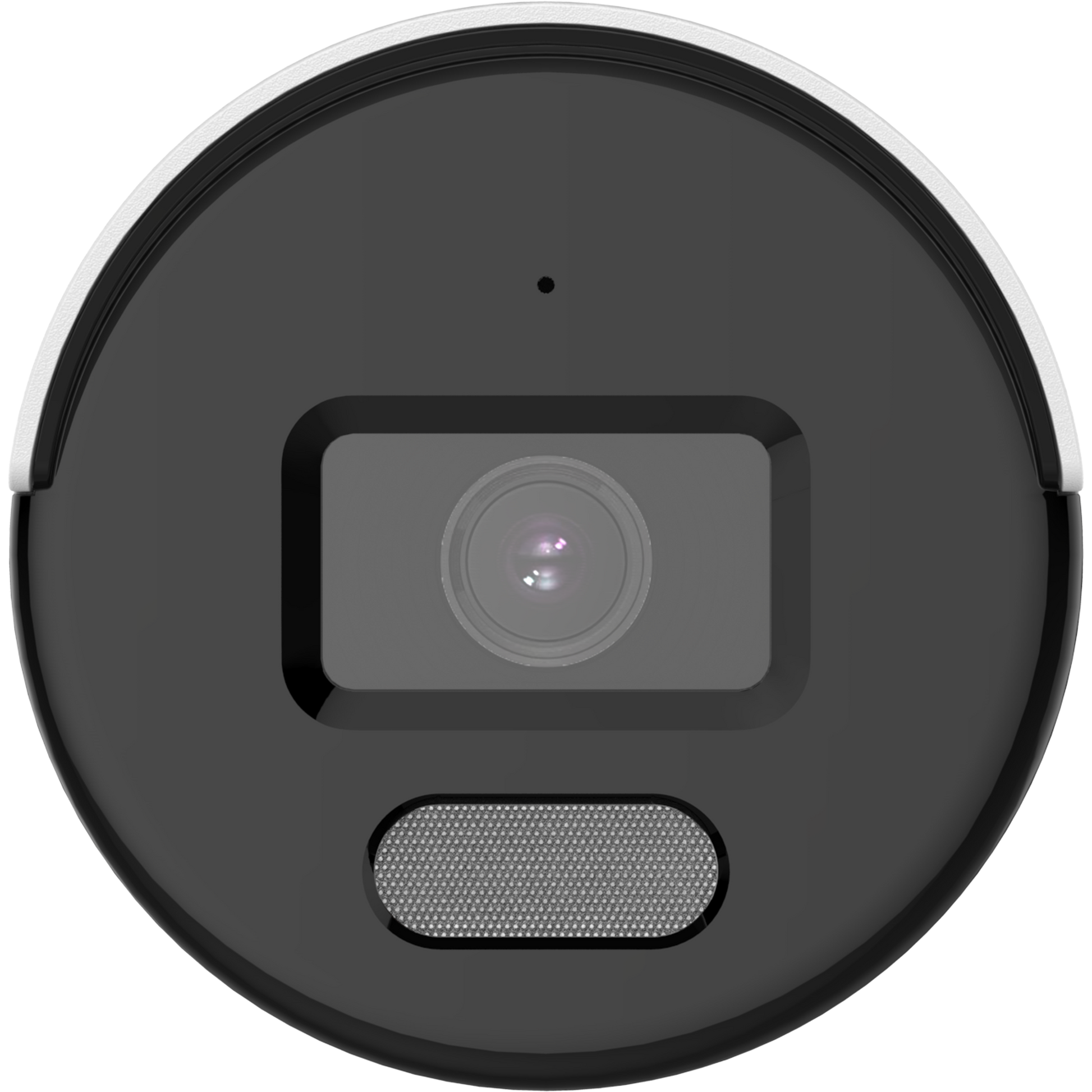

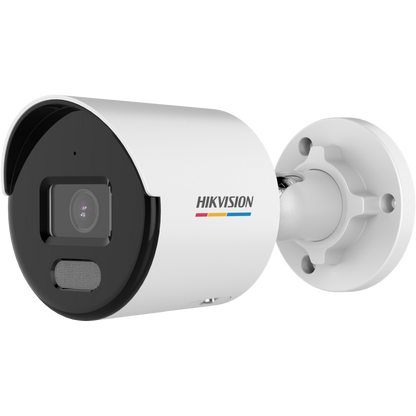

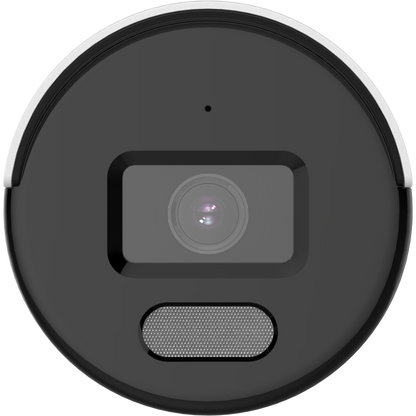

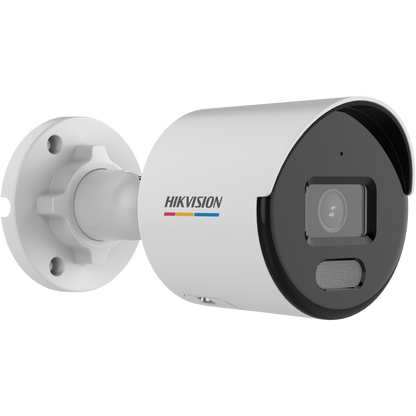

DS-2CD3047G0E-LU

DS-2CD3047G0E-LU

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out

Camera

  • Image Sensor - 1/1.8" Progressive Scan CMOS
  • Min. IlluminationColor: - 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Speed - 1/3 s to 1/100,000 s
  • Slow Shutter - Yes
  • P/N - P/N
  • Wide Dynamic Range - 130 dB
  • Angle AdjustmentPan: -  0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°


Lens

  • Lens Type - Fixed focal lens, 2.8, 4, and 6 mm optional
  • Iris Type - Fixed
  • Lens Mount - M16
  • Focal Length & FOV - 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°

DORI

  • 2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 2 m
  • 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m
  • 6 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m


Illuminator

  • Supplement Light Type - White Light
  • White Light Range - Warm white LEDs (3000 K) Up to 40 m
  • Smart Supplement Light - Yes

Video

  • Max. Resolution - 2592 × 1944
  • Main Stream - 50Hz: 20 fps (2592 × 1944)

    25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

    60Hz: 20 fps (2592 × 1944)

    30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

  • Sub-Stream - 50 Hz: 25 fps (640 × 480, 640 × 360)

    60 Hz: 30 fps (640 × 480, 640 × 360)

  • Third Stream - 50Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

    60Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

  • Fourth Stream - 50Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

    60Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

    *Fourth stream is supported under certain settings.

  • Video Compression - Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

    Fourth stream: H.265/H.264/MJPEG

    *Fourth stream is supported under certain settings.

  • Video Bit Rate - 32 Kbps to 8 Mbps
  • H.264 Type - Baseline Profile/Main Profile/High Profile
  • H.265 Type - Main Profile
  • H.264+ -Main stream supports
  • H.265+ - Main stream supports
  • Bit Rate Control - CBR/VBR
  • Scalable Video Coding (SVC) - H.264 and H.265 encoding
  • Region Of Interest (ROI) - 5 fixed regions for main stream and sub-stream

Audio

  • Environment Noise Filtering - Yes
  • Audio Sampling Rate - 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression - G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate - 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

  • Simultaneous Live View - Up to 6 channels
  • API - Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • Protocols - TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP
  • User/Host - Up to 32 users. 3 user levels: administrator, operator and user
  • Security - Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network Storage - MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • Clienti - VMS-4200, Hik-Connect, Hik-Central
  • Web Browser - Plug-in required live view: IE 10+

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+


  • SNR - ≥ 52 dB
  • Day/Night Switch - Auto, Schedule
  • Target Cropping - Yes
  • Image Enhancement - BLC, HLC, 3D DNR
  • Image Parameters Switch - Yes
  • Image Settings - Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interface

  • Alarm - 1 input, 1 output (max. 12 VDC, 30 mA)
  • Ethernet Interface - 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Audio - 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium;

    1 output (line out), max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium,mono sound

  • On-Board Storage - Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
  • Hardware Reset - Yes
  • Power Output12 VDC, max. 100 mA (supported by all power supply types)

Event

  • Basic Event - Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart Event - Unattended baggage detection, object removal detection, scene change detection, audio exception detection

Deep Learning Function

  • Face Capture - Yes
  • Perimeter Protection n - Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

  • Linkage Method - Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning
  • Firmware Version - V5.5.112
  • Web Client Language - 33 languages - English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General Function - Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Software Reset - Yes
  • Storage Conditions -  -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions -  -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply - 12 VDC ± 25%

    PoE: 802.3af, Type 1, Class 3

  • Power Consumption And Current - 12 VDC, 0.6 A, max. 7 W

    PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 8.5 W

  • Power Interface - Ø5.5 mm coaxial power plug
  • Camera Dimension - 78.8 mm × 78.6 mm × 235.9 mm (3.1" × 3.1" × 9.3")
  • Package Dimension - 315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
  • Camera Weight - Approx. 860 g (1.9 lb.)
  • With Package Weight - Approx. 1250 g (2.8 lb.)

Approval

  • EMC- FCC SDoC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC VoC (ICES-003: Issue 6, 2016);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety - UL (UL 60950-1);

    CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

    BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

    LOA (IEC/EN 60950-1)

  • Environment - CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

    Reach (Regulation (EC) No 1907/2006)

  • Protection - IP67 (IEC 60529-2013)
