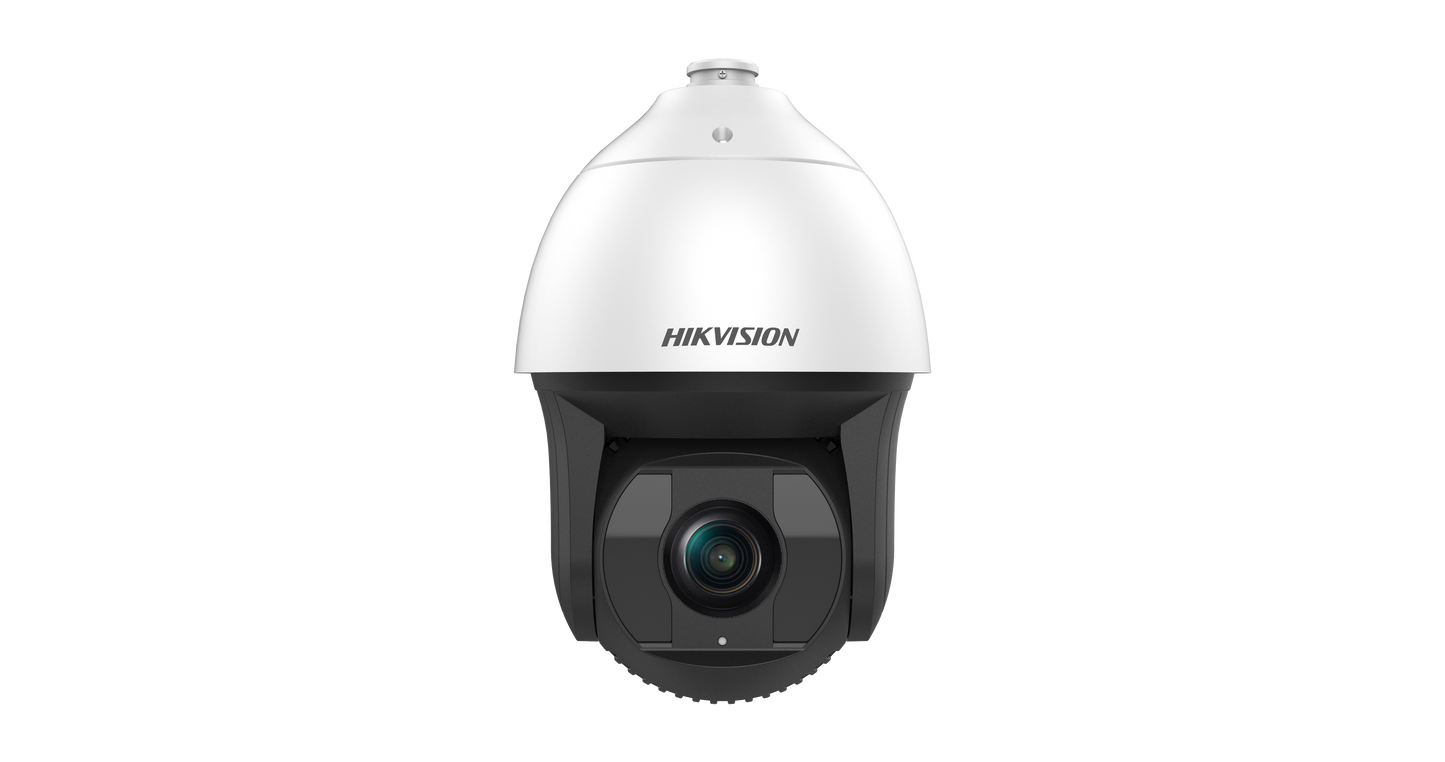

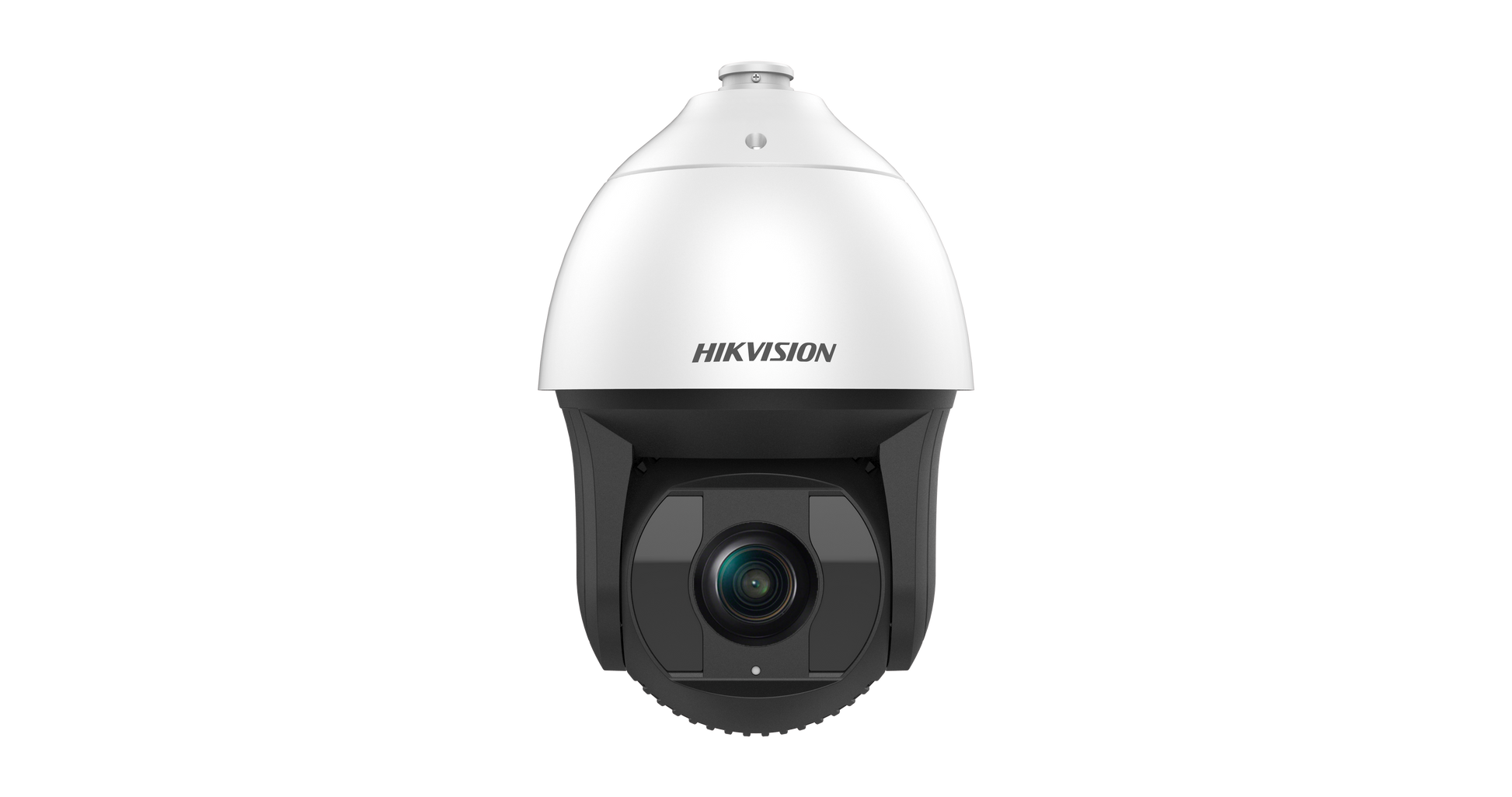

DS-2DF8242IX-AEL

Lens

• Zoom Speed - Approx.4.8 s (optical lens, wide-tele)
• Working Distance - 10 mm to 1500 mm (wide-tele)
• Aperture Range - F1.5 to F4.5
• Focal Length - 5.7 mm to 239.4 mm, 42× Optical
• Field Of View - Horizontal field of view: 59.8-1.7° (wide-tele), Vertical field of view: 33.6-1.1° (wide-tele), Diagonal field of view: 68.6-2.0° (wide-tele)

Network

• Network Storage - Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
• Protocols - IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
• API - ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
• Simultaneous Live View - Up to 20 channels
• User/Host - Up to 32 users. 3 levels: Administrator, Operator and User
• Security Measures - User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm Linkage - Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
• Max. Resolution - 1920 × 1080
• Main Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream - 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream - 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• SVC - Yes

IR

• IR Distance - 400 m
• Smart IR - Yes

Camera Module

• 3D DNR - Yes
• Regional Exposure - Yes
• Regional Focus - Yes
• Image Sensor - 1/1.8" progressive scan CMOS
• Min. Illumination - Color: 0.002 Lux @(F1.5, AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON), 0 lux with IR
• White Balance - Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Gain - Auto/Manual
• Shutter Time - 50Hz: 1/1 s to 1/30,000 s, 60Hz: 1/1 s to 1/30,000 s
• Day & Night - IR Cut Filter
• Digital Zoom - 16×
• Privacy Mask - 24 programmable polygon privacy masks, mask color or mosaic configurable
• Focus Mode - Auto/Semi-automatic/Manual
• WDR - 120 dB
• BLC - Yes
• HLC - Yes
• Optical Defog - Yes
• EIS - Yes
• Rapid Focus - Yes

PTZ

• Movement Range (Pan) - 360° endless
• Pan Speed - Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
• Movement Range (Tilt) - From -20° to 90°
• Tilt Speed - Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
• Proportional Zoom - Yes
• Presets - 300
• Patrol Scan - 8 patrols, up to 32 presets for each patrol
• Pattern Scan - 4 pattern scans, record time over 10 minutes for each scan
• Power-Off Memory - Yes
• Park Action - Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• 3D Positioning - Yes
• PTZ Status Display - Yes
• Preset Freezing - Yes
• Scheduled Task - Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Smart Features

• Smart Tracking - Manual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
• Smart Record - ANR (Automatic Network Replenishment), Dual-VCA
• ROI - dynamic face tracking,fixed region,dynamic license plate tracking
• Perimeter Protection - Intrusion, Line Crossing, Region Entrance, Region Exiting, Support alarm triggering by specified target types (human and vehicle), Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
• Event Detection - Unattended Baggage Detection, Object Removal Detection, Audio Exception Detection
• Video Compression - Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264/MJPEG, Third Stream: H.265/H.264/MJPEG,
• H.264 Type - Baseline Profile/Main Profile/High Profile
• H.264+Yes
• H.265 Type - Main Profile
• H.265+ - Yes
• Audio Compression - G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

System Integration

• Client - iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web Browser - IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+, Safari 11+
• Alarm - 7-ch alarm input/2-ch alarm output
• Audio - 1-ch audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1-ch audio output line level, impedance: 600Ω
• Network Interface - 1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
• CVBS - Yes
• RS-485 - HIKVISION, Pelco-P, Pelco-D, self-adaptive

General

• Dimensions - Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
• Approx. 8 kg (17.64 lb)
• Protection Level - IP67 Standard, IK10 (only supported by camera without wiper), 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power - 24 VAC (Max. 60 W, including max. 18 W for IR and max. 6 W for heater), Hi-PoE (Max. 50 W, including max. 18 W for IR and max. 6 W for heater)
• Language (Web Browser Access ) - 32 languages. English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Working Environment - Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 90%
