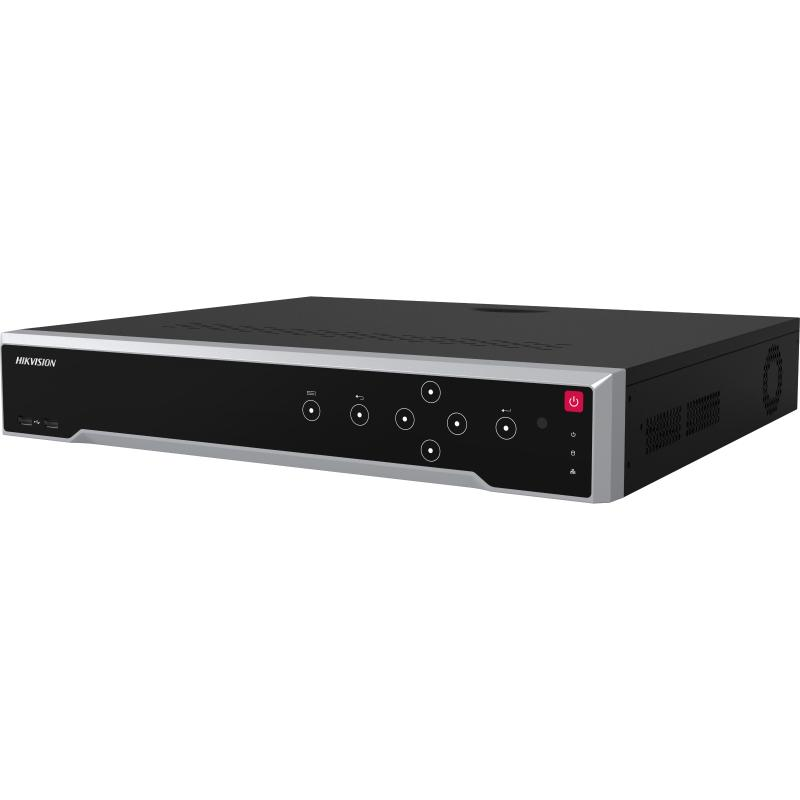

DS-7732NI-K4

Video And Audio

• IP Video Input - 32-ch
• Incoming Bandwidth - 256 Mbps
• Outgoing Bandwidth - 160 Mbps
• HDMI Output - 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output - 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio Output - 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio - 1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

• Decoding Format - H.265/H.265+/H.264+/H.264/MPEG4
• Recording Resolution - 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback - 16-ch
• Decoding Capability - 2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

Network

• Network Protocol - TCP/IP, DHCP, IPv4, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP,

  SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

• Network Interface - 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Auxiliary Interface

• SATA - 4 SATA interfaces
• Capacity - Up to 6TB capacity for each HDD
• Serial Interface - 1 RS-485 (half-duplex), 1 RS-232, 1 keyboard (optional)
• USB Interface - Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out - 16/4

General

• Power Supply - 100 to 240 VAC, 50 to 60Hz, 1 A
• Consumption - ≤ 20 W
• Working Temperature - -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity - 10 to 90 %
• Dimension (W × D × H) - 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") ≤ 5 kg (11. lb)
