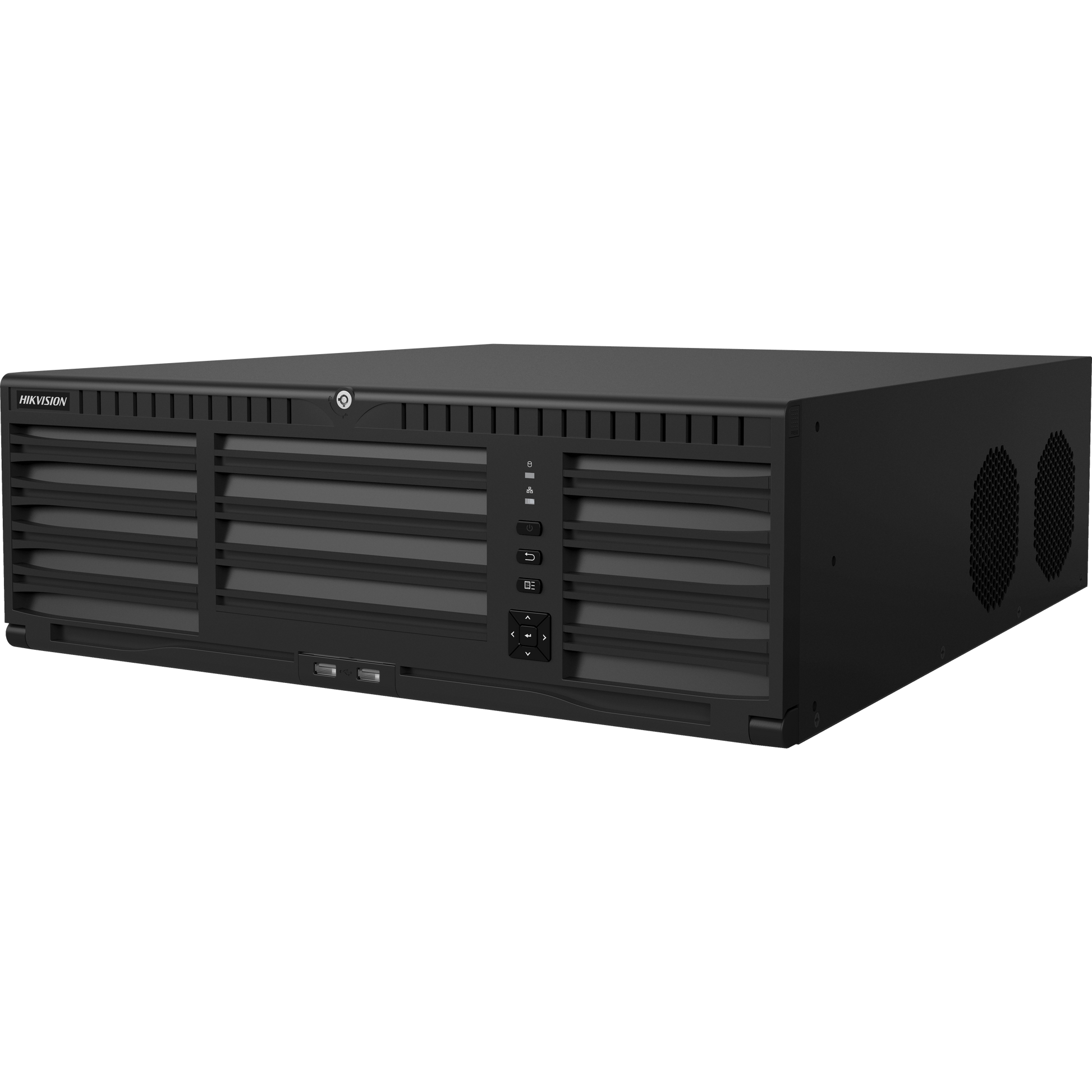

DS-96128NI-I16

Video And Audio

• IP Video Input - 128-ch
• Incoming Band width (RAID Mode) - 576 Mbps
• Outgoing Band width - 512 Mbps
• Incoming Bandwidth - 576 Mbps
• Outgoing Bandwidth (RAID Mode) - 512 Mbps
• TLS Outgoing Bandwidth - 128 Mbps, or 64 Mbps (when RAID is enabled)
• HDMI Output - Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
• VGA Output - 1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz
• LCD Output - Optional: One 7 inch LCD
• Audio Output - 1-ch. RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio - 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

• Decoding Format - H.265, H.265+, H.264, H.264+,MPEG4, MJPEG (for Hikvision IP camera only)
• Recording Resolution - 12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback - Up to 16 channels
• Decoding Capability - 3-ch@12 MP (30fps), 5-ch@8 MP (30fps), 6-ch@6 MP (30fps), 10-ch@4 MP (30fps), 20-ch@1080p (30 fps)

Network

• Network Protocol - IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
• Camera Access Protocol - HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO
• Network Interface - 4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

PoE

• Interface - 16 SATA interfaces supporting hot-plug

RAID

• RAID TypeRAID0, RAID1, RAID5, RAID 6, and RAID10

Auxiliary Interface

• SATA - 2 × mini SAS interface (optional)
• ESATA - 1 × eSATA interface
• Capacity - Up to 10 TB for each HDD
• Serial Interface - RS-232; RS-485; Keyboard
• USB Interface - Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
• Alarm In/Out - 16/8
• Extension Board - One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module), eight RS-485 interfaces, and alarm interface of 32 alarm inputs and 16 alarm outputs.

General

• Power Supply - 100 to 240 VAC, 50 to 60Hz, 5 A
• Consumption - ≤ 140W
• Working Temperature - 0 °C to + 50 °C (32 °F to 122 °F)
• Working Humidity - 10% to 90%
• Dimension (W × D × H) - 442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch) ≤ 16 kg (35.3 lb)
