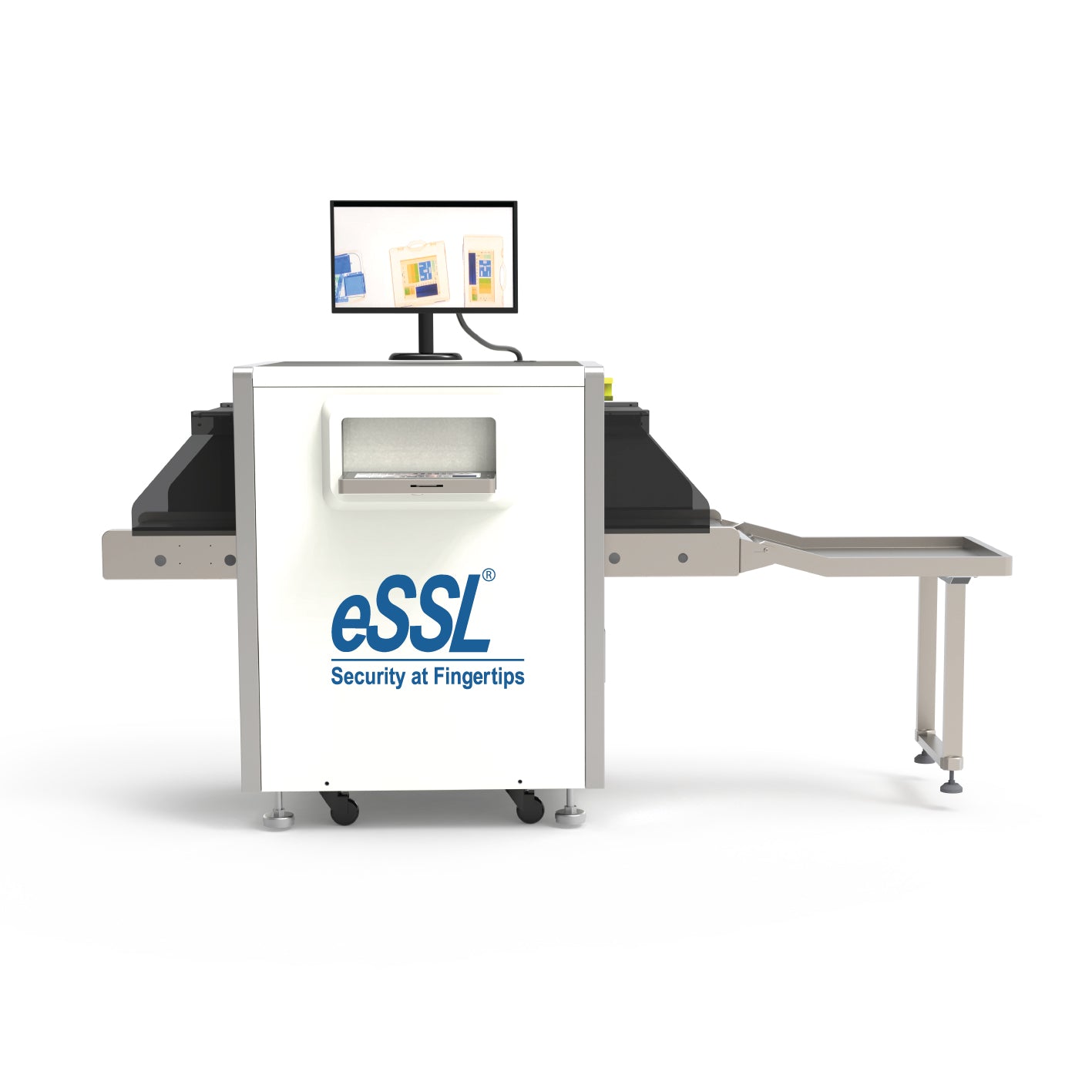

eBS-5030A Single Energy X-Ray Baggage Scanner

The eBS-5030A Single Energy X-Ray Baggage Scanner is an advanced security screening solution designed for rapid and non-intrusive inspection of baggage, parcels, and small cargo. Using X-ray penetration technology, the system creates high-quality images that enable operators to detect prohibited items such as weapons, explosives, and other dangerous materials without the need for manual searches. It is an ideal security solution for airports, government facilities, courts, schools, logistics centers, hotels, and commercial establishments.

Key Features

500 × 300 mm inspection tunnel
Single-energy X-ray imaging technology
10 mm steel penetration capability
High-resolution 19-inch color LCD display
24-bit L-shaped photodiode array detector
Real-time image storage of up to 100,000 images
Multiple image enhancement and analysis modes
LAN connectivity with multi-terminal support
One-key safe shutdown system
Automatic self-diagnosis and maintenance alerts

Product Advantages

Fast and non-intrusive baggage screening
Excellent image quality and enhancement features
Safe for films, chips, and electronic products
Low radiation leakage and high safety standards
Easy operation and maintenance
Suitable for continuous security operations

Technical Specifications

Specification	Details
Model	eBS-5030A
Tunnel Size	500 mm × 300 mm (W × H)
Conveyor Speed	0.22 m/s
Conveyor Maximum Load	150 kg
Single Inspection Dose	< 1.32 μGy
Leakage Radiation	< 0.06 μGy/h
Wire Resolution	40 AWG (0.0787 mm Metal Wire)
Steel Penetration	10 mm Steel Plate
Film Safety	Suitable for ISO 1600 Film
Product Weight	410 kg
Package Dimensions	1810 × 910 × 1450 mm

X-Ray Generator Specifications

Specification	Details
Tube Orientation	Upward
Tube Current	0.4 – 0.7 mA (Adjustable)
Anode Voltage	80 kV (Adjustable)
X-Ray Divergence Angle	60°
Cooling System	Sealed Oil Bath with Forced Air Cooling
Operating Direction	Bidirectional (Optional and Customizable)

Operating Environment

Parameter	Specification
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 60°C
Relative Humidity	20% to 95% RH (Non-Condensing)
System Power	220 VAC (±10%), 50 ±3 Hz
Power Consumption	1.0 kW (Maximum)
Noise Level	< 65 dB

X-Ray Sensor Technology

Specification	Details
X-Ray Sensor	L-Shaped Array Detector, 24-bit Single Energy
Image Storage	100,000 Images in Real Time (Customizable)
Operating System	Windows-Based System
Image Output	Color, Black & White, Negative, High/Low Penetration, Organic/Inorganic Display
