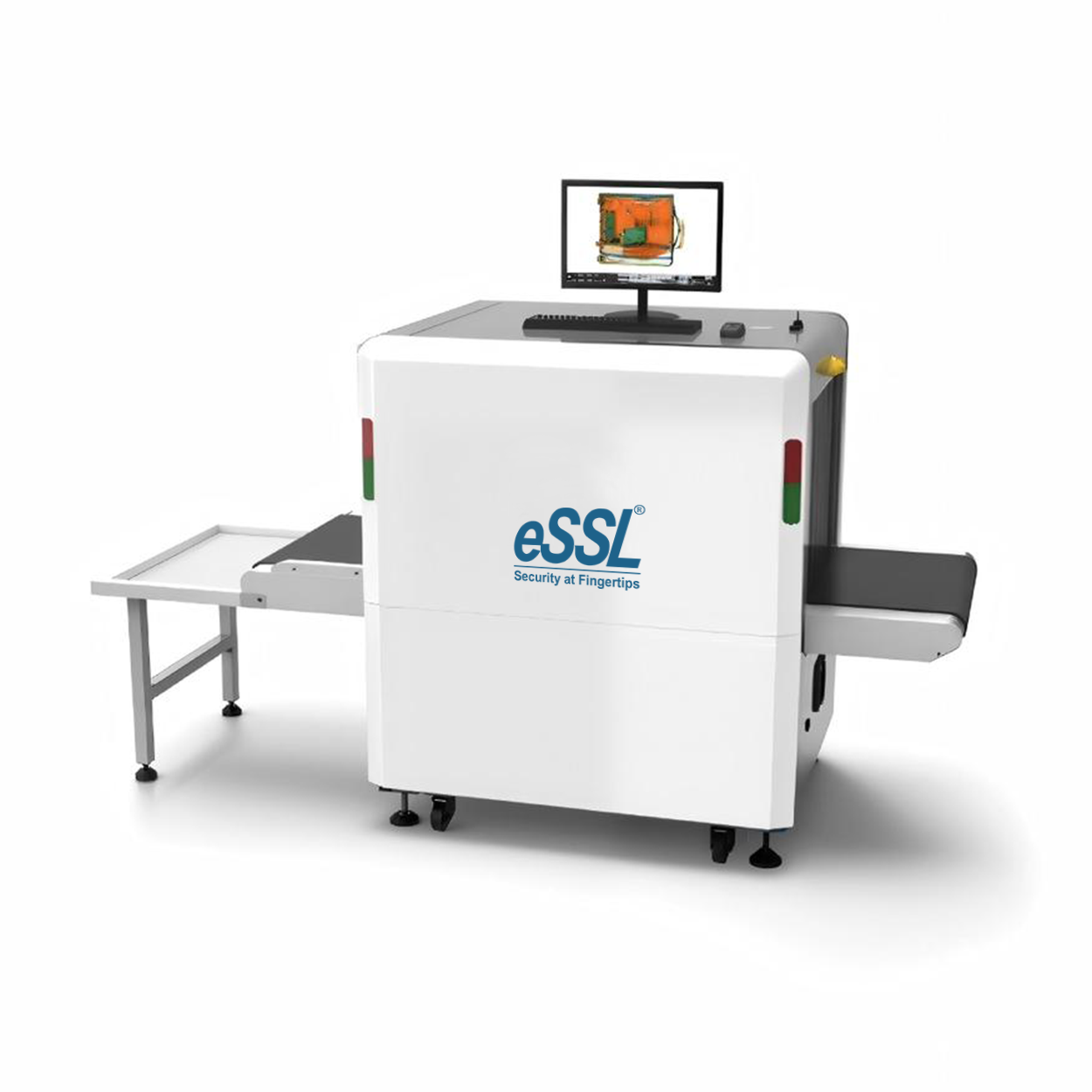

eSSL eBS-5030A-N X-Ray Baggage Scanner – 50x30cm Tunnel Security

📞 Call 9315441078 for Best Price

eBS-5030A-N X-Ray Security Inspection Equipment

The eBS-5030A-N X-Ray Security Inspection Equipment is an advanced security screening solution designed to perform rapid and non-intrusive inspections of baggage, parcels, and cargo. Utilizing high-performance X-ray penetration technology, the system provides clear imaging, efficient threat detection, and safe operation for a wide range of security applications. It is ideal for government facilities, transportation hubs, logistics centers, courts, schools, hospitals, embassies, and public venues.

Key Features

500 × 300 mm inspection tunnel
High-definition 21.5-inch Full HD display
12 mm steel penetration capability
High-resolution imaging with AWG38 wire resolution
Fast and non-intrusive baggage screening
Compact design suitable for limited spaces
Safe for films, chips, and electronic products
Low radiation leakage with advanced protection
Simple and user-friendly operating interface
Easy to operate and maintain

Product Advantages

Rapid security screening with high imaging accuracy
Excellent radiation safety protection
Compact footprint and easy installation
Reliable operation for continuous security inspections
Suitable for a wide range of public and commercial facilities
Designed for efficient baggage and parcel inspection

Technical Specifications

Specification	Details
Model	eBS-5030A-N
Channel Size	500 mm × 300 mm (W × H)
Device Dimensions	1475 × 784 × 1100 mm (L × W × H)
Equipment Weight	220 kg
Conveyor Height	660 mm from Ground
Conveyor Speed	0.22 m/s
Display Size	21.5-inch LCD Monitor
Display Resolution	1920 × 1080 Full HD
Line Resolution	AWG38 (Φ0.102 mm)
Spatial Resolution	1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration	12 mm Steel Plate
Power Consumption	500 W
Power Supply	AC220V, 50Hz
Noise Level	< 55 dB (Measured at 1 Meter)

X-Ray Generator Specifications

Specification	Details
X-Ray Source	80 kV – 100 kV, 0.5 mA
Imaging Technology	Advanced X-Ray Penetration Technology
Inspection Method	Non-Intrusive Baggage and Parcel Screening

Radiation Safety

Parameter	Specification
Leakage Radiation	< 0.5 µSv/h at 50 mm from Device Housing
Single Inspection Dose	< 5 µGy/h
Safety	Safe for Film, Chips and Electronic Products

Operating Environment

Parameter	Specification
Operating Temperature	5°C to 40°C
Operating Humidity	10% to 90% RH (Non-Condensing)
Storage Temperature	-20°C to 40°C
Storage Humidity	0% to 90% RH (Non-Condensing)
