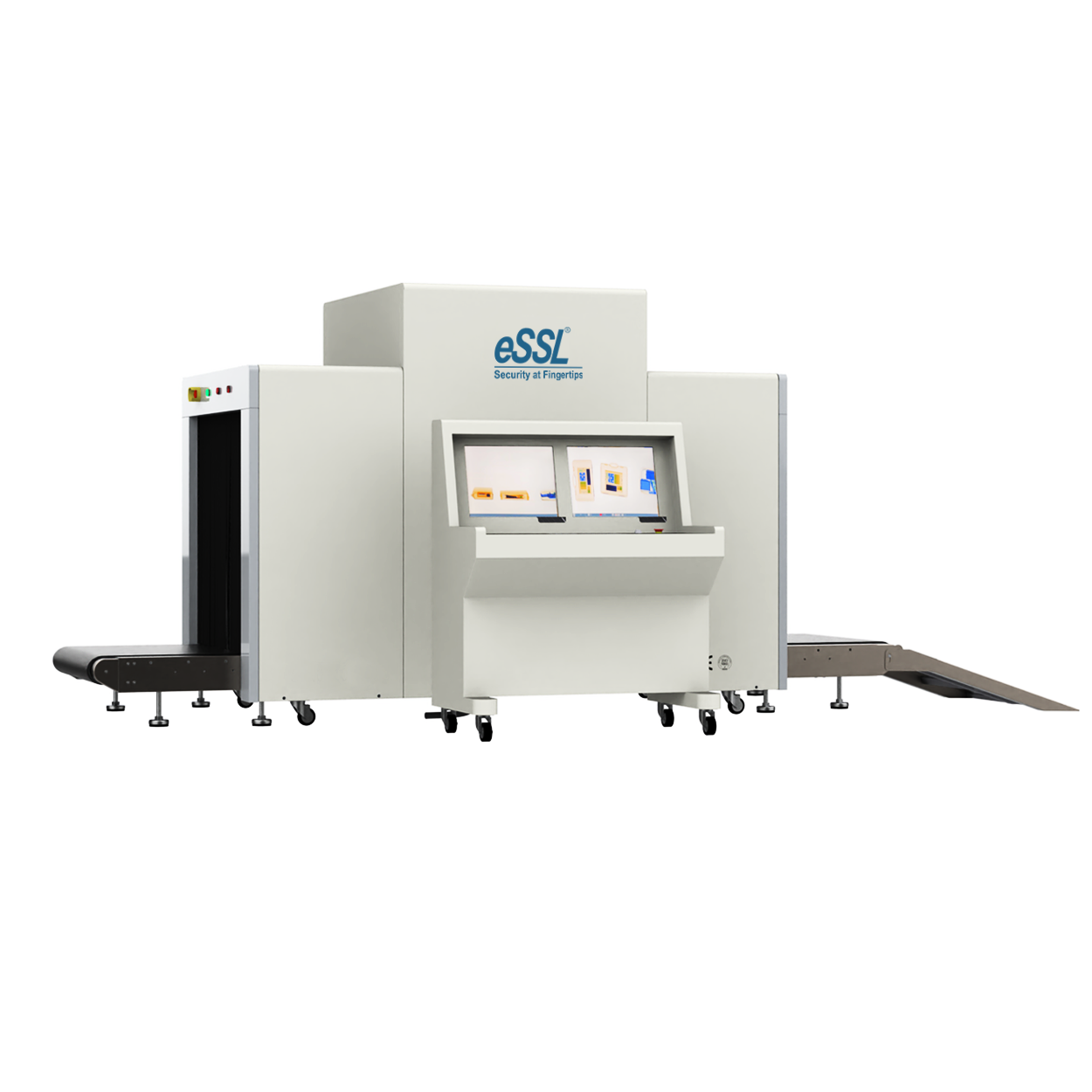

eSSL eBS100100C X-Ray Baggage Scanner – 100x100cm Tunnel Security

Rs. 2,328,320.00

~~Rs. 2,793,984.00~~ Rs. 2,328,320.00

Sale Sold out

eBS100100C X-Ray Baggage Scanner

The eBS100100C is a high-performance X-ray baggage inspection system designed for large luggage and cargo screening applications. Featuring a spacious 1000 × 1000 mm tunnel size, dual high-resolution monitors, advanced image processing technology, and high steel penetration capability, the scanner provides efficient and reliable security screening for airports, logistics centers, public venues, courts, prisons, hotels, and large commercial facilities.

Key Features

Large 1000 × 1000 mm inspection tunnel
300 kg conveyor load capacity
38 mm steel penetration capability
38 AWG wire resolution
Dual 19-inch high-resolution LCD monitors
24-bit true color imaging technology
64x image enlargement and continuous observation
Real-time storage of up to 100,000 images
LAN connectivity with multi-terminal monitoring support
Automatic self-diagnosis and maintenance alerts

Technical Specifications

Specification	Details
Model	eBS100100C
Tunnel Size	1000 (W) × 1000 (H) mm
Conveyor Speed	0.22 m/s
Maximum Conveyor Load	300 kg
Single Inspection Dosage	< 1.6 μGy
Leakage Radiation	< 3.0 μGy/h
Wire Resolution	38 AWG
Steel Penetration	38 mm
Film Safety	For ISO 1600 Film
X-Ray Sensor	L-Shaped Array Detector, 24-bit
Display	Dual 19-inch High-Resolution LCD Monitors
Color Quality	24-Bit Real Colors Based on Materials
Contrast Sensitivity	24 Visible Levels, 4096 Gray Levels
Image Storage	100,000 Images (Customizable)

X-Ray Generator Specifications

Specification	Details
Generator Orientation	Downward
Tube Current	1.0 ~ 1.5 mA (Adjustable)
Anode Voltage	150 – 200 kV
X-Ray Divergence Angle	80°
Cooling System	Sealed Oil Bath with Forced Air Cooling
Duty Cycle	100% Continuous Operation

Image Processing Functions

Pseudo-color and black & white image display
24-bit real-color imaging based on material composition
High penetration display for dense objects
Low penetration display for difficult-to-penetrate objects
Edge enhancement for improved object visibility
64x image zoom and full-screen continuous observation
Zoom in and zoom out functionality
Display and process the previous 20 images
Image restore to initial status
Brightness and contrast adjustment
Real-time image replay and review function

Operating Environment

Parameter	Specification
Operating Temperature	0°C to +45°C
Storage Temperature	-20°C to +60°C
Relative Humidity	20% to 95% RH (Non-Condensing)
System Power	220VAC (±10%), 50 ±3Hz
Maximum Power Consumption	1.0 kW
Noise Level	< 58 dB
