eBS5030A-N

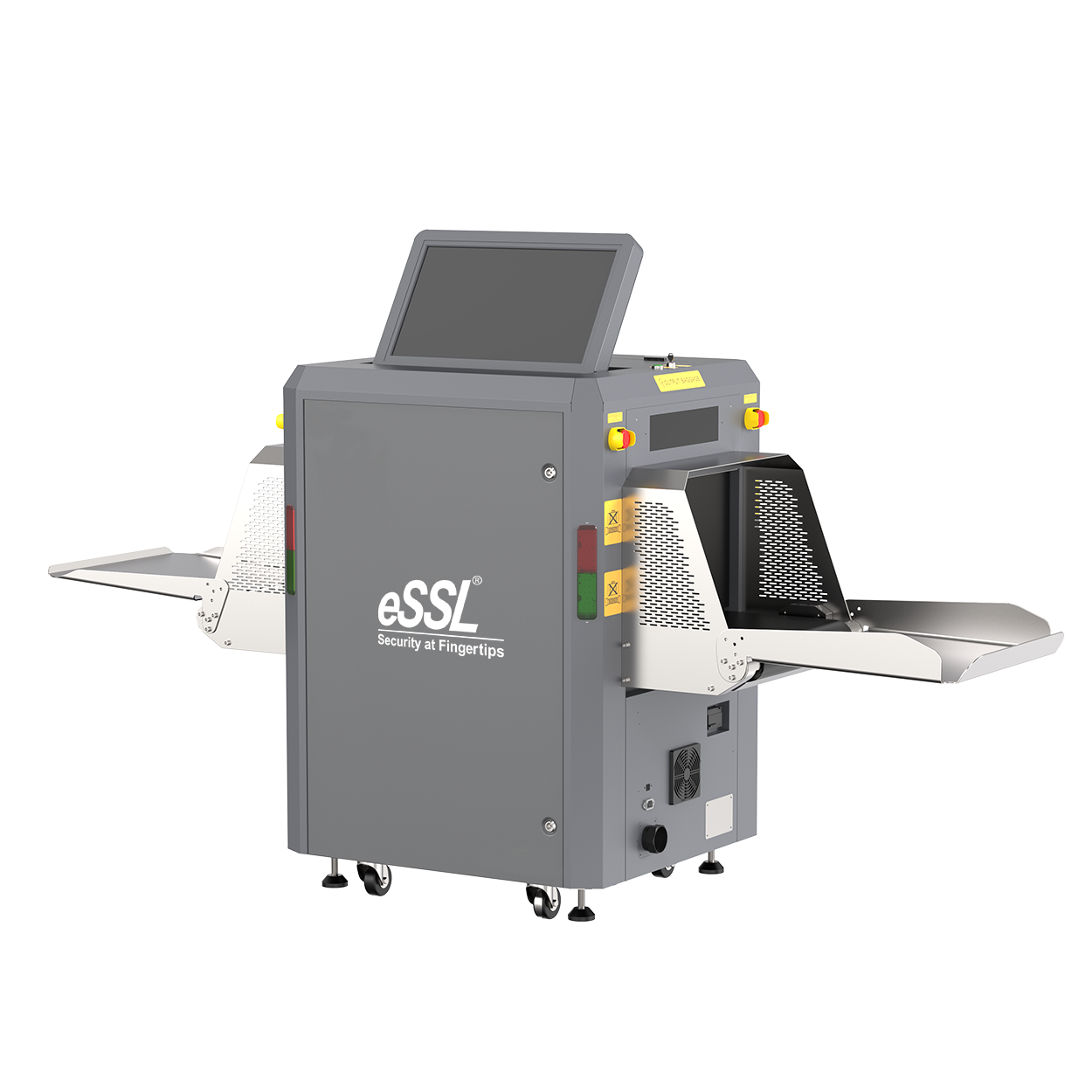

The eSSL eBS5030A-N Single Energy X-Ray Baggage Scanner is a professional security inspection system for baggage, parcels, and luggage in high-security environments such as airports, railway stations, malls, and commercial buildings. It uses a single energy X-ray source for clear transmission imaging and advanced image processing, offering accurate detection of threats while meeting radiation safety standards for operators and the public. The modular digital design and comprehensive system functions make it reliable and easy to maintain.

Key Highlights

• X-Ray Source: 80 KV single energy X-ray for efficient penetration.
• Tunnel Size: 500 mm (W) × 300 mm (H) scanning aperture.
• Display: 21.5″ touchscreen LCD with 1920 × 1080 resolution.
• Radiation Safety: Low leakage dose (< 0.5 μGy/h) and single inspection dose ≤ 2.5 μGy.
• Robust Design: Stable modular hardware and strong anti-interference performance.

Features

• Modular Design: Internal modular circuitry improves stability and simplifies maintenance.
• Digital Processing: Fully digital ASIC system with enhanced anti-interference and clear image output.
• Advanced Imaging Functions: Colorful/black & white display, local enhancement, high/low penetration imaging, organic/inorganic discrimination, inversion, brightening, darkening, and image restoration.
• System Controls: Automatic self-diagnosis, multi-level user management, image and record management, multi-format export, remote operation software, and one-click shutdown.

Scan Output Preview

• Color Material Mapping: Distinguishes organic, inorganic, and mixed materials using color management.
• Image Logging: Stores scanned images with date and time for review.
• Threat Detection Aids: Displays counters and status notifications for X-ray and IR generators.
• Energy-Saving Mode: Standby mode when idle to reduce power consumption.

Technical Specifications

The eSSL eBS5030A‑N Single Energy X‑Ray Baggage Scanner is a professional security inspection system for baggage, parcels, and luggage in high‑security environments such as airports, railway stations, malls, and commercial buildings. It uses a single energy X‑ray source for clear transmission imaging and advanced image processing, offering accurate detection of threats while meeting radiation safety standards for operators and the public. The modular digital design and comprehensive system functions make it reliable and easy to maintain.

Key Highlights

• X‑Ray Source: 80 KV single energy X‑ray for efficient penetration.
• Tunnel Size: 500 mm (W) × 300 mm (H) scanning aperture. :contentReference[oaicite:0]{index=0}
• Display: 21.5″ touchscreen LCD with 1920 × 1080 resolution. :contentReference[oaicite:1]{index=1}
• Radiation Safety: Low leakage dose (< 0.5 μGy/h) and single inspection dose ≤ 2.5 μGy. :contentReference[oaicite:2]{index=2}
• Robust Design: Stable modular hardware and strong anti‑interference performance. :contentReference[oaicite:3]{index=3}

Features

• Modular Design: Internal modular circuitry improves stability and simplifies maintenance. :contentReference[oaicite:4]{index=4}
• Digital Processing: Fully digital ASIC system with enhanced anti‑interference and clear image output. :contentReference[oaicite:5]{index=5}
• Advanced Imaging Functions: Includes colorful/black & white display, local enhancement, high/low penetration imaging, organic/inorganic discrimination, inversion, brightening, darkening, and image restoration. :contentReference[oaicite:6]{index=6}
• System Controls: Automatic self‑diagnosis, multi‑level user management, image & record management, multi‑format export, remote operation software, and one‑click shutdown. :contentReference[oaicite:7]{index=7}

Scan Output Preview

• Color Material Mapping: Uses color management to distinguish organic, inorganic, and mixed materials. :contentReference[oaicite:8]{index=8}
• Image Logging: Stores scanned images with date and time for review. :contentReference[oaicite:9]{index=9}
• Threat Detection Aids: Displays counters and status notifications for X‑ray and IR generators to assist operators. :contentReference[oaicite:10]{index=10}
• Energy‑Saving Mode: Standby mode when idle to reduce power consumption. :contentReference[oaicite:11]{index=11}

Technical Specifications
