eBS5030C-N

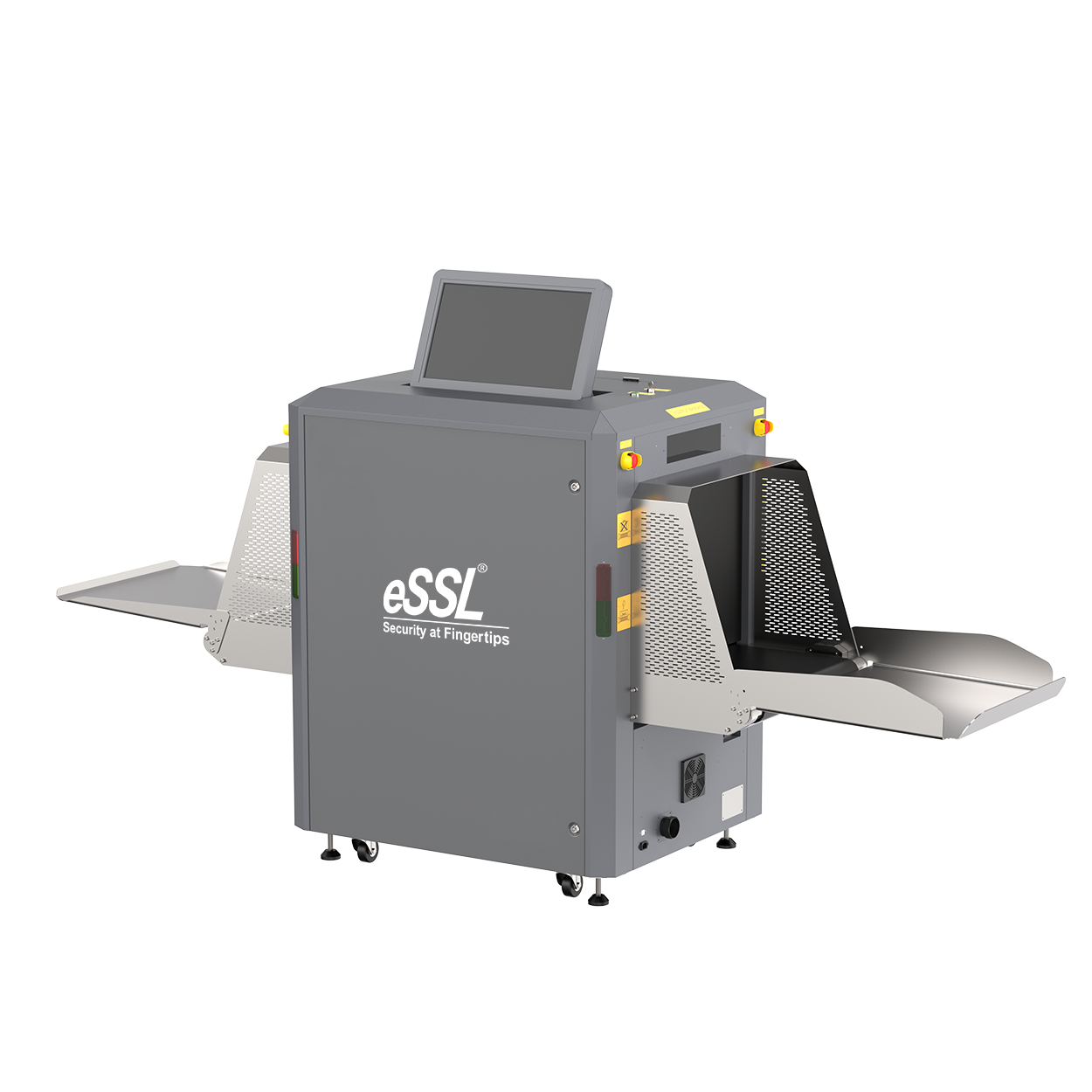

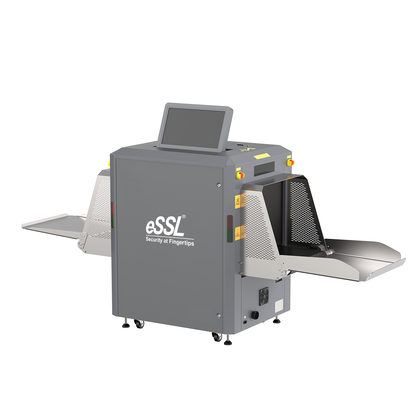

The eSSL eBS5030C‑N Dual Energy X‑Ray Baggage Scanner is a high‑performance security inspection system designed to detect prohibited and dangerous items within baggage, parcels, and luggage at airports, railway stations, shopping malls, and other high‑security environments. Featuring dual‑energy X‑ray imaging, powerful digital processing, and advanced image enhancement functions, the eBS5030C‑N delivers accurate, high‑resolution scanning with modular design for stable operation and easy maintenance.

Key Highlights

• Dual Energy X‑Ray Source: 140 KV for enhanced material discrimination and penetration.
• High-Resolution Imaging: Line resolution AWG 40 (Ø 0.0787 mm); spatial resolution 1.0 mm (horizontal) × 1.0 mm (vertical)
• Large Display: 21.5″ touchscreen LCD with 1920 × 1080 P resolution.
• Robust Construction: Stable modular design improves anti‑interference capability.
• Safety Compliance: Low radiation leakage and controlled single radiation dose.

Features

• Modular Design: Internal circuits adopt modular layout for stable performance and easy maintenance.
• Digital Processing: Fully digital ASIC design with strong anti‑interference and clear imaging.
• Customizable Modules: Optional AI intelligent image recognition and other functional modules.
• Advanced Image Processing: Supports color/black‑white, enhancement, organic/inorganic discrimination, inversion, brightening/darkening, grey scan, false colour, and image restoration.
• Comprehensive System Functions: Automatic self‑diagnosis, multi‑level user management, image management, TIP management, record checking, multi‑format export, remote operation software, and one‑click shutdown.

Scan Output Preview

• Material Differentiation: Differentiates organic, inorganic, and mixed materials using color codes for easy identification.
• Image Logging: Automatically logs scanned images with date and time for review and record keeping.
• 26‑Color Management: Offers 26 levels of color management for better image contrast and clarity.
• Multi‑Format Export: Allows exporting scanned images in multiple formats for reporting or audit purposes.

Technical Specifications
