eBS6040A

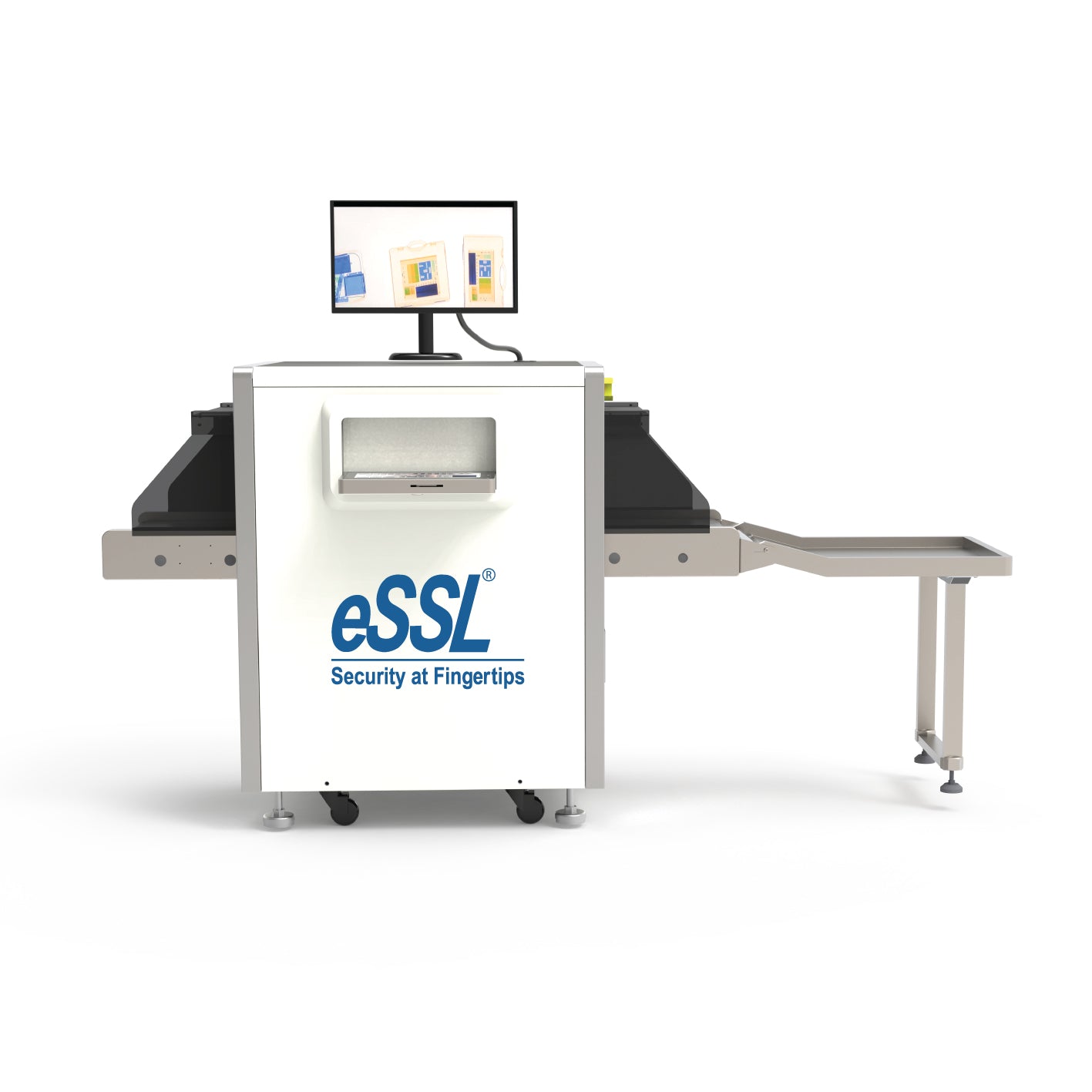

The eSSL eBS-6040A X-Ray Baggage Scanner is a high-performance single energy security inspection system designed for robust screening of medium to large luggage, parcels, and cargo at airports, railway stations, customs checkpoints, and high-security facilities. Featuring a large 600 mm × 400 mm tunnel, advanced 24-bit L-shaped array detector, and comprehensive image processing capabilities, the eBS-6040A delivers clear imaging, reliable material discrimination, and advanced operational functions with built-in safety and self-diagnosis features.

Key Highlights

• Tunnel Size: 600 mm (W) × 400 mm (H) for large baggage inspection.
• L-Shaped Detector: 24-bit high-resolution detector for detailed imaging.
• Low Radiation: Single inspection dose < 1.0 μGy; leakage radiation < 0.06 μGy/h.
• Steel Penetration: Up to 10 mm penetration capability.
• LAN Connectivity: Network interface supports multi-terminal baggage checks.

Features

• Self-Diagnosis: Automatic error detection and maintenance alerts.
• One-Key Shutdown: Key rotation for safe and convenient shutdown.
• Safety X-Ray Control: Automatic X-ray regulation for secure operation.
• Eagle Eye Operator View: Expedient observation of magnified areas.
• LAN Network Support: Connects to LAN for multi-terminal baggage checks.

Scan Output Preview

• Color Material Identification: Organic objects in orange, inorganic in blue, mixed in green.
• High/Low Penetration Display: Enhanced contrast for easy penetration area distinction.
• Magnifier Function: Partial magnification for detailed inspection.
• Image Storage: Real-time image archiving with restoration options.

Technical Specifications
