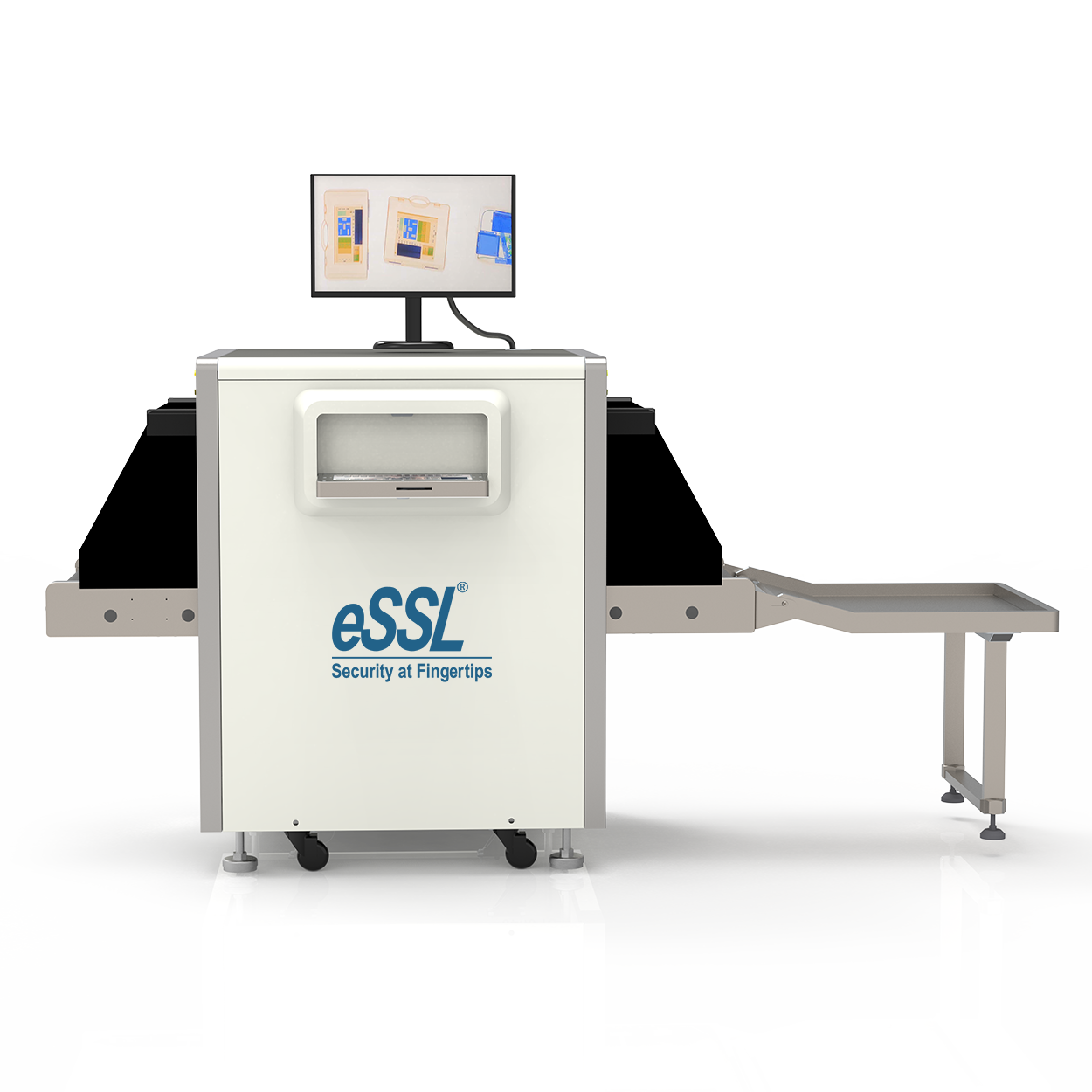

eSSL eBS6040C X-Ray Baggage Scanner – 60x40cm Tunnel Security

📞 Call 9315441078 for Best Price

eBS6040C X-Ray Baggage Scanner

The eBS6040C X-Ray Baggage Scanner is a high-performance security inspection system designed for fast and non-intrusive baggage screening. Equipped with advanced dual-energy X-ray imaging technology, superior penetration capabilities, and intelligent image processing functions, the system is ideal for airports, government buildings, logistics centers, factories, courts, schools, hospitals, and other high-security environments.

Key Features

600 × 400 mm inspection tunnel
39 mm steel penetration capability
Dual-energy X-ray imaging technology
High-resolution 19-inch color LCD display
Real-time image storage and playback
Advanced image enhancement and material discrimination
Multi-terminal network connectivity support
Automatic safety radiation control system
One-key shutdown function
Self-diagnosis and maintenance alert system

Product Advantages

Easy to operate and maintain
High-quality image processing capabilities
Safe for films and electronic devices
Reliable dual-energy detection technology
Excellent penetration and image clarity
Suitable for high-security screening applications

Technical Specifications

Specification	Details
Model	eBS6040C
Tunnel Size	600 mm × 400 mm (W × H)
Conveyor Speed	0.22 m/s
Conveyor Maximum Load	150 kg
Single Inspection Dose	< 1.0 μGy
Leakage Radiation	< 0.06 μGy/h
Wire Resolution	40 AWG (0.0787 mm Metal Wire)
Steel Penetration	39 mm Steel Plate
Film Safety	Suitable for ISO 1600 Film
Radiation Level at 5 cm	< 0.06 μGy/h

X-Ray Generator Specifications

Specification	Details
X-Ray Tube Orientation	Upward
Tube Current	0.6 – 1.0 mA (Adjustable)
Anode Voltage	160 kV
X-Ray Divergence Angle	80°
Cooling System	Sealed Oil Bath with Forced Air Cooling
Number of X-Ray Tubes	1

Operating Environment

Parameter	Specification
Operating Temperature	0°C to 45°C
Operating Humidity	20% to 95% RH (Non-Condensing)
Storage Temperature	-20°C to 60°C
Storage Humidity	20% to 95% RH (Non-Condensing)
System Power	220 VAC (±10%), 50 ±3 Hz
Power Consumption	1.0 kW (Maximum)
Noise Level	< 65 dB

Image Performance System

High-resolution 19-inch color LCD display
24-bit true color imaging based on material composition
Edge enhancement for clearer object contours
Super image enhancement for improved details
High penetration image display mode
Low penetration image display mode
Partial image magnifier function
Brightness and contrast adjustment
Image playback and restoration functions
Real-time image storage and processing

X-Ray Sensor Technology

Specification	Details
X-Ray Sensor	L-Shaped Array Detector, 24-bit Dual Energy
Multi-Energy Mode	Switchable High and Low Energy
Color Material Identification	Organic Objects in Orange, Inorganic Objects in Blue, Mixed Materials in Green
