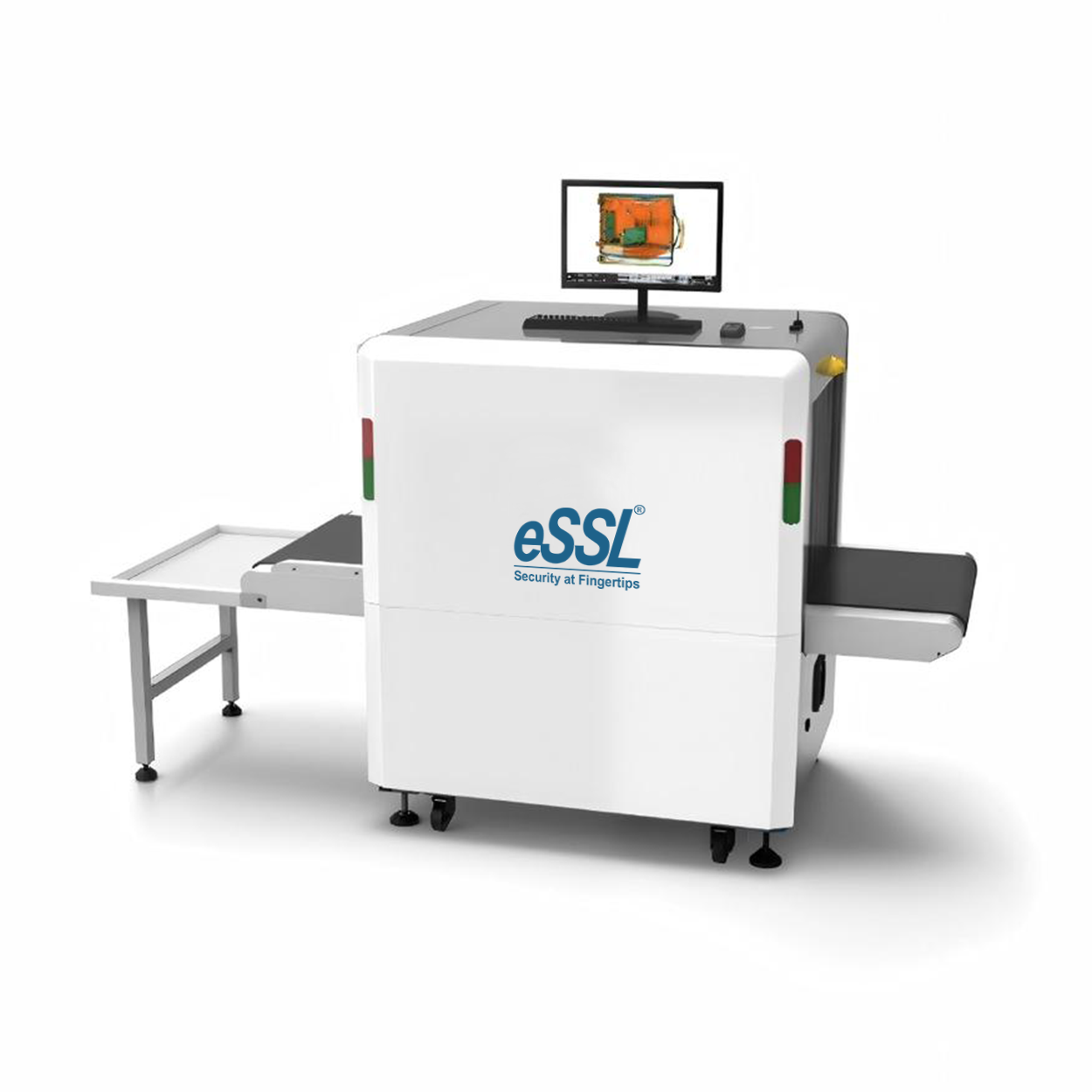

eSSL eBS6550C X-Ray Baggage Scanner – 65x50cm Tunnel Security

📞 Call 9315441078 for Best Price

eBS6550C X-Ray Baggage Scanner

The eBS6550C X-Ray Security Inspection System is an advanced baggage and cargo screening solution that uses X-ray penetration technology to perform rapid, non-intrusive inspections. Designed for high-security environments, the system provides superior image quality, deep penetration capabilities, and intelligent image processing features. It is ideal for government facilities, transportation hubs, logistics centers, courts, schools, hospitals, factories, and entertainment venues.

Key Features

650 × 500 mm inspection tunnel
High penetration capability up to 40 mm steel plate
Advanced ASIC full-digital imaging technology
21.5-inch Full HD display monitor
1x to 64x continuous image zoom
Modular architecture for easy maintenance and upgrades
AI-powered dangerous goods recognition support (optional)
Advanced image enhancement and material discrimination
Multi-level user and image management
Low radiation leakage and enhanced operational safety

Product Advantages

Easy to use and learn
Simple and user-friendly interface
Safe for film, chips, and electronic products
Stable operation with strong anti-interference capability
Expandable functionality through customizable modules

Technical Specifications

Specification	Details
Model	eBS6550C
Channel Size	650 mm × 500 mm (W × H)
Device Dimensions	1876 × 934 × 1300 mm (L × W × H)
Equipment Weight	300 kg
Conveyor Height	660 mm from Ground
Conveyor Speed	0.22 m/s
Display Size	21.5-inch LCD Monitor
Display Resolution	1920 × 1080 Full HD
Line Resolution	AWG38 (Φ0.102 mm)
Spatial Resolution	1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration	40 mm Steel Plate
Power Consumption	500 W
Power Supply	AC220V, 50Hz
Noise Level	< 55 dB (Measured at 1 Meter)

X-Ray Generator Specifications

Specification	Details
X-Ray Source	140 kV – 160 kV, 0.5 mA – 1.25 mA
Imaging Technology	ASIC Full-Digital Acquisition Technology
Image Processing	High Definition, Deep Acquisition Imaging

Radiation Safety

Parameter	Specification
Leakage Radiation	< 0.5 µSv/h at 50 mm from Device Housing
Single Inspection Dose	< 5 µGy/h
Safety	Safe for Film, Chips and Electronic Products

Operating Environment

Parameter	Specification
Operating Temperature	5°C to 40°C
Operating Humidity	10% to 90% RH (Non-Condensing)
Storage Temperature	-20°C to 40°C
Storage Humidity	0% to 90% RH (Non-Condensing)
