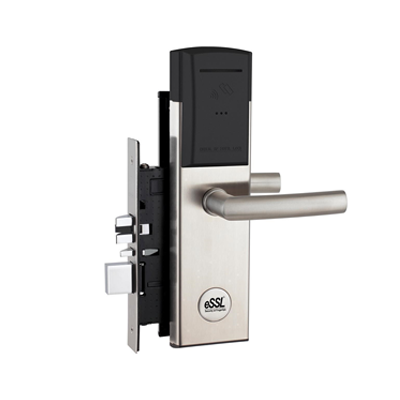

ELECTRONIC HOTEL LOCK eSSL HL-100

ELECTRONIC HOTEL LOCK eSSL HL-100 Technical Specifications

• Power Supply: Utilizes four 1.5V AA alkaline batteries
• Battery Placement: Located within the interior side of the lock
• Construction Material:
  • Handles: Crafted from high-grade SUS304 stainless steel
  • Lock Body: Made of SUS304 stainless steel for durability
• Finish Options: Available in Silver, Gold, and Matte Black
• Emergency Access: Features a mechanical cylinder for emergency unlocking
• Locking System: Incorporates an electro-mechanical locking mechanism for enhanced security
• Compatible Door Thickness: Suitable for doors with a thickness ranging from 35mm to 80mm, specifically designed for EURO mortise
• Software Integration: Compatible with BIS Hotel system software
• Temperature Tolerance:
  • Operational Range: Functions within a temperature range of -20°C to 60°C in non-condensing environments
  • Tested Temperature Range: Proven performance from -25°C to 70°C
• HL100-Hotel-Lock
•

ELECTRONIC HOTEL LOCK eSSL HL-100 Certifications

• Complies with EN14846 standard
• Fire safety certified as per EN 1634-1
• UL certified for fire safety on timber doors
• Adheres to the ISO 14443 standard (MIFARE Classic) for RFID technology

ELECTRONIC HOTEL LOCK eSSL HL-100 Features

• A standalone electronic lock leveraging RFID technology for secure access
• The high-security mortise lockcase is available in ANSI, AUS, and EURO versions, ensuring compatibility across different regions
• Features a robust stainless steel handle with a high-strength central spindle
• The lockcase includes a 3-point stainless steel latch construction equipped with an anti-friction mechanism, providing smooth operation and increased security

• ELECTRONIC HOTEL LOCK eSSL HL-100
