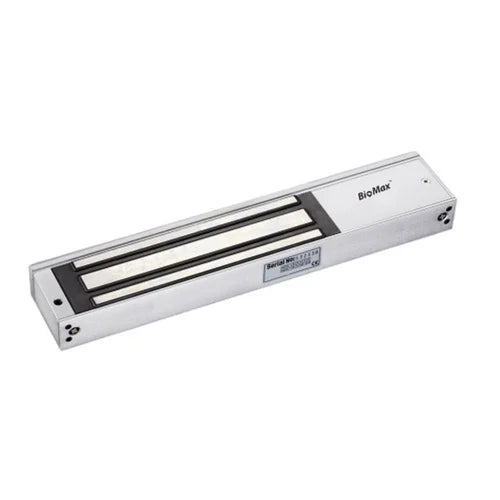

BioMax EM Lock EL-280GD Electromagnetic Lock
The BioMax EM Lock EL-280GD Electromagnetic Lock is a reliable and high-performance access control solution designed to provide secure locking for wooden, glass, aluminium, and fireproof doors. With a 600 lbs holding force, silent operation, and integrated Green/Red status indication, it delivers dependable security for offices, commercial buildings, educational institutions, hospitals, and industrial facilities. Featuring voltage and current spike protection along with request-to-open and auto-relock functionality, the EL-280GD ensures safe and efficient door access management.
Key Features
- 600 lbs electromagnetic holding force
- Green/Red LED status indication
- 12V DC operating voltage
- Low power consumption (400mA)
- Silent operation with no humming or buzzing
- Request-to-Open (RTE) support
- Auto-relock function if no action is taken
- Built-in voltage and current spike protection PCB
- No mechanical bolt design for enhanced reliability
- Suitable for wooden, glass, aluminium, and fireproof doors
- Zinc finish for improved durability
- Compatible with L, U and ZL mounting brackets
Why Choose BioMax EM Lock EL-280GD?
The BioMax EL-280GD combines strong magnetic holding force with maintenance-free operation, making it an ideal solution for modern access control systems. Its silent performance, integrated LED indication, surge protection PCB, and compatibility with multiple door types ensure dependable security for both new installations and existing access control projects.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | BioMax EM Lock EL-280GD |
| Lock Type | Electromagnetic Lock |
| Operating Voltage | 12V DC |
| Current Consumption | 400mA |
| Holding Force | 600 lbs |
| Magnet Dimensions | 250 × 47 × 26 mm |
| Armature Plate Dimensions | 250 × 47 × 26 mm |
| Finish | Zinc |
| Operating Humidity | 0% – 95% (Non-Condensing) |
| Suitable Doors | Wooden, Glass, Aluminium and Fireproof Doors |
| Optional Accessories | L Bracket, U Bracket, ZL Bracket, U Bracket for Glass Door |
Applications
- Office Buildings
- Commercial Complexes
- Educational Institutions
- Hospitals and Healthcare Facilities
- Banks and Financial Institutions
- Industrial Facilities
- Warehouses
- Hotels
- Government Offices
- Access Control and Security Systems
Benefits
- Provides reliable electromagnetic door locking
- Ensures secure access control with 600 lbs holding force
- Silent operation improves workplace comfort
- Integrated LED indicators simplify lock status monitoring
- Built-in surge protection enhances device reliability
- Compatible with multiple door materials and mounting options
- Maintenance-free design with no mechanical bolt
- Easy integration with biometric and RFID access control systems
- Long-lasting zinc finish resists corrosion
- Suitable for professional indoor security applications
