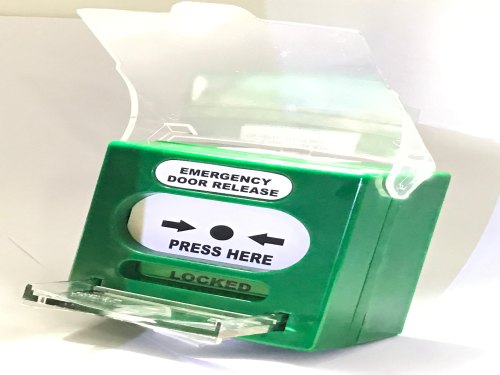

Emergency Door Release EDR

Introducing the Emergency Door Release EDR - the ultimate safety solution in case of emergencies. With its quick and easy activation, this device allows for immediate escape in critical situations. Feel secure knowing that you have a reliable and efficient emergency exit.

The Emergency Door Release is a robust and versatile safety device designed to provide immediate access control override during emergencies. Its resettable design ensures reusability after activation, making it ideal for various security systems.

Key Features

• Resettable Mechanism: Allows for quick restoration after activation without replacing components.

• Built-in Buzzer Alarm: Available in model EDR819L, emitting up to 60dB for audible alerts during emergencies.

• LED Status Indicator: Provides clear visual cues—green for standby and red for alarmed status.

• Universal Key Design: Facilitates easy resetting, testing, and installation.

• Flexible Mounting Options: Supports both surface and embedded installations to suit various setups.

• Durable Construction: Made from high-grade ABS and transparent PC materials for longevity.

• Color Variants: Available in green or blue to match different aesthetic requirements.

📐 Specifications

• Dimensions: 86mm x 86mm x 42mm

• Operating Voltage: 12VDC / 24VDC

• Current Draw:

  • Standby: 8mA

  • Alarmed: 20mA (EDR819L model)

• Max Current Rating: 125VAC / 2A (standard models), 125VAC / 3A (EDR819L model)

• Weight: 135g

• Output Contacts: Options for 1, 2, or 3 outputs with NC, NO, and COM terminals

The EDR is an essential component for enhancing safety in buildings, ensuring that doors can be quickly and easily released during emergencies. Its combination of audible and visual indicators, along with a user-friendly reset mechanism, makes it a reliable choice for access control systems.
