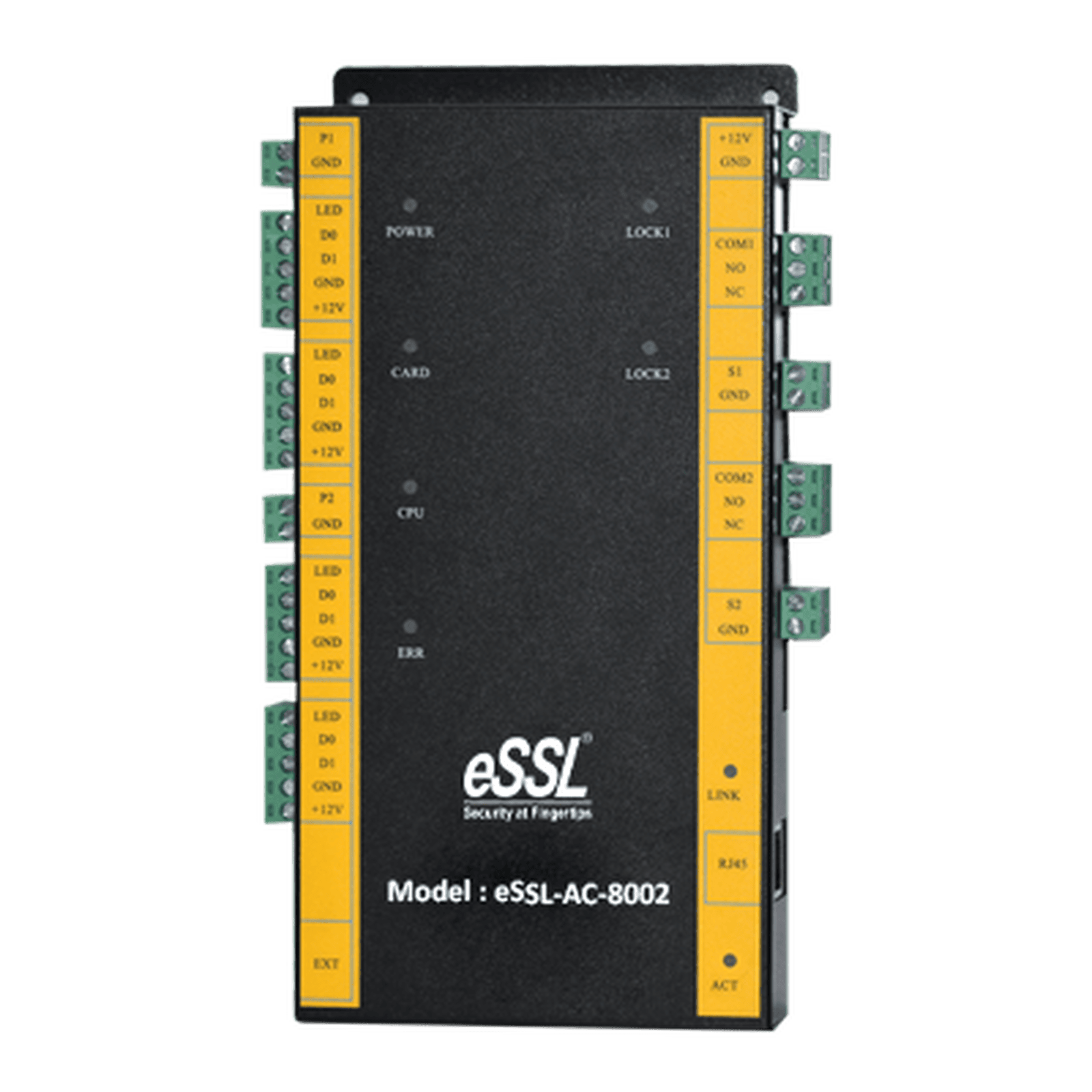

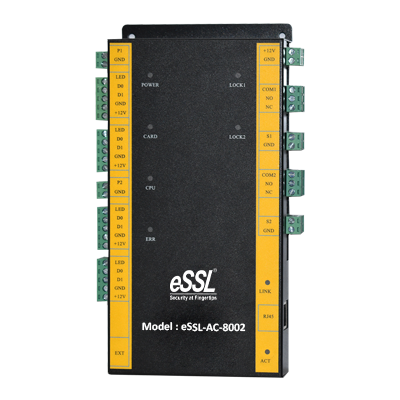

eSSL-Access-8002

The eSSL Access 8002 is a compact and reliable 2-door access control system designed for secure entry management in offices, commercial spaces, and institutional setups. It supports high card capacity, event logging, TCP/IP network communication, and advanced access control features such as anti-passback and interlock. With flexible reader support and easy software integration, it ensures efficient and real-time monitoring of all access events.

Key Highlights

• Two Door Control: Supports control of up to 2 doors with dedicated outputs.
• High User Capacity: Supports up to 20,000 card users.
• Event Buffer: Stores up to 100,000 access and event logs locally.
• Network Communication: TCP/IP 10M/100M adaptive for real-time data transfer.
• Advanced Access Control: Supports time zones, access levels, anti-passback, interlock, and multi-card opening.

Features

• Wiegand Reader Support: Compatible with 26/34-bit Wiegand readers.
• Real-Time Monitoring: Access events and door status can be monitored via compatible software.
• Delay Unlock Adjustable: Configurable door release delay from 1 to 600 seconds.
• Power Interruption Protection: High-speed memory ensures records are retained during power failure.
• Optional Fire/Alarm Linkage: Supports integration with fire alarms and auxiliary systems.
• Wide Operating Range: Operational from -40°C up to 70°C, with 10–90% RH.

Software and Database Supported

• eSSL Professional Door Control Software: Centralized configuration, monitoring, and reporting.
• Database Compatibility: Supports MS Access and MS SQL for scalable record management.
