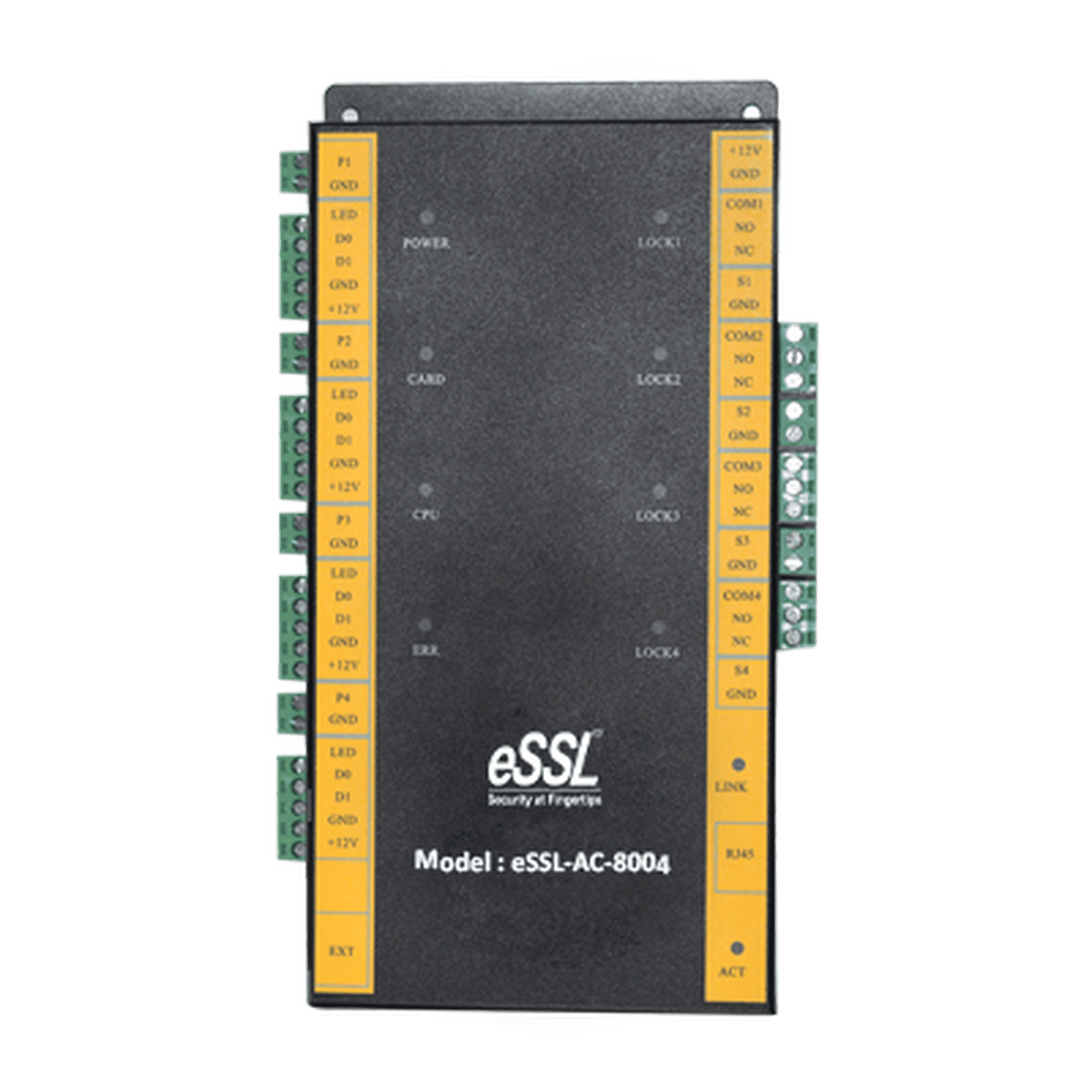

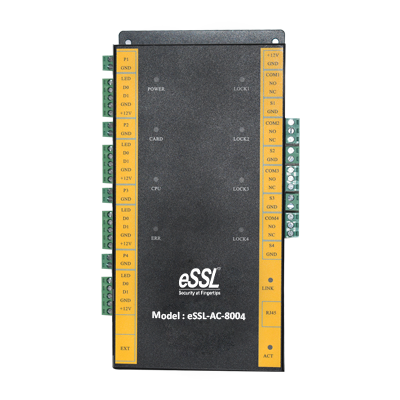

eSSL Access-8004 Multi-Door Access Controller

The eSSL Access-8004 is a professional 4-door access control panel designed for centralized access management in offices, commercial buildings, and industrial facilities. It supports up to 20,000 cardholders and stores 100,000 event records with TCP/IP communication for real-time monitoring and control.

Key Features

Controls up to 4 doors from a single controller
Supports 20,000 card users
Stores up to 100,000 event records
TCP/IP 10M/100M adaptive communication
Supports Wiegand 26-bit and 34-bit card readers
256 time zones and 256 access levels
Anti-passback function
Interlock function support
Multi-card opening function
Remote door opening support
Real-time monitoring through software
Power failure data protection with high-speed memory
Optional fire alarm linkage support

Technical Specifications

Specification	Details
Model	eSSL Access-8004
Product Type	Multi-Door Access Controller (4 Door)
Card Capacity	20,000 Cards
Event Buffer	100,000 Records
Communication	TCP/IP 10M/100M Adaptive
Function Description	Controls 4 doors, entry by card and exit by push button
Reader Input Format	Wiegand 26 / 34 Bit
Supported Card Readers	4 Readers
Door Control Output	4 Doors
Unlock Delay Time	1 – 600 Seconds (Adjustable)
PCB Board Size	21.9 × 12.2 × 3.4 cm
Controller Case Size	273 × 228 × 65 mm
Power Supply	12V DC, 4 – 7A
Circuit Board Power Consumption	< 200 mA
Operating Temperature	-40°C to +70°C
Operating Humidity	10% – 90% RH (Non-Condensing)
Time Zones	256
Access Levels	256
Fire & Alarm Linkage	Optional
Supported Software	eSSL Professional Door Control Software
Supported Databases	MS Access / MS SQL
