eSSL AiFace Magnum Face Recognition Terminal – Face + Fingerprint, IP65, Access Control
eSSL AiFace Magnum Face Recognition Terminal – Face + Fingerprint, IP65, Access Control

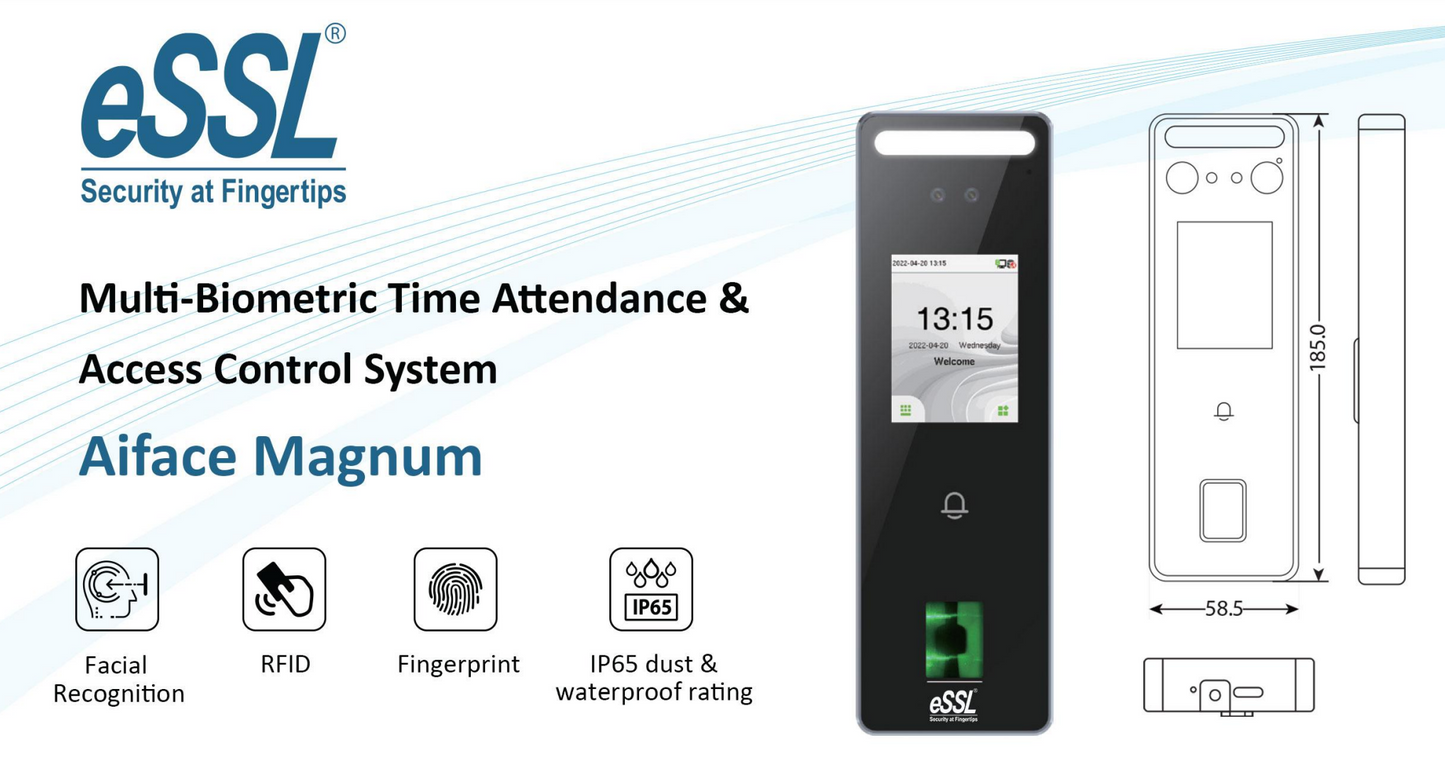

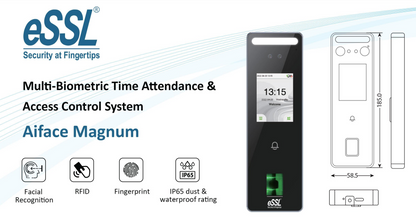

The eSSL AiFace Magnum is an IP65-rated visible-light face recognition terminal with fingerprint and RFID card, built for time attendance and door access indoors or outdoors.
Key specifications
| Display | 2.4-inch touch screen |
| Face capacity | 1,500 |
| Fingerprint capacity | 5,000 |
| Card capacity | 10,000 |
| Transactions | 2,00,000 |
| Hardware | 1.2 GHz dual-core CPU, 256 MB RAM, 512 MB flash, 1 MP binocular camera |
| Communication | TCP/IP, RS485, Wiegand in/out, optional Wi-Fi |
| Ingress protection | IP65 |
| Power | 12 V 3 A |
| Dimensions | 185 x 58.5 x 20 mm |
| Operating temperature | -5 °C to 45 °C |
| Software | eTimeTrackLite |
Who should purchase it?
Sites that need face plus fingerprint in one compact, IP65-rated unit, including outdoor gates and semi-covered entrances, for teams of up to 1,500 face users.
How many users can it support?
1,500 faces, 5,000 fingerprints, 10,000 cards and 2,00,000 transaction logs.
Which biometric methods does it support?
Face (visible light, eSSLFace 3.5 algorithm, 0.5 m to 2 m working distance, under 1 second), fingerprint and RFID card. Card modules: 12.5 kHz ID card or 13.56 MHz IC card.
Does it support TCP/IP, USB, Wi-Fi or cloud connectivity?
TCP/IP, RS485 and Wiegand input/output, with Wi-Fi as an option. A built-in web server handles configuration.
Does it support an attendance application?
Supports ADMS push data, so punches can flow automatically to a web or cloud attendance application. AmpleTrails can set up the server and connect it to your payroll or HRMS.
Which software is compatible?
Works with eSSL eTimeTrackLite attendance software. AmpleTrails can integrate attendance data with your payroll or HRMS.
Does it support access control?
Yes. Connects to a third-party electric lock, door sensor, exit button, alarm output and auxiliary input, with access levels, groups, holidays, anti-passback and tamper alarm.
What are the installation requirements?
Power: 12 V 3 A. Dimensions 185 x 58.5 x 20 mm. IP65 water and dust resistance; operating temperature -5 °C to 45 °C, humidity 10% to 90% RH. AmpleTrails installs and configures this device anywhere in India: mounting, network setup, software installation, employee enrolment and admin training. See installation services.
What is included in the box?
The box content list for this model is confirmed on your quotation – our team will share the current manufacturer details.
What is the warranty?
Supplied with the eSSL manufacturer warranty through AmpleTrails, an authorised eSSL partner. The exact warranty term is stated on your invoice, and our support team handles warranty claims for you.
What alternatives are available?
- eSSL AiFace Magnum Lite – compact 2.4-inch face terminal for small teams
- eSSL AiFace Jupiter – face + fingerprint with up to 10,000 faces
- eSSL AiFace Vesta+POE – rugged -30 °C to 60 °C face terminal for gates
- Browse all biometric attendance machines or the full eSSL attendance machines.
Buy from an authorised eSSL partner
AmpleTrails is an authorised eSSL partner with PAN India installation and support. Call +91 90347 57673 or WhatsApp us for a quotation including installation.
Specifications: eSSL official product page; eSSL datasheet PDF. Specifications may change with manufacturer revisions; our team confirms the current version on your quotation.
