essl BG100R-GREY
essl BG100R-GREY
Couldn't load pickup availability
Product Details

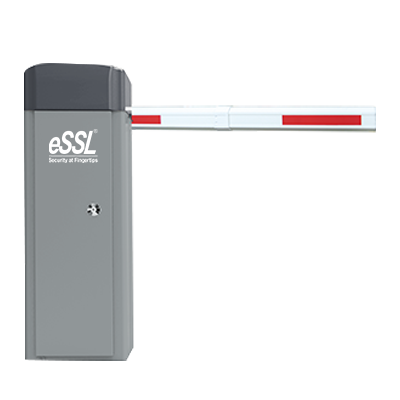

Boom Barrier – BG-100 R Grey
The BG-100 R Grey is a reliable automatic boom barrier designed for vehicle access control in residential, commercial, industrial, and institutional premises. With support for boom arms up to 6 meters, remote and wired operation, automatic closing, and multiple safety interfaces, it provides efficient and controlled vehicle entry and exit management.
The barrier features a durable aluminium boom arm, a powerful 90W motor, compression spring mechanism, and intensive-duty operation with an MCBF of up to 30 lakh cycles. It can be integrated with access control panels, RFID readers, biometric systems, Wiegand readers, photocells, and other vehicle access management solutions.
Key Features
Supports boom arms up to 6 meters, making it suitable for wide vehicle entrances and exits.
The boom can be raised or lowered in approximately 6 seconds for efficient vehicle movement.
Supports remote control, wired switch control, automatic operation, and integration with access control systems.
Compatible with Wiegand and RFID readers, biometric systems, standalone access control systems, and access control panels.
Supports infrared photocells and air switches for anti-bumping protection. Optional bumping bounce-back functionality is also available.
Auto-close timing can be configured from 1 to 99 seconds for automated vehicle entry and exit management.
Designed for high-traffic environments with an MCBF rating of up to 30 lakh cycles.
Manual release functionality allows the barrier to be operated when required during power or system-related situations.
Control Methods
- Remote Control up to 25 meters
- Three-position wired switch
- Automatic Mode
- Manual Mode
- Access Control Panel
- Standalone Access Control System
- Control Button
- Wiegand Reader
- RFID Reader
- Biometric Authentication System
Safety & Protection Features
- Infrared photocell anti-bumping support
- Air switch input
- Optional bumping bounce-back
- Optional double safety limit switches
- Manual release mechanism
- Compression spring mechanism
- Motor cooling fan
- STOP / UP / DOWN control buttons
Specifications
| Parameter | Specification |
|---|---|
| Model | BG-100 R Grey |
| Category | Boom Barrier |
| Maximum Boom Length | 6 m |
| Boom Material | Aluminium |
| Boom Rest Stand | Yes |
| Up / Down Time | 6 seconds |
| Input Control Signal | Dry Contact |
| Ingress Protection | IP54 |
| Input Interface | Photocell, Air Switch |
| Output Interface | Lamp |
| Optional Interface | Access Control Panel, Standalone Access Control, Control Button |
| Remote Control | Yes, up to 25 meters |
| Operating Mode | Automatic / Manual |
| Control Panel | Built-in 3 Push Buttons: STOP / UP / DOWN |
| Auto Close Time | 1–99 seconds |
| Bumping Bounce Back | Optional |
| Power Supply | SMPS – AC 220V / 110V, 50Hz / 60Hz |
| Motor Power | 90W, 240V AC |
| Dimensions | 268 × 348 × 1050 mm |
| Operating Temperature | -20°C to +50°C |
| Duty Cycle | Intensive |
| MCBF | 30 Lakh Cycles |
| Traffic Light Interface | Optional |
| Wire Control | Switch Signal |
| Remote Control Range | Up to 25 m |
| Reader Compatibility | Wiegand, RFID and Biometric Readers |
Applications
- Corporate Offices
- Commercial Buildings
- Residential Complexes
- Factories and Industrial Facilities
- Warehouses and Logistics Centers
- Hotels and Resorts
- Educational Institutions
- Hospitals
- Parking Areas
- Government and Institutional Entrances
Frequently Asked Questions
The BG-100 R Grey supports a maximum boom arm length of 6 meters.
The standard opening or closing time is approximately 6 seconds.
Yes. The BG-100 R Grey can be integrated with access control panels, standalone access control systems, Wiegand readers, RFID readers, and biometric systems.
Yes. The barrier supports remote operation with a range of up to 25 meters.
Yes. The automatic closing time can be configured between 1 and 99 seconds.
Yes. The barrier supports an infrared photocell for anti-bumping protection. An air switch and optional bounce-back functionality are also supported.
Yes. The barrier is designed for intensive-duty operation and has an MCBF rating of up to 30 lakh cycles, making it suitable for frequently used vehicle entrances.
