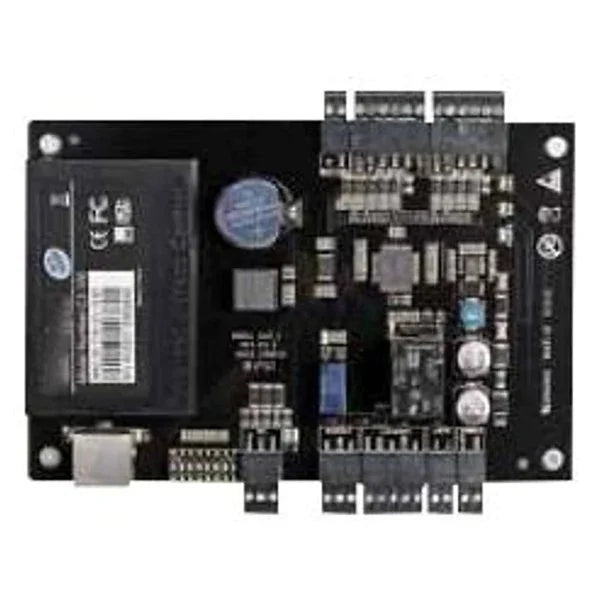

eSSL C3-100 Single Door Controller

eSSL C3-100 Single Door Controller can be used as a Boom barrier controller.  It's a card-based controller.  It can store up to 3,000 cards.  Its log events capacity is 1,00,000.  It has TCP/IP and RS-485 communication. PDF CATALOGUE [caption id="attachment_26380" align="aligncenter" width="500"] Access Control Systems | Door Access Control System[/caption] [caption id="attachment_26381" align="aligncenter" width="500"] eSSL c3 100 Single Door Controller[/caption]

TECHNICAL SPECIFICATIONS of eSSL C3-100 Single Door Controller

• Number of Door: 1 Door
• Card Holders Capacity: 30000
• Log Events Capacity : 100000
• Communication : TCP/IP and RS-485
• Number of Readers Supported : 2 ( 26-bit Wiegand reader)
• Types of Readers Supported : 26-bit Wiegand, others upon request
• Number of Inputs :2( 1 Exit Button, 1 Door Sensor)
• Number of Outputs : 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
• Weight : 7.4lbs (3.35kg)
• Enclosure : Powder Coated Aluminium
• Mounting : Wall Mount
• Recommended Power Supply : 12V DC, 1.5A
• Dimensions (Bundle Only) : 380mm(L)X80mm(W) X 280mm(H)
• Dimensions ( Board Only) : (160mm×106mm)

FEATURES of eSSL C3-100 Single Door Controller

• TCP/IP and RS485 communication
• Built-in Auxiliary input and Output
• Access Control Functions
• Support full range of card readers

Software Download for ESSL C3-100 Controller

• (1) Biosecurity 3.1.0.0(Web Version) database:- PGSQL / MS SQL
• (2) Access Security System 3.5 (Desktop Version) Database Type:- MS Access / MS SQL

Two Door Controller Fingerprint Inbio 260 eSSL Email us at info@ampletrails.com or call us at 9034757673, 9315441053 for pricing and installation of this Single Door Controller. [wpforms id="25849"]

Group	Label	Description
	Dimensions ( Board Only)	6.3in.×4.17in
	Number of Doors Controlled	1 Door
	Number of Readers Supported	2(26-bit Wiegand reader)
	Types of readers supported	26-bit Wiegand, others upon request
	Number of Inputs	2 (Exit Device and Door Status, AUX)
	Number of Outputs	2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)
Card Capacity	Cardholders Capacity	30,000
Storage Capacity	Log Events Capacity	1,00,000
Communication	Communication	TCP/IP, RS-485 and WiFi optional
	Enclosure	Powder Coated Aluminium
Operating Humidity	Operating Humidity	20% to 80%
	Weight	7.4lbs (3.35kg)
	Mounting	Wall Mount
CPU	CPU	32 bit 400MHz CPU
RAM	RAM	32M
Flash Memory	Flash Memory	128M
	Recommended Power Supply	12V DC, 1.5A
	Operating Temperature	0 - 45 °C
	Dimensions (Bundle Only)	15in.×3.15in.×11in. 380mm(L) X 80mm(W) X 280mm(H)
	Dimensions ( Board Only)	6.3in.×4.17in. (160mm×106mm)
