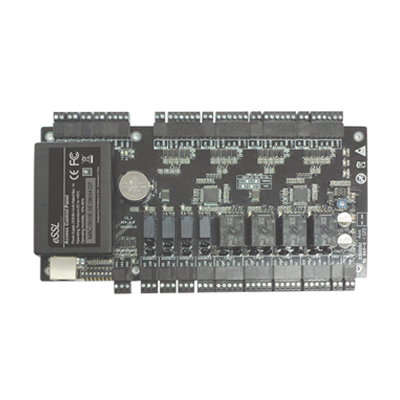

eSSL C3-400 Advanced Multidoor Access Control System - 4 Door

Rs. 0.00

Sale Sold out

eSSL C3-400 Advanced Multi-Door Access Control System

The eSSL C3-400 is an advanced 4-door access control panel designed for enterprise-level security applications. Equipped with a 32-bit MIPS processor, large user capacity, and flexible communication interfaces, it provides centralized management and real-time monitoring for commercial and industrial facilities.

Key Features

Controls up to 4 doors from a single controller
Stores up to 30,000 users
Stores up to 100,000 event records
Supports Proximity, MIFARE, and HID readers
Supports TCP/IP and RS485 communication
Real-time monitoring via web browser
Supports Anti-passback and Interlock functions
Supports Multi-Card Opening and Remote Door Control
Supports auxiliary inputs and outputs for alarm integration
Suitable for centralized access management systems

Technical Specifications

Specification	Details
Model	C3-400
Product Type	4-Door Access Control Panel
User Capacity	30,000 Users
Event Buffer	100,000 Records
CPU	32-bit MIPS CPU
RAM	32 MB
Flash Memory	128 MB
Power Supply	DC 9.6V – 14.4V
Maximum Current	Rated Max. 1A
Communication	TCP/IP, RS485
Operating Temperature	0°C to 55°C
Operating Humidity	10% to 80% RH (Non-Condensing)
Single Board Dimensions	218 × 106 mm (W × H)
Metal Box Dimensions	345 × 275 × 70 mm (W × H × D)
Supported Reader Types	Proximity, MIFARE and HID Readers
Number of Readers Supported	12 Readers (8 RS485 Readers and 4 × 26-bit Wiegand Readers)
Reader Types	26-bit Wiegand and RS485 FR Series Readers
Number of Inputs	12 (4 Exit Devices, 4 Door Status Inputs, 4 AUX Inputs)
Number of Outputs	8 (4 Form-C Lock Relays and 4 Form-C AUX Relays)
Supported Software	Access Security System 3.5 (Desktop Version)
Supported Databases	MS Access / MS SQL
