eSSL D330-33-IP65 Walk through Metal Detector - 33 zone

Rs. 0.00

Sale Sold out

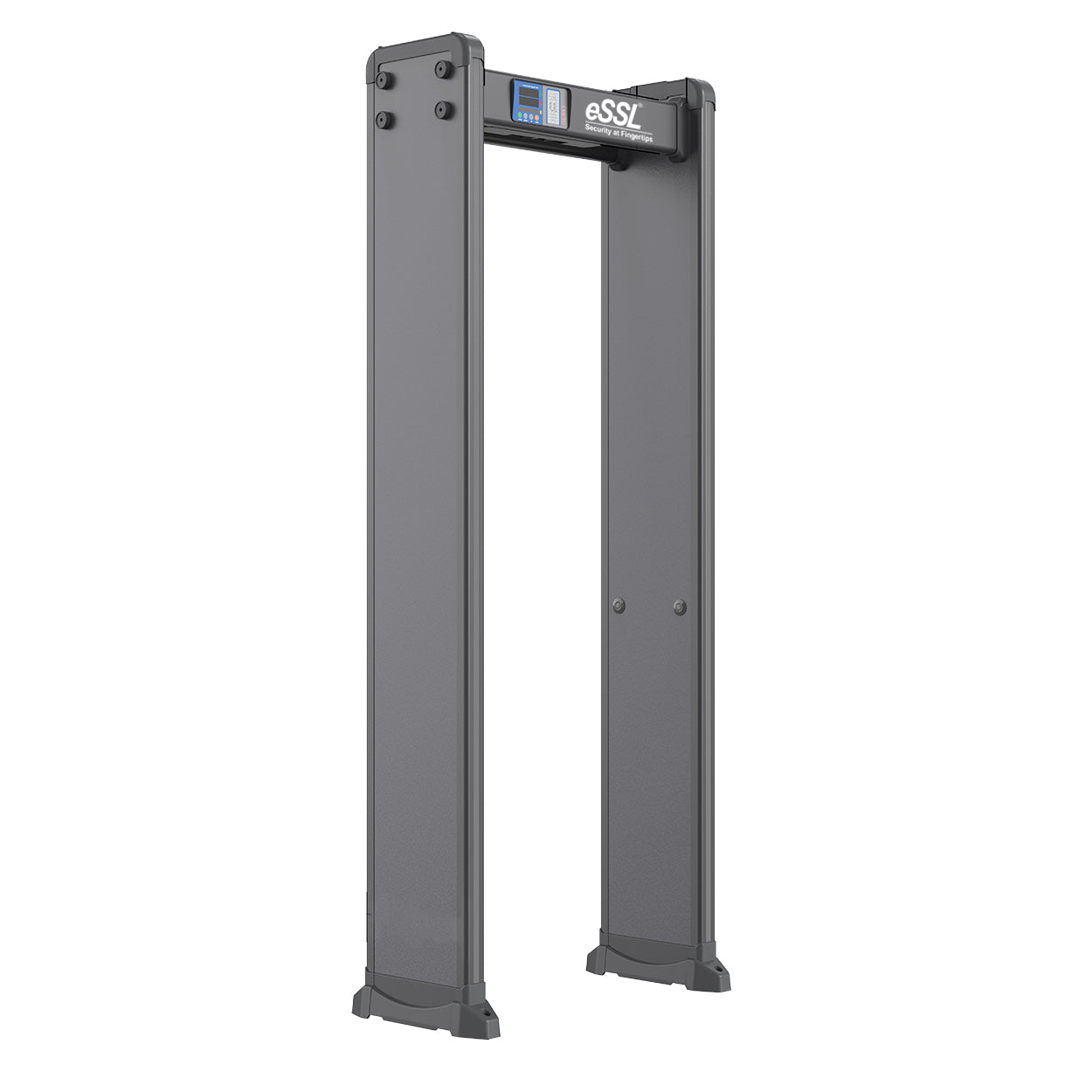

eSSL D330-33-IP65 Walk Through Metal Detector - 33 Zone

The eSSL D330-33-IP65 is a high-performance 33-zone walk-through metal detector designed for advanced security screening applications. Equipped with thirty-three independent detection zones, intelligent sensitivity adjustment, and an IP65 weatherproof design, the D330-33-IP65 provides precise metal localization and reliable operation in airports, government facilities, factories, educational institutions, stadiums, and outdoor security checkpoints.

33 Independent Detection Zones

Provides highly accurate localization of metallic objects using thirty-three independent detection zones with bright LED indicators.

IP65 Weatherproof Design

Dustproof and water-resistant construction allows reliable operation in both indoor and outdoor environments.

Advanced Detection Technology

Features low magnetic field technology and adjustable sensitivity levels for high detection accuracy with minimal false alarms.

Integration Ready

Supports integration with turnstiles, flap barriers, swing barriers, and third-party access control systems.

Key Features

33 Independent Detection Zones.
IP65 Weatherproof Protection.
Low Magnetic Field Technology.
High-Brightness LED Zone Display.
Infrared Pass Count & Alarm Count.
Adjustable Sensitivity (0-400 Levels).
15 Selectable Alarm Tones.
Manual Calibration and Count Reset.
Supports Entrance Automation Integration.
Simple Cross Beam Installation.
Suitable for Indoor and Outdoor Applications.

Technical Specifications

Specification	Details
Model	D330-33-IP65
Type	33 Zone Walk Through Metal Detector
Detection Zones	33 Independent Zones
Working Principle	Electromagnetic
Material	ABS (Acrylonitrile Butadiene Styrene)
External Dimensions	2191 × 875 × 446 mm
Passage Dimensions	2007 × 720 × 446 mm
Net Weight	35 kg
Gross Weight	42 kg
Distance Between Two DFMDs	850 mm
Input Voltage	AC 100V – 240V
Operating Frequency	50Hz – 60Hz
Working Temperature	-20°C to +65°C
Working Humidity	99% RH (Non-Condensing)
Sensitivity Adjustment	0 – 400 Levels
Volume Adjustment	0 – 50 Levels
Alarm Duration	0 – 3 Seconds
Alarm Tones	15 Different Tones
Minimum Detection	Ferrous Metals < 75 gm
Metal Detection Capability	Thickness 2 mm, Length 50 mm, Width 20 mm
Product Colour	Matte Black
Protection Rating	IP65
