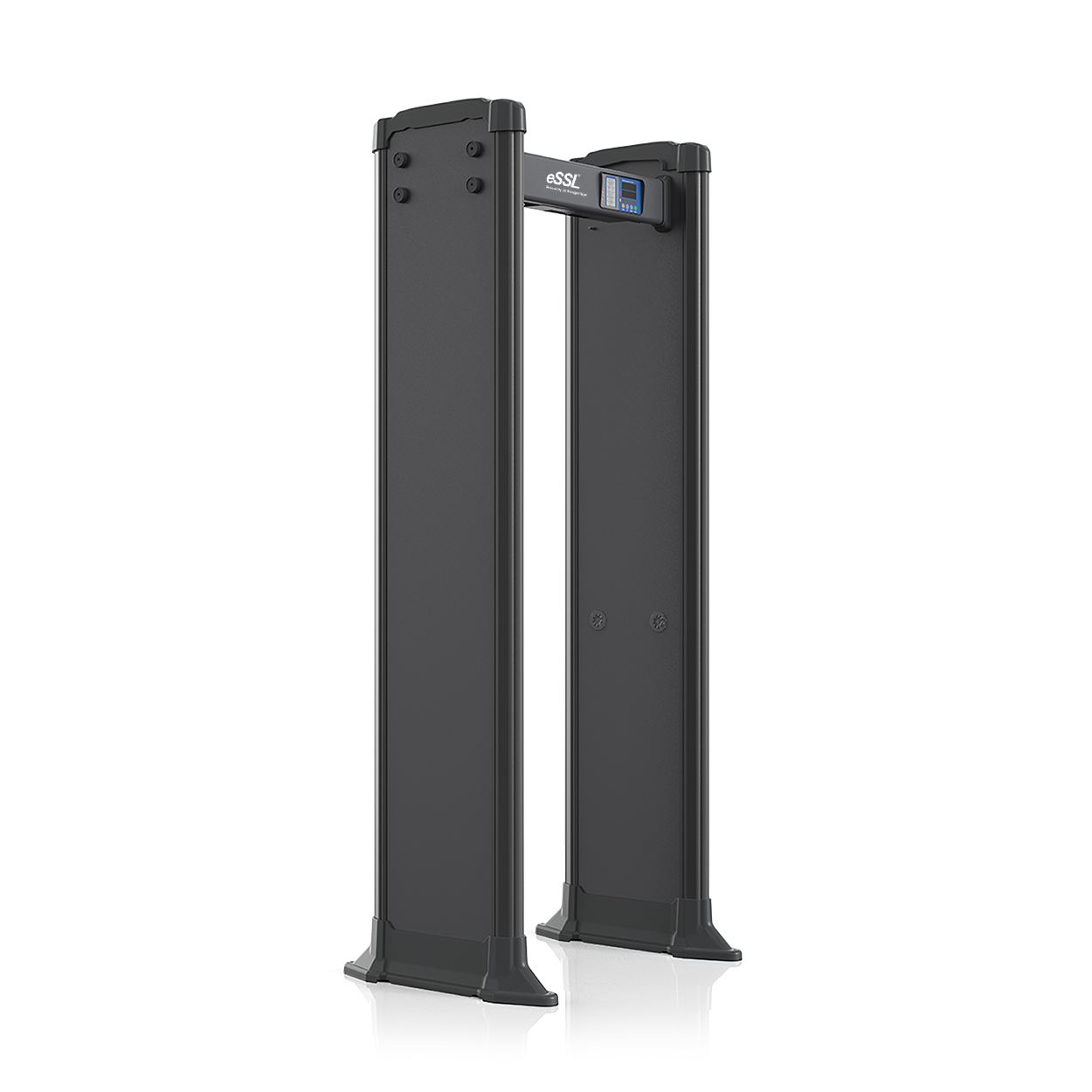

eSSL D518-63-IP65 Door Frame Metal Detector DFMD

Rs. 85,000.00

~~Rs. 150,000.00~~ Rs. 85,000.00

Sale Sold out

eSSL D518-63-IP65 Walk Through Metal Detector - 63 Zone

The eSSL D518-63-IP65 is a premium 63-zone walk-through metal detector designed for high-security screening applications requiring precise metal localization and reliable outdoor performance. Featuring an IP65 weatherproof design, intelligent sensitivity adjustment, high-brightness LED displays, and support for multi-zone operation, the D518-63-IP65 is ideal for airports, government facilities, industrial plants, educational institutions, stadiums, and critical infrastructure projects.

63 Independent Detection Zones

Provides highly accurate localization of metallic objects using 63 independent detection zones with bright LED indicators.

Multi-Zone Selection

Supports flexible operation by selecting 21, 42, or 63 detection zones depending on security requirements.

IP65 Weatherproof Protection

Designed for indoor and outdoor environments with superior dust and water resistance.

Entrance Automation Integration

Can integrate with turnstiles, flap barriers, and swing barriers through an optional IoT access controller.

Key Features

63 Independent Detection Zones.
Supports Multi-Zone Selection (21 / 42 / 63 Zones).
IP65 Weatherproof Protection.
Low Magnetic Field Technology.
5-Digit 7-Segment Bright LED Display.
High Bright LED Zone Display.
Infrared Pass Count & Alarm Count.
Manual Calibration and Count Reset.
Adjustable Sensitivity (0-400 Levels).
15 Selectable Alarm Tones.
Supports Entrance Automation Integration.
Easy Cross Beam Installation.
Suitable for Indoor and Outdoor Applications.

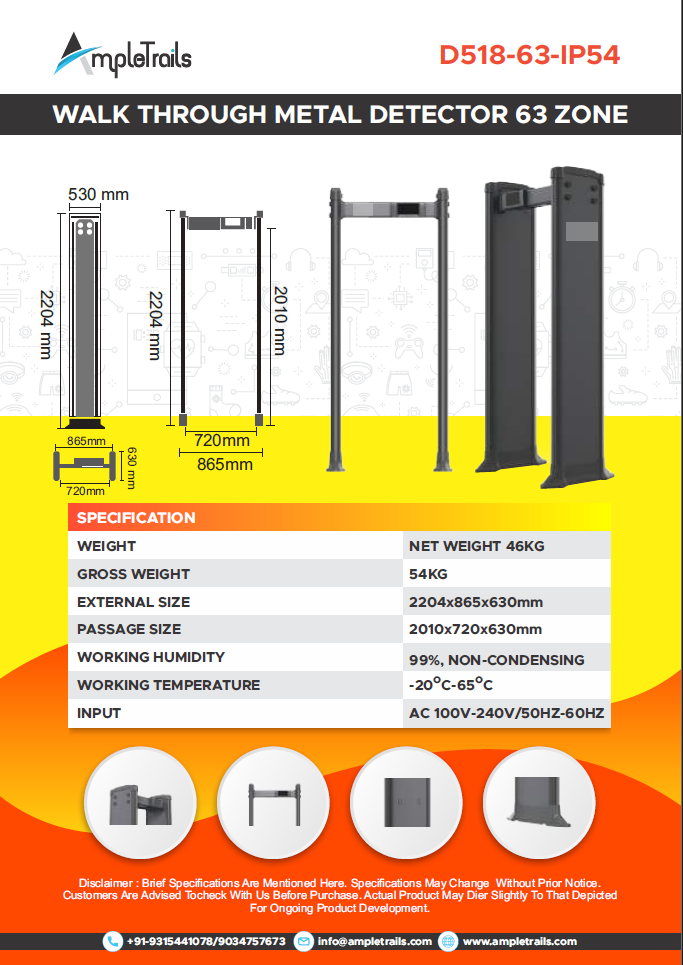

Technical Specifications

Specification	Details
Model	D518-63-IP65
Type	63 Zone Walk Through Metal Detector
Detection Zones	63 Independent Zones (Selectable 21 / 42 / 63 Zones)
Working Principle	Electromagnetic
Material	ABS (Acrylonitrile Butadiene Styrene)
Frequency Range	0 - 99
Net Weight	48 kg
Gross Weight	56 kg
External Dimensions	2249 × 932 × 715 mm
Passage Dimensions	1987 × 720 × 715 mm
Distance Between Two DFMDs	850 mm
Input Voltage	AC 100V – 240V
Operating Frequency	50Hz – 60Hz
Working Temperature	-20°C to +65°C
Working Humidity	99% RH (Non-Condensing)
Sensitivity Adjustment	0 – 400 Levels
Volume Adjustment	0 – 50 Levels
Alarm Duration	0 – 3 Seconds
Alarm Tones	15 Different Tones
Minimum Detection	Ferrous Metals < 75 gm
Metal Detection Capability	Thickness 2 mm, Length 50 mm, Width 20 mm
Product Colour	Matte Black
Protection Rating	IP65
