eSSL Drop Bolt for Frameless Glass Door-10

Rs. 0.00

Sale Sold out

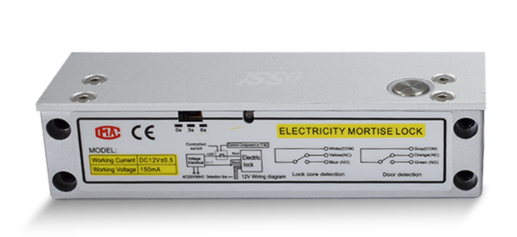

Drop Bolt for Frameless Glass Door-10

The Drop Bolt for Frameless Glass Door-10 is a fail-safe electric drop bolt lock designed specifically for frameless glass doors. Featuring an anodized aluminum construction, adjustable time delay, and reliable locking performance, it is ideal for access control systems in offices, commercial buildings, and glass entrance applications.

Key Features

Specially designed for frameless glass doors
Fail-safe operation (unlocks when power is removed)
DC 12V operating voltage
Adjustable time delay settings of 0, 3, 6, and 9 seconds
Anodized aluminum construction for durability
Low standby power consumption
Suitable for access control and security systems

Technical Specifications

Specification	Details
Model	Drop Bolt for Frameless Glass Door-10
Product Type	Electric Drop Bolt Lock
Working Voltage	DC 12V
Working Current	900mA ±50mA
Standby Current	200mA ±50mA
Plate Material	Aluminum
Plate Finishing	Anodization
Working Feature	Fail Safe
Working Temperature	-10°C to +55°C
Working Humidity	0% to 90% RH
Bolt Diameter	14.5 mm
Bolt Material	Aluminum
Bolt Length	15 mm
Face Plate Dimensions	145 × 43 × 38 mm (L × W × H)
Strike Dimensions	145 × 43 × 24 mm (L × W × H)
Time Delay	0 / 3 / 6 / 9 Seconds
Suitable For	Glass Doors
