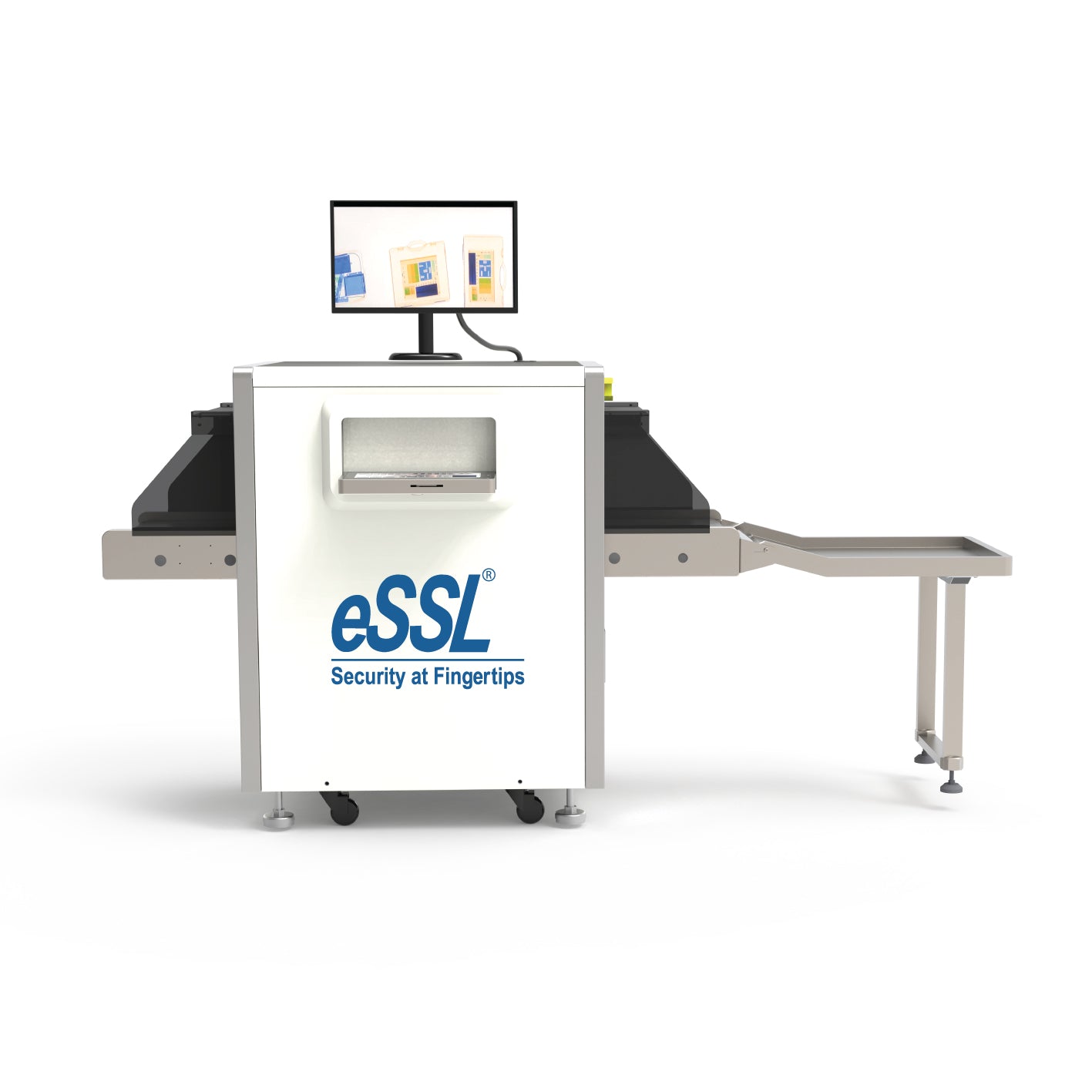

eBS-5030A Single Energy X-Ray Baggage Scanner
The eBS-5030A is an advanced single-energy X-ray baggage inspection system designed for security screening applications in airports, government buildings, hotels, commercial complexes, factories, and public facilities. The system utilizes high-performance imaging technology to detect prohibited and dangerous items through non-intrusive baggage inspection while delivering high-resolution image processing and reliable security performance.
Key Features
- 500 × 300 mm tunnel size for small and medium baggage inspection
- Single-energy X-ray imaging technology
- L-shaped photodiode array detector with 24-bit image depth
- High-resolution 19-inch color LCD display
- Real-time storage of up to 100,000 images
- Automatic X-ray control and one-key shutdown system
- LAN connectivity with multi-terminal monitoring support
- Eagle Eye image magnification function
- Self-diagnosis and maintenance notification system
- Advanced image enhancement and material discrimination features
Technical Specifications
| Specification | Details |
|---|---|
| Model | eBS-5030A |
| Technology | Single-Energy X-Ray Baggage Scanner |
| Tunnel Size | 500 (W) × 300 (H) mm |
| Conveyor Speed | 0.22 m/s |
| Maximum Conveyor Load | 150 kg |
| Single Inspection Dosage | < 1.32 μGy |
| Leakage Radiation | < 0.06 μGy/h |
| Wire Resolution | 40 AWG (0.0787 mm metal wire) |
| Steel Penetration | 10 mm |
| Film Safety | ISO 1600 |
| Image Storage | 100,000 Images (Real Time) |
| Display | 19-inch High-Resolution Color LCD |
| Operating System | Windows Based Operating System |
| Product Weight | 410 kg |
| Package Dimensions | 1810 × 910 × 1450 mm |
X-Ray Generator Specifications
| Specification | Details |
|---|---|
| Generator Orientation | Upward |
| Tube Current | 0.4 ~ 0.7 mA (Adjustable) |
| Anode Voltage | 80 kV (Adjustable) |
| X-Ray Divergence Angle | 60° |
| Cooling System | Sealed Oil Bath with Forced Air Cooling |
| Working Cycle | 100% Duty Cycle |
| X-Ray Sensor | L-Shaped Array Detector, 24-bit |
Image Processing Functions
- Color management architecture for material identification
- Different colors for different material types
- Black & White and Colorized display modes
- Negative image display mode
- Organic and Inorganic material enhancement
- Edge enhancement for clearer images
- High penetration mode for dense objects
- Zoom In and Zoom Out functionality
- 1:1 image restoration
- Brightness adjustment controls
- Image replay and review function
Operating Environment
| Parameter | Specification |
|---|---|
| Storage Temperature | -20°C to +60°C |
| Operating Temperature | 0°C to +45°C |
| Relative Humidity | 20% to 95% RH (Non-Condensing) |
| Power Supply | 220 VAC (±10%), 50 ±3Hz |
| Maximum Power Consumption | 1.0 kW |
| Noise Level | < 65 dB |
Special Features
- Network interface supporting LAN connectivity
- Multi-terminal baggage inspection monitoring
- Automatic X-ray transmission control for enhanced safety
- One-key shutdown operation for safe system shutdown
- Eagle Eye magnification function for detailed inspection
- Automatic self-diagnosis and fault reporting
- Foldable keyboard and baggage collection tray included
- Tool kit supplied for maintenance and setup
Applications
- Airports and Aviation Security
- Government Buildings
- Railway and Metro Stations
- Hotels and Convention Centers
- Factories and Industrial Facilities
- Corporate Offices
- Educational Institutions
- Commercial Complexes and Malls
- Courts and High-Security Facilities
- Logistics and Warehousing Centers
Why Choose eBS-5030A?
- Reliable single-energy X-ray imaging technology
- Advanced image enhancement and material discrimination
- Compact design with 500 × 300 mm inspection tunnel
- High-resolution image display and storage capability
- Low radiation leakage and ISO 1600 film safety
- LAN-enabled multi-terminal monitoring support
- Automatic diagnostics and easy maintenance features
- Suitable for a wide range of security screening applications
Package Includes
- 1 × eBS-5030A X-Ray Baggage Scanner
- 19-inch LCD Monitor
- Foldable Keyboard
- Baggage Collection Tray
- Tool Kit
- User Documentation
*Specifications are based strictly on the provided eBS-5030A technical information and may vary depending on configuration and regional requirements.*
