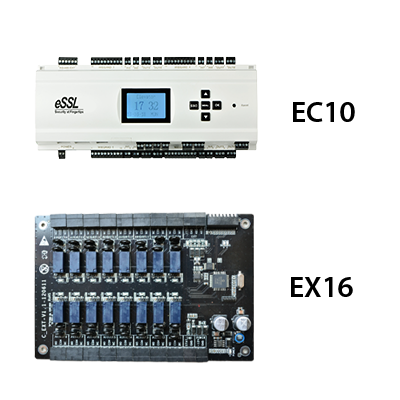

EC10-EX16 – Elevator Controller
The ZKTeco EC10-EX16 is an advanced elevator access control solution designed to restrict and manage access to different floors using fingerprint and proximity card authentication. The system combines the EC10 main elevator controller with EX16 expansion boards to provide flexible floor button control for multi-floor buildings.
The EC10 supports up to 10 floor control relays directly and can connect up to three EX16 expansion boards through RS485, providing additional relay outputs for larger elevator installations. With real-time access privilege updates, event monitoring, and user-defined floor permissions, the system provides centralized and secure elevator access management.
Key Features
The EC10 provides 10 floor button control relays and can be expanded using up to three EX16 boards, each providing 16 additional relay outputs.
Supports both fingerprint and proximity card slave readers for secure user authentication before allowing access to configured floors.
Supports up to 3,000 fingerprint users and up to 30,000 proximity card credentials.
Administrators can assign specific floor access privileges to individual users according to their authorization requirements.
User access permissions can be uploaded to the controller in real time, helping administrators maintain centralized control.
The system supports real-time monitoring of elevator access events for improved security and centralized management.
Fail Safe Mode provides an additional operational option for maintaining appropriate elevator access behavior during system or power-related conditions.
The EC10 communicates with computers through Ethernet or RS485 and communicates with EX16 expansion boards through RS485.
Authentication Options
- Fingerprint Authentication
- RFID / Proximity Card Authentication
- Fingerprint Slave Readers
- RFID Slave Readers
Elevator Expansion
The EC10 supports up to three EX16 expansion boards. Each EX16 provides 16 additional floor button control relays, allowing the elevator control system to be expanded for larger installations.
| Controller | Floor Button Relays |
|---|---|
| EC10 | 10 |
| Each EX16 | 16 |
| Maximum EX16 Boards | 3 |
| Maximum Relay Outputs with 3 EX16 Boards | 58 |
Specifications – EC10
| Parameter | Specification |
|---|---|
| Model | EC10 |
| Category | Elevator Controller |
| Floor Button Control Relays | 10 |
| Fingerprint Capacity | 3,000 |
| Proximity Card Capacity | 30,000 |
| Event Capacity | 100,000 |
| Power Supply | 12V DC, 1A |
| Communication to Computer | Ethernet, RS485 |
| Communication to EX16 | RS485 |
| Supported EX16 Boards | Up to 3 |
| Authentication Readers | RFID and Fingerprint Slave Readers |
| Access Control | User-defined Floor Access Privileges |
| Monitoring | Real-Time Event Monitoring |
| Privilege Management | Real-Time Upload of User Access Privileges |
| Security Mode | Fail Safe Mode |
Specifications – EX16
| Parameter | Specification |
|---|---|
| Model | EX16 |
| Floor Button Control Relays | 16 |
| Communication to EC10 | RS485 |
| RS485 Address | Configured using DIP Switch |
| Power Supply | 12V DC, 1A |
Software & Database
- Software: Bio Security 3.0.1.0_R
- Database: PostgreSQL / MS SQL / Oracle
- Real-time event monitoring
- Real-time user access privilege management
- User-defined floor access privileges
Applications
- Corporate Offices
- Commercial Buildings
- Hotels
- Residential Towers
- Hospitals
- Educational Institutions
- Government Buildings
- Industrial Facilities
- High-Security Buildings
Frequently Asked Questions
The EC10 provides 10 floor button control relays. Additional floors can be controlled by connecting EX16 expansion boards through RS485.
The EC10 supports up to three EX16 expansion boards. Each EX16 provides 16 additional floor button control relays.
The EC10 provides 10 relays and three EX16 boards provide 48 additional relays, giving a total of up to 58 floor button control relays.
The system supports both fingerprint and RFID/proximity card slave readers for elevator access authentication.
Yes. User-defined floor access privileges allow administrators to specify which floors individual users are authorized to access.
The EC10 supports Ethernet and RS485 communication with the computer. Communication with EX16 expansion boards is performed through RS485.
The supplied software supports PostgreSQL, MS SQL, and Oracle databases.
