eSSL EML600-8-FGD-Bracket

Rs. 0.00

Sale Sold out

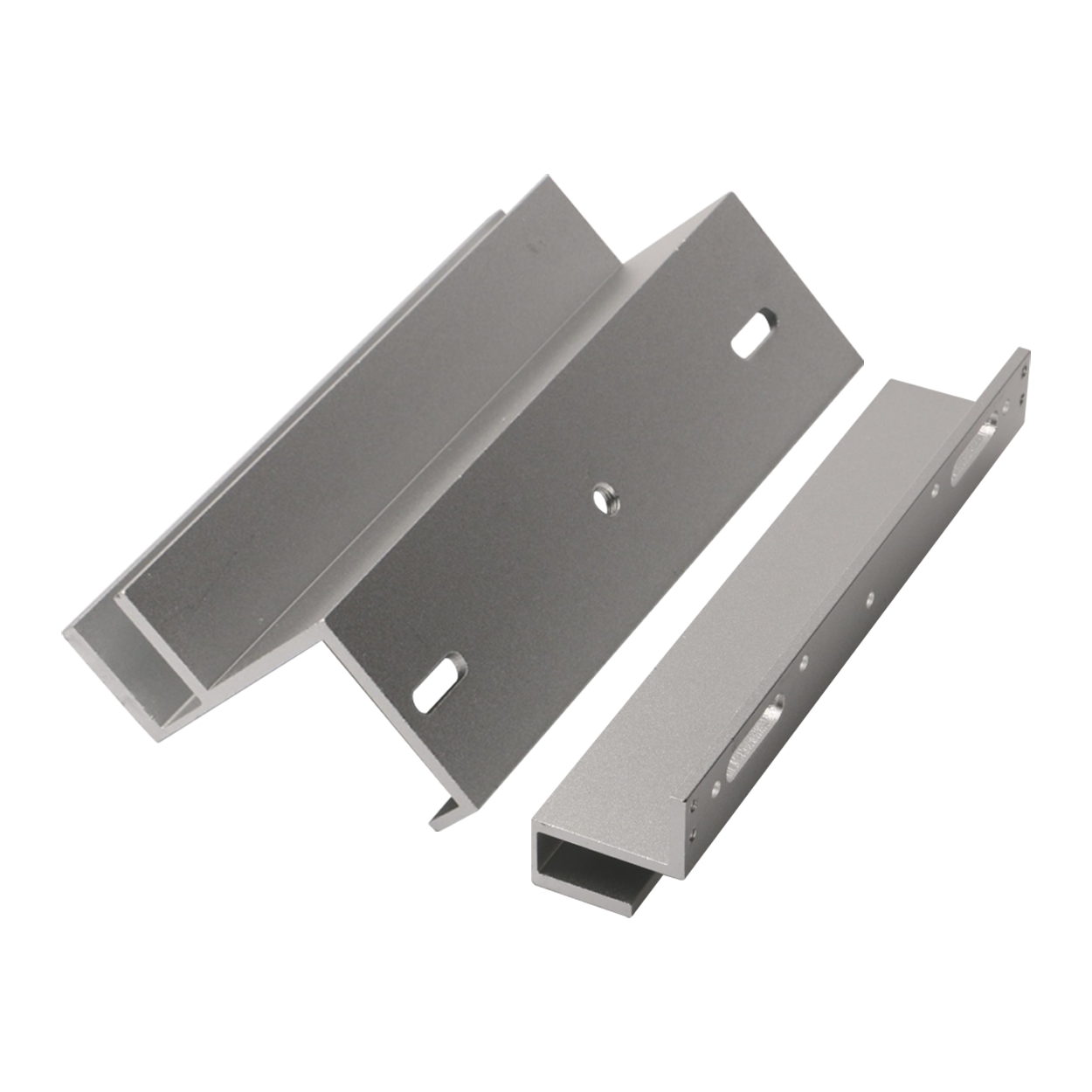

eSSL EML600-8-FGD-Bracket for Frameless Glass Doors

The eSSL EML600-8-FGD-Bracket is a UL-style (top-and-bottom) mounting bracket set designed for installing electromagnetic locks on frameless glass doors. The bracket is suitable for glass thicknesses ranging from 8 mm to 16 mm and provides secure mounting for both the magnetic lock and armature plate assemblies.

Key Features

UL-style (top-and-bottom) bracket set for frameless glass doors
Compatible with 8–16 mm thick glass doors
Designed for electromagnetic lock installations
Requires a minimum door gap of more than 5 mm
2 mm thick metal construction for durability
10 mm magnetic lock mounting hole spacing
Includes upper glass header clamp and lower door clamp

Technical Specifications

Specification	Details
Model	EML600-8-FGD-Bracket
Description	UL-style (Top-and-Bottom) Bracket Set for Frameless Glass Doors
Suitable Glass Thickness	8–16 mm
Required Door Gap	More than 5 mm
Material Thickness	2 mm
Magnetic Lock Mounting Hole Spacing	10 mm
Left Bracket Type	Upper Glass Header Clamp
Left Bracket Total Length	190 mm
Left Bracket Base Width	53 mm
Left Bracket Total Height	46 mm
Left Bracket U-Channel Outer Width	28 mm
Left Bracket U-Channel Inner Opening	16 mm
Right Bracket Type	Armature Plate / Lower Door Clamp
Right Bracket Total Length	250 mm
Right Bracket Armature Face Length	197 mm
Right Bracket Base Profile Width	32 mm
Right Bracket Total Height	29 mm
Right Bracket U-Channel Outer Width	25 mm
Right Bracket U-Channel Inner Opening	16 mm
