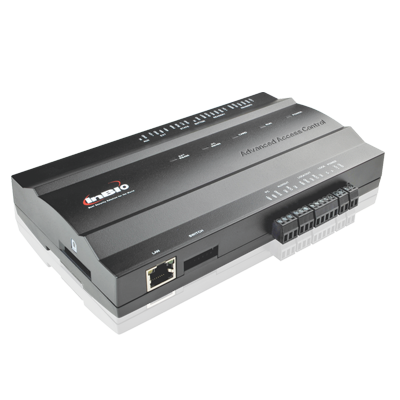

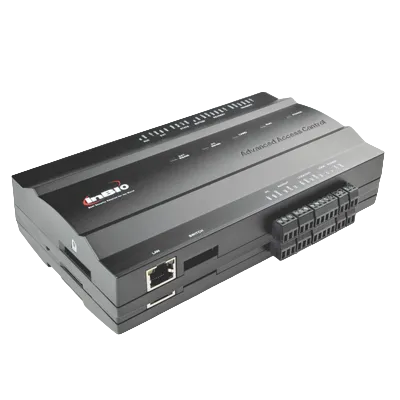

ESSL Inbio 160 Single Door Fingerprint Access Control System

ESSL Inbio 160 Single Door Fingerprint Access Control System

Regular price Rs. 24,000.00
Regular price Sale price Rs. 24,000.00
Sale Sold out
ESSL Inbio 160 Single Door Fingerprint RFID controller.  This controller can be used for boom barrier, single door physical access control, tripod turnstile, flap barriers, Swing barriers. It's a single door access control system. Get the essl biometric access control system for your organization. [caption id="attachment_26371" align="aligncenter" width="400"]eSSL inBio-160 access control system Access Control System[/caption]

essl Fingerprint Access Control

MULTIDOOR ACCESS CONTROL - 1 DOOR
  • Number of doors controller: 1 Door,
  • Cardholders Capacity : 30000,
  • Fingerprint Capacity: 3000,
  • Log Events Capacity: 100000.

Technical Specifications of Inbio 160 Single Door Controller

  • Number of doors controller : 1 Door
  • Numbers of readers supported : 2(4 RS-485 Reader, 26-bit wiegand reader)
  • Types of readers supported : 26-bit Wiegand and RS485 FR Series Reader
  • Card holders Capacity : 30000
  • Fingerprint Capacity : 3000
  • Log Events Capacity : 100000
  • Communication : TCP/IP and RS-485
  • Package Dimension : 350(L)×90(H)×300(W)mm
  • Package Weight : 3.6kg
  • CPU : 32 bit 400MHz CPU
  • RAM : 32M
  • Flash Memory : 128M
  • Power : 9.6V-14.4V DC
  • Operating Temp : 0 - 45 °C
  • Operating Humidity : 20% to 80%
Single Door Access Control System

Features of fingerprint access control system

  • Embedded Fingerprint verification and advance access control function
  • It can be installed easily on your network also support TCP/IP and RS485 communication
  • 1/2/4 Door models can be mixed and matched in an optimised System Architecture
  • Data is preserved if power is lost, Controller continues to operate if data connection is interrupted Anti-Passback, Interlock,First-Card Opening, Multi-Card Opening
  • Duress Password Entry and Auxilary Input/output linkages are inbuilt into controller firmware.

Software Download for ESSL Inbio 160 Controller

Two Door Controller Fingerprint Inbio 260 eSSL

TECHNICAL SPECIFICATIONS

  • Number of doors controller : 2 Door
  • Numbers of readers supported : 8(4 RS-485 Reader, 26-bit wiegand reader)
  • Types of readers supported : 26-bit Wiegand and RS485 FR Series Reader
  • Number of Inputs : 6( 2 Exit Device, 2 Door Status, 2 AUX)
  • Number of Outputs : 4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)
  • Card holders Capacity : 30000
  • Fingerprint Capacity : 3000
  • Log Events Capacity : 100000
  • Communication: TCP/IP and RS-485
  • Package Dimension: 350(L)×90(H)×300(W)mm
  • Package Weight : 3.6kg
  • CPU : 32 bit 400MHz CPU
  • RAM : 32M
  • Flash Memory : 128M
  • Power : 9.6V-14.4V DC
  • Operating Temp : 0 - 45 °C
  • Operating Humidity : 20% to 80%

FEATURES

  • Embedded Fingerprint verification and advance access control function
  • It can be installed easily on your network also support TCP/IP and RS485 communication
  • 1/2/4 Door models can be mixed and matched in an optimized System Architecture
  • Data is preserved if power is lost, Controller continues to operate if data connection is interrupted Anti-Passback, Interlock, First-Card Opening, Multi-Card Opening
  • Duress Password Entry, and Auxiliary input/output linkages are inbuilt into controller firmware

SOFTWARE AND DATABASE SUPPORTED

  • (1) Biosecurity 3.1.0.0(Web Version) database: - PGSQL / MS SQL
  • (2) Access Security System 3.5 (Desktop Version) Database Type: - MS Access / MS SQL
Email us at info@ampletrails.com or call us at 9034757673, 9315441053 for pricing and installation of this ESSL Inbio 160 Single Door Fingerprint Access Control System.  If you want single door access control systems without data, then you can go with SA32
