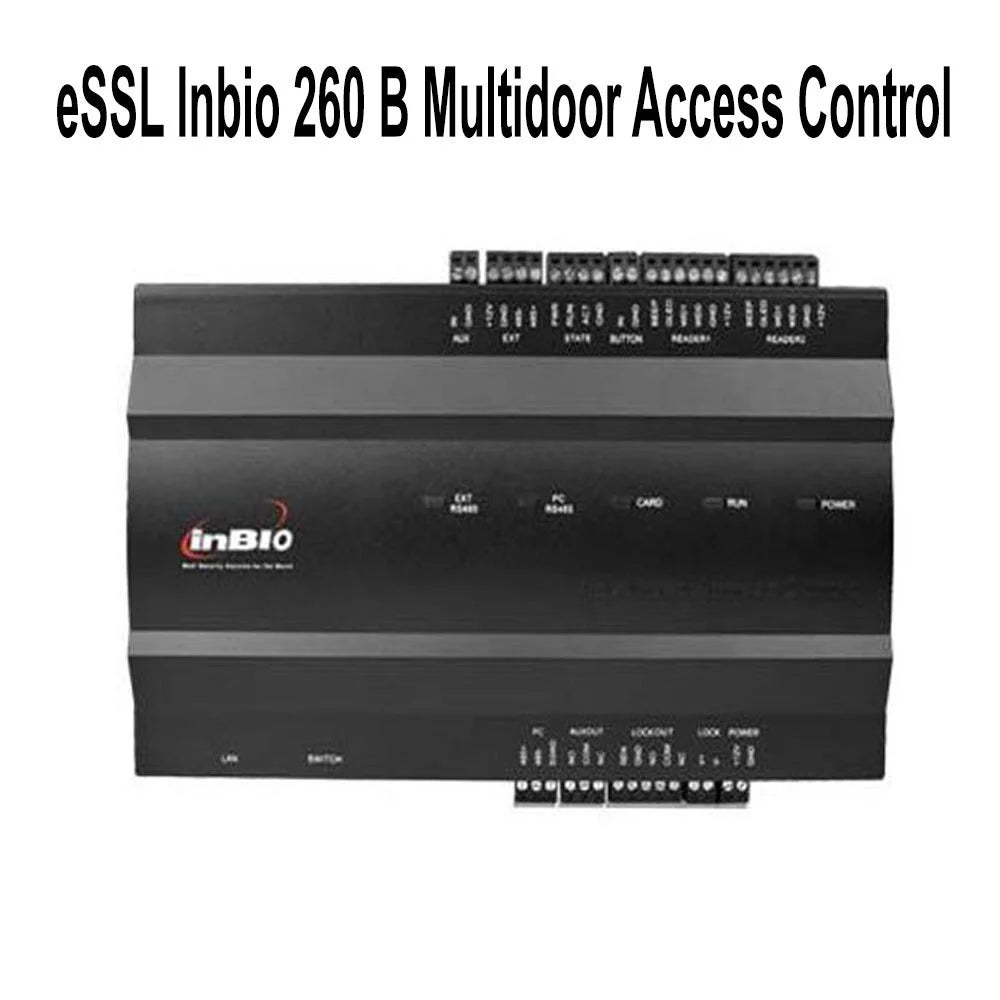

eSSL InBio 260B Multi-Door Access Control Panel
The eSSL InBio 260B is a professional 2-door biometric access control controller designed for secure and intelligent entry management. Featuring an embedded fingerprint verification engine, the controller supports up to 3,000 fingerprint users, 30,000 card holders, and stores up to 100,000 event logs. With TCP/IP and RS485 communication, the InBio 260B provides reliable networking, advanced access control features, and seamless integration with biometric readers and security systems.
Designed for offices, factories, educational institutions, hospitals, banks, warehouses, and commercial buildings, the InBio 260B delivers enterprise-level security with flexible expansion and real-time monitoring capabilities.
Key Features
- Supports up to 2 doors.
- Embedded fingerprint verification.
- Supports 30,000 card holders.
- Stores up to 100,000 event logs.
- TCP/IP and RS485 communication.
- Compatible with Wiegand and RS485 readers.
- Anti-Passback and Interlock functions.
- First Card Opening and Multi-Card Opening.
- Duress Password support.
- Real-time access monitoring.
- Power-loss data protection.
- Easy installation and network integration.
Product Advantages
- Enterprise-grade access control solution.
- Fast and secure fingerprint verification.
- Large user and event storage capacity.
- Reliable TCP/IP and RS485 communication.
- Advanced access control security functions.
- Supports multiple reader types.
- Ideal for medium and large facilities.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | eSSL InBio 260B Multi-Door Access Control Panel |
| Category | Access Control Panel |
| Model | InBio 260B |
| Number of Doors | 2 Doors |
| CPU | 32-bit 400MHz CPU |
| RAM | 32 MB |
| Flash Memory | 128 MB |
| Fingerprint Capacity | 3,000 Templates |
| Card Holder Capacity | 30,000 Users |
| Log Event Capacity | 100,000 Records |
| Communication | TCP/IP, RS485 |
| Frequency Mode | Fixed-Frequency Emission Mode |
| Reader Support | 8 Readers (4 RS485 Readers & 4 × 26-bit Wiegand Readers) |
| Supported Reader Types | 26-bit Wiegand & RS485 FR Series Readers |
| Inputs | 6 (2 Exit Device, 2 Door Status, 2 Auxiliary) |
| Outputs | 4 (2 Lock Relay Outputs & 2 Auxiliary Relay Outputs) |
| Power Supply | 14.4V DC |
| Operating Temperature | Up to 45°C |
| Operating Humidity | Up to 80% RH |
| Package Dimensions | 350 × 300 × 90 mm (L × W × H) |
| Package Weight | 3.6 kg |
Main Features
- 2-Door Access Controller.
- Embedded Fingerprint Verification.
- TCP/IP & RS485 Communication.
- Supports 30,000 Card Users.
- 100,000 Event Log Storage.
- Anti-Passback Function.
- Interlock Function.
- First Card Opening.
- Multi-Card Opening.
- Duress Password Protection.
- Auxiliary Input & Output.
- Power Failure Data Protection.
Applications
- Corporate Offices
- Commercial Buildings
- Factories & Manufacturing Units
- Educational Institutions
- Hospitals & Healthcare Facilities
- Banks & Financial Institutions
- Warehouses & Logistics Centers
- Government Offices
- Residential Complexes
- High-Security Areas
Why Choose eSSL InBio 260B?
- Supports advanced biometric access control.
- Reliable fingerprint and RFID authentication.
- Large storage for users and event logs.
- Advanced security functions including Anti-Passback and Interlock.
- Supports multiple reader configurations.
- Real-time monitoring over TCP/IP network.
- Ideal for scalable enterprise security systems.
- Reliable performance with data protection during power failures.
Package Includes
- 1 × eSSL InBio 260B Access Control Panel
- 1 × Installation Kit
- 1 × User Manual
