eSSL JS34 Standalone Access Control System

Rs. 3,800.00

~~Rs. 6,600.00~~ Rs. 3,800.00

Sale Sold out

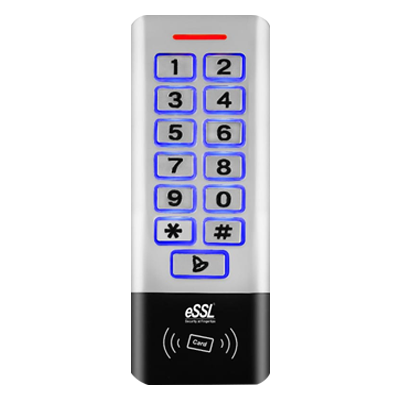

JS-34 Standalone Access Control System

The JS-34 Standalone Access Control System is a rugged RFID-based access controller designed for secure door entry management using card, PIN, and combined authentication modes. With IP66-rated protection and anti-vandal metal housing, it is suitable for both indoor and outdoor installations.

Key Features

Supports Card, PIN, and Card + PIN access modes
Supports up to 2,000 cards/codes
IP66 rated waterproof and dustproof design
Backlit metal keypad with anti-vandal construction
Wiegand 26 input/output support
Standalone access control and reader functionality
Adjustable door opening time (0–99 seconds)
Supports EM and Mifare card types

Technical Specifications

Specification	Details
Model	JS-34
Product Type	Standalone Access Control Device
User Capacity	2,000 Cards/Codes
Authentication Modes	Card / PIN / Card + PIN
Card Type	EM / Mifare (MF)
Read Range	5 – 8 cm
Operating Voltage	DC 12V ±10%
Electric Lock Output	< 3A
Static Current	< 30mA
Door Opening Time	0 – 99 seconds (Adjustable)
Humidity	10% – 90% RH
Operating Temperature	-45°C to 60°C
Protection Rating	IP66
Short Circuit Protection	< 100µs
