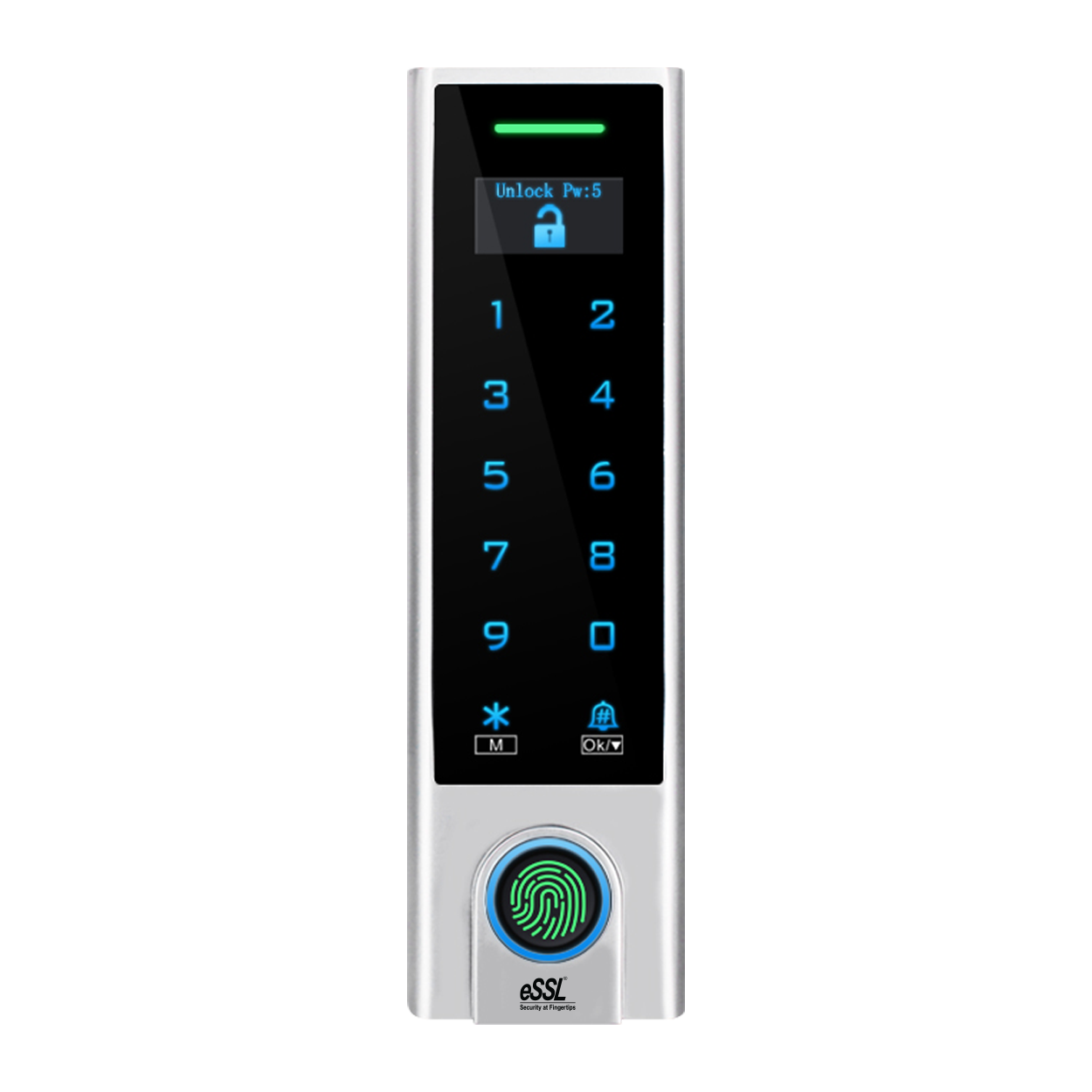

eSSL MA-46E Access Control System with Mobile App

eSSL MA-46E Access Control System with Mobile App

Rs. 4,917.00
Rs. 6,392.00 Rs. 4,917.00
Sale Sold out
Mobile App Access Reader
MA-46E
Wi-Fi connected access control with OLED touch keypad, IP66 weatherproofing, and complete mobile app management — no dedicated PC required.
✓ Wi-Fi Built-in IP66 Waterproof
EM 125 KHz Zinc-Alloy Body Anti-Vandal
10K
HW Users
500
App Users
IP66
Protection
99s
Max Relay
Key Features
Mobile App Management
Add, delete and manage users from your phone. Set time restrictions and issue temporary passwords remotely.
Built-in Wi-Fi
Wireless network connection — no cabling to the reader. Ideal for retrofit and new installations alike.
IP66 Weatherproof
Fully sealed against dust and water jets. Deploy outdoors on gates, walls, and parking barriers.
OLED Touch Keypad
High-contrast OLED display with capacitive touch. Supports 4–6 digit PIN and 10-digit virtual numbers.
Temporary Passwords
One-time or period-based visitor codes with full door-opening record log for audit.
Wiegand 26–44 bit I/O
Integrates with virtually any third-party access panel via standard Wiegand interface.
Anti-Vandal Zinc-Alloy
Precision zinc-alloy body in silver & black engineered to resist tampering and impact.
9,988 Card/PIN Users
Standard 125 KHz EM card support for up to 9,988 card or PIN users at once.
Adjustable Relay 0–99s
Single relay (NO/NC/Common) with adjustable timing and 2A load — fits all common lock types.
Technical Specifications
User Capacity▾
Hardware Users
10,000
APP Users
500
Card / PIN Users
9,988
Fingerprint Users
500 (100 or 800 optional)
Visitor Users
10
Panic Users
2
PIN Length
4 – 6 digits
Power Supply▾
Operating Voltage
12 – 18V DC
Idle Current
≤ 60 mA
Active Current
≤ 150 mA
Card Reader▾
Card Type
EM Card
Radio Frequency
125 KHz
Relay & Wiring▾
Relay Outputs
1 (NO, NC, Common)
Relay Output Time
0 – 99 s (default: 5 s)
Lock Load
2 A maximum
Wiring
Relay output, exit button, alarm, door contact, Wiegand I/O
Interface & Output▾
Wiegand Format
26 – 44 bits input & output (default: 26 bits)
PIN Output
4 bits / 8 bits ASCII / 10-digit virtual number (default: 4 bits)
Physical & Environmental▾
Color
Silver & Black
Dimensions
L 148 × W 43.5 × H 22 mm
Material
Zinc-Alloy (anti-vandal)
Operating Temperature
−40°C to 60°C
Operating Humidity
0 %RH – 98 %RH
Ingress Protection
IP66 (Waterproof & Dustproof)
Why Choose MA-46E
01
Wireless Installation
Built-in Wi-Fi cuts installation time and cost — no network cabling required to the reader.
02
Outdoor-Ready
IP66 zinc-alloy housing handles rain, dust, and vandal attempts — built for gates and exteriors.
03
Enterprise-Scale Capacity
Up to 10,000 hardware users — scales from small offices to large campuses and gated communities.
04
Universal Compatibility
Wiegand 26–44 bit I/O works with virtually any existing access controller or panel.
