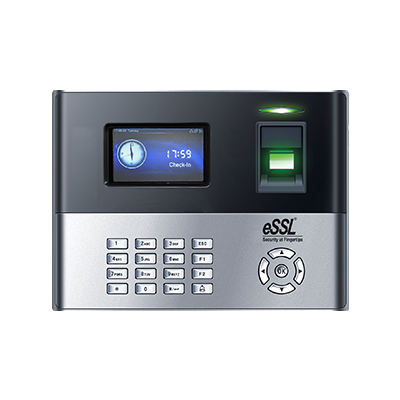

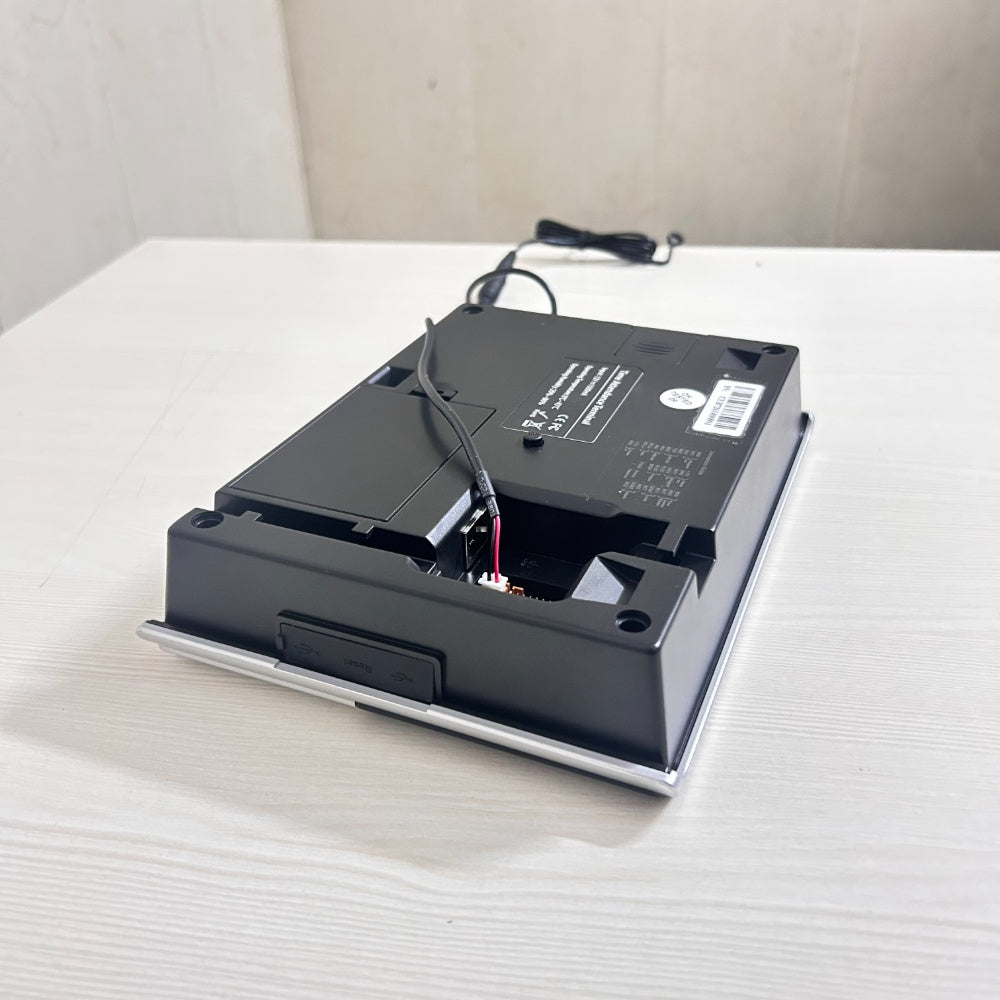

eSSL X990-C+ID Access Control Terminal

The eSSL X990-C+ID Access Control Terminal is a fingerprint-based biometric device designed for employee time attendance and secure door access control. It combines fingerprint authentication with an inbuilt proximity card reader, making it suitable for offices, factories, schools, gyms, clubs, and other commercial environments.

The eSSL X990 Biometric Machine supports up to 10,000 fingerprints, 10,000 cards, and 100,000 attendance or access transactions. Its 500 DPI optical fingerprint sensor provides fast identification in less than 0.5 seconds, helping organizations manage employee attendance efficiently.

As an eSSL Biometric Access Control solution, the X990 supports TCP/IP and USB communication, with optional Wi-Fi and GPRS connectivity. Its integrated 12V relay supports compatible electric, EM, bolt, and strike locks, while Wiegand, door sensor, fire alarm, and anti-passback functions provide additional access control capabilities.

Key Features

• 10,000 fingerprint capacity for large workforce management
• 10,000 card capacity with an inbuilt proximity card reader
• 100,000 transaction capacity for attendance and access records
• 500 DPI optical fingerprint sensor for reliable authentication
• Fingerprint identification speed below 0.5 seconds
• Supports fingerprint and proximity card authentication
• Optional Mifare and HID Prox card support
• TCP/IP and USB communication
• Optional Wi-Fi and GPRS connectivity
• 12V relay output for compatible door locks
• Wiegand input and output with 26-bit / 34-bit support
• Door sensor, fire alarm, anti-passback and door bell support
• Push data communication through static IP and domain server
• SDK support for desktop applications
• Integration with compatible payroll, HRMS and ERP software
• Compatible with eTimeTrackLite Desktop & Web

Fingerprint & Authentication

The eSSL Fingerprint Access Control terminal uses a 500 DPI optical fingerprint sensor and Version 10 fingerprint algorithm. It supports up to 10,000 fingerprint templates with fast identification for everyday employee attendance and access verification.

The terminal also supports an inbuilt proximity card reader, while Mifare and HID Prox card options are available depending on the configuration.

Access Control

The eSSL X990 Access Control Machine provides integrated door access control through a 12V relay. It can be connected to compatible electric locks, EM locks, bolt locks, and strike locks.

The device also supports Wiegand input/output, external exit readers, door sensors, fire alarm integration, anti-passback, and door bell functionality.

Communication & Software Integration

The X990-C+ID Terminal supports TCP/IP and USB communication for convenient data transfer and device management. Optional Wi-Fi and GPRS connectivity can be provided for installations requiring wireless communication.

Push data support enables communication through static IP or domain server configurations. The device also provides SDK support and can be integrated with compatible payroll, HRMS, ERP, and third-party applications.

Applications

The eSSL X990-C+ID Access Control Terminal can be used for:

• Office employee attendance
• Factory workforce management
• School attendance
• Gym and club access
• Production management
• Canteen management
• Employee time tracking
• Secure door access control

Technical Specifications

Frequently Asked Questions

How many fingerprints can the eSSL X990 store?

The eSSL X990 can store up to 10,000 fingerprint templates and 100,000 transactions.

Does the X990 support door access control?

Yes. It supports a 12V relay, Wiegand, door sensor, anti-passback, fire alarm, and compatible electric door locks.

Does the X990 support network connectivity?

Yes. It supports TCP/IP and USB, with optional Wi-Fi and GPRS connectivity.
