Biometric Attendance System

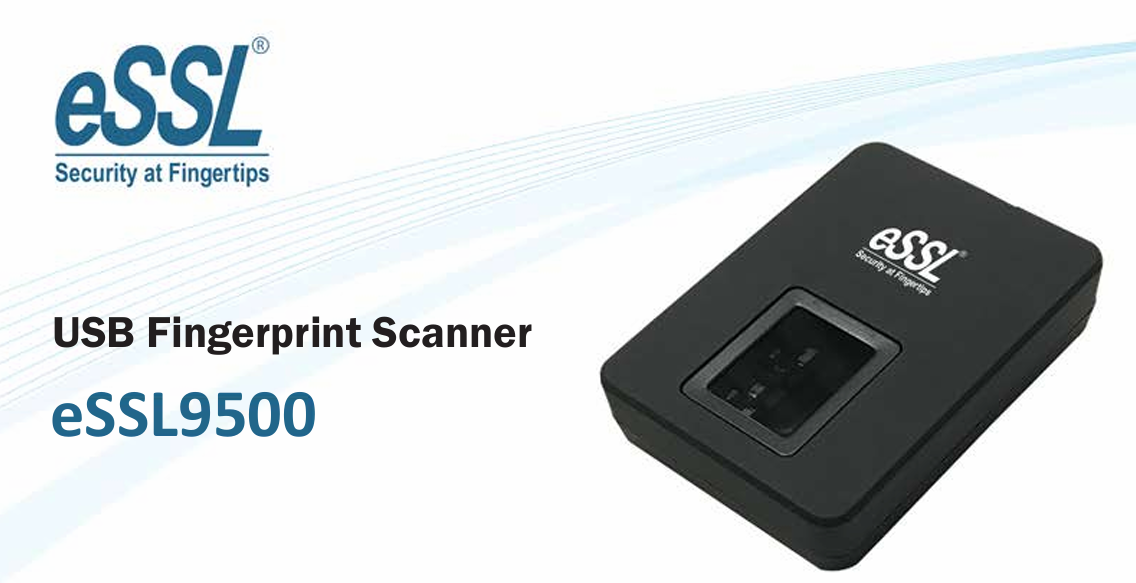

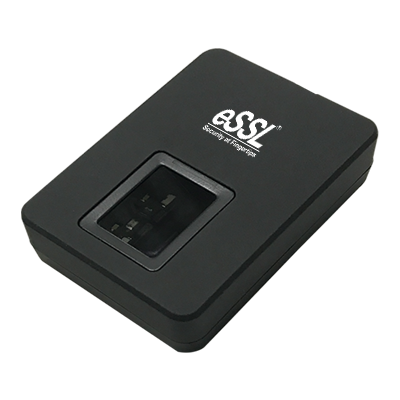

ESSL9500 USB FINGERPRINT SCANNER

ESSL9500 USB FINGERPRINT SCANNER

Rs. 4,485.00
Rs. 6,500.00 Rs. 4,485.00
Sale Sold out

The ESSL9500 USB FINGERPRINT SCANNER is a high-quality, biometric scanning device perfect for secure authentication. Its USB connectivity allows for easy installation and compatibility with various systems. With its reliable fingerprint recognition technology, you can ensure accurate and efficient identification for your business needs.

  • Scanner Type : Optical,
  • CPU : 280MHz DSP ,
  • Flash : 32 MB ,
  • SoC : RTOS {image out only} .

ESSL 9500 USB FINGERPRINT SCANNER

The ESSL9500 USB FINGERPRINT SCANNER is a high-quality, efficient and secure option for capturing and encrypting fingerprint data. Featuring a 280MHz DSP CPU and 32 MB flash, this optical scanner works seamlessly with RTOS for optimal performance. With a 2-megapixel CMOS for exceptional image quality, it is certified by FCC, CE, and RoHS, and offers live fingerprint detection for added security.

TECHNICAL SPECIFICATIONS

  • Scanner Type : Optical
  • CPU : 280MHz DSP
  • Flash : 32 MB
  • SoC : RTOS {image out only}
  • Image Quality : 2-megapixel CMOS
  • Encrypted Fingerprint Data : Yes
  • Sunlight Operation : Must, dark field & automatic gain/exposure
  • Water Splash : No damage and normal operation is ensured Dry, Wet or Rough Fingerprints : Work well
  • Power Consumption : 5V:200mA scanning; 5V:60mA idle(waiting for finger)
  • Live Fingerprint Detection : Yes
  • LED : White
  • Product Certifications : FCC, CE, RoHS
  • Power Voltage : 5V
  • Power Current : 200mA
  • Communication : USB 2.0/USB1.1
  • Interface Socket : USB Type A
  • Image Resolution : 500dpi
  • Effective Collecting Area : 15.24 * 20.32 mm (FAP20)
  • Collecting Area : 16.5 * 23 (mm)
  • Image Size : 300 * 400 pixels (FAP20)
  • Dimensions : 75 * 51* 19.5mm (L*W*H)
  • Image Formats : RAW, BMP, JPG
  • Algorithm : Finger V10.0
  • Grayscale : 256
  • Operating Environment : -20 °C ~ +50 °C; 90% r.h.

FEATURES

  • - Stable Operation under strong light
  • - Large fingerprint capture area and high image performance
  • - Quick Recognition Of dry, wet and rough fingerprints
  • - High Speed USB 2.0
  • - Low Power Idle Mode
  • - Available SDK for development
