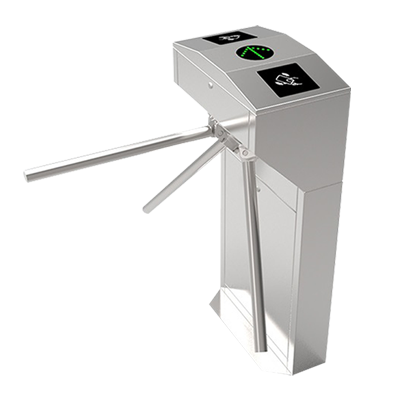

eSSL ET-1000 Heavy Duty Tripod Turnstile
The eSSL ET-1000 is a robust and reliable heavy-duty tripod turnstile designed for secure pedestrian access control in offices, factories, educational institutions, stadiums, metro stations, and commercial facilities. Featuring a durable SS304 stainless steel body and a high-performance electromagnetic drive, the ET-1000 provides smooth, controlled entry with a "one person, one passage" mechanism for enhanced security and traffic management.
Heavy-Duty Construction
Built with premium SS304 stainless steel housing and stainless-steel barrier arms for long-lasting durability and reliable operation.
High Throughput Performance
Supports up to 35 persons per minute, making it ideal for medium and high-traffic environments.
Flexible Operating Modes
Supports single-direction, bi-directional, free passage, and locked modes to suit different access control requirements.
Easy Integration
Compatible with RFID readers, fingerprint devices, face recognition systems, and access control controllers.
Key Features
- Heavy Duty Semi-Automatic Tripod Turnstile.
- SS304 Stainless Steel Housing.
- Single or Bi-Directional Operation.
- Automatic Reset After Each Passage.
- Adjustable Timeout Delay.
- Pure Mechanical Mode Support.
- Free Passage and Locked Modes.
- Low Maintenance and Long Service Life.
- Compatible with RFID, Fingerprint, and Face Recognition Systems.
- Ideal for Indoor and Semi-Outdoor Installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ET-1000 |
| Category | Heavy Duty Tripod Turnstile |
| Passage Width | 520 mm |
| Throughput Rate | 35 Persons/Minute |
| Power Supply | 100V ~ 240V AC |
| Operational Voltage | 24V DC |
| Maximum Power Consumption | 30W |
| Frequency | 50 ~ 60Hz |
| Protection Rating | IP44 |
| Working Temperature | -25°C to +70°C |
| Drive Type | Electromagnetic Drive (DC) |
| Dimensions (L × W × H) | 480 × 280 × 980 mm (Excluding Bar) |
| Net Weight | 44 kg (Including Bar) |
| MCBF | 5 Million Cycles |
| Housing Material | SS304 Stainless Steel |
| Barrier Arms | Stainless Steel |
| Optional Lid | Stainless Steel or Artificial Stone (Black/Brown) |
| Secondary Controller | InBio-260 Integrated Controller |
| User Capacity | 30,000 RFID Users |
| Fingerprint Capacity | 3,000 Fingerprints |
| Transaction Capacity | 100,000 Records |
| Fire Alarm Support | Yes |
| Reader Compatibility | RFID / Fingerprint Readers |
| Communication Protocol | RS485 / Mifare / Proximity (Optional) |
Operating Modes
- Single Passage in Set Direction
- Bi-Directional Passage
- Free Passage in Set Direction
- Always Free or Locked Mode
Applications
- Corporate Offices
- Factories & Manufacturing Units
- Educational Institutions
- Government Buildings
- Commercial Complexes
- Metro Stations & Transport Hubs
- Stadiums & Event Venues
- Warehouses & Logistics Centers
Why Choose eSSL ET-1000?
- Heavy-duty construction for continuous operation.
- Supports multiple access control technologies.
- High throughput for busy entrances.
- Reliable and low-maintenance design.
- Flexible operation modes for various applications.
- Long life with 5 million cycle durability.
- Ideal solution for secure pedestrian management.
Package Includes
- 1 × eSSL ET-1000 Heavy Duty Tripod Turnstile
- Installation Accessories
- User Manual
