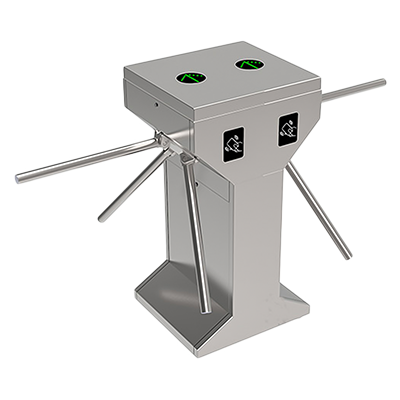

eSSL ET-1200 Tripod Turnstile – Stainless Steel Pedestrian Access Gate
eSSL ET-1200 Tripod Turnstile – Stainless Steel Pedestrian Access Gate
📞 Call 9315441078 for Best Price
Couldn't load pickup availability
eSSL ET-1200 Heavy Duty Tripod Turnstile
The eSSL ET-1200 is a premium heavy-duty tripod turnstile designed for secure pedestrian access management in offices, factories, commercial complexes, educational institutions, stadiums, airports, and transportation hubs. Featuring a robust stainless-steel construction and electro-magnetic drive system, the ET-1200 ensures reliable operation, high throughput, and effective "one person, one passage" access control.
Heavy-Duty Stainless-Steel Construction
Built with high-quality stainless steel housing for superior durability, vandal resistance, and long service life.
High Traffic Management
Supports up to 35 persons per minute, making it ideal for high-traffic entrances and exit points.
Flexible Access Control Integration
Compatible with RFID readers, fingerprint devices, face recognition systems, QR code scanners, and access control controllers.
Emergency Safety Features
Supports fire alarm integration and drop-arm functionality for quick evacuation during emergencies.
Key Features
- Heavy Duty Semi-Automatic Tripod Turnstile.
- Premium Stainless-Steel Construction.
- Single or Bi-Directional Passage Control.
- Automatic Reset of Barrier Arms.
- Adjustable Timeout Delay.
- Drop Arm Feature for Emergency Exit.
- Supports Mechanical and Electrical Operation Modes.
- Compatible with RFID, Fingerprint, Face Recognition, and QR Systems.
- Low Maintenance and Long Service Life.
- Suitable for Indoor and Semi-Outdoor Installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ET-1200 |
| Category | Heavy Duty Tripod Turnstile |
| Passage Width | 520 mm |
| Throughput Rate | 35 Persons/Minute |
| Power Supply | 100V – 240V AC |
| Operational Voltage | 24V DC |
| Maximum Power Consumption | 30W |
| Frequency | 50 – 60Hz |
| Protection Rating | IP44 |
| Working Temperature | -25°C to +70°C |
| Drive Type | Electro-Magnetic Drive (DC) |
| Dimensions (L × W × H) | 480 × 560 × 960 mm (Excluding Bar) |
| Net Weight | 60 kg (Including Bar) |
| Housing Material | Stainless Steel (AISI 304 / AISI 316) |
| Barrier Arms | Stainless Steel |
| Integrated Controller | InBio-260 |
| User Capacity | 30,000 RFID Users |
| Fingerprint Capacity | 3,000 Fingerprints |
| Transaction Capacity | 100,000 Records |
| Fire Alarm Support | Yes |
| Reader Compatibility | RFID, Fingerprint, Face Recognition, QR Code |
| Communication Protocol | RS485 / Mifare / Proximity (Optional) |
Operating Modes
- Single Passage in Set Direction
- Bi-Directional Passage
- Free Passage Mode
- Always Free or Locked Mode
- Drop Arm Emergency Mode
Applications
- Corporate Offices
- Factories & Manufacturing Units
- Government Buildings
- Educational Institutions
- Airports & Metro Stations
- Stadiums & Event Venues
- Commercial Complexes
- Warehouses & Logistics Centers
Why Choose eSSL ET-1200?
- Heavy-duty construction for demanding environments.
- High throughput for busy entrances.
- Supports multiple authentication technologies.
- Emergency drop-arm and fire alarm integration.
- Reliable and low-maintenance design.
- Suitable for indoor and semi-outdoor deployments.
- Ideal solution for secure pedestrian access management.
Package Includes
- 1 × eSSL ET-1200 Heavy Duty Tripod Turnstile
- Installation Accessories
- User Manual
