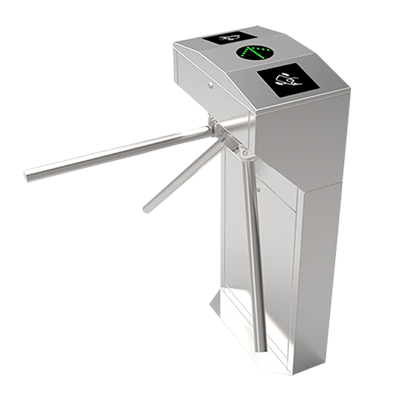

eSSL ETA-1000 Automatic Tripod Turnstile – Stainless Steel Pedestrian Access Gate
eSSL ETA-1000 Automatic Tripod Turnstile – Stainless Steel Pedestrian Access Gate
Couldn't load pickup availability
eSSL ETA-1000 Heavy Duty Automatic Tripod Turnstile
The eSSL ETA-1000 is a premium heavy-duty automatic tripod turnstile designed for secure and efficient pedestrian access management. Built with a robust metal and stainless-steel construction, the ETA-1000 provides smooth, reliable, and fully automatic operation, making it ideal for offices, factories, educational institutions, commercial complexes, stadiums, and transportation hubs.
Fully Automatic Operation
Features Full-Auto mode for smooth and controlled passage with automatic reset of barrier arms after each authorized entry.
Heavy-Duty Construction
Manufactured using high-quality metal sheet and optional AISI 304/AISI 316 stainless steel for superior durability and long service life.
Flexible Access Control Integration
Compatible with RFID readers, fingerprint devices, face recognition systems, and other access control solutions.
Multiple Operating Modes
Supports single passage, bi-directional passage, free passage, and locked modes for various security requirements.
Key Features
- Heavy Duty Automatic Tripod Turnstile.
- Full-Auto and Pure Mechanical Operating Modes.
- Single or Bi-Directional Function.
- Automatic Reset of Barrier Arms.
- Adjustable Timeout Delay.
- Low Maintenance and Long Service Life.
- Supports Fire Alarm Integration.
- Compatible with RFID and Fingerprint Readers.
- Suitable for Indoor and Semi-Outdoor Installations.
- High-Quality Powder Coated Finish.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ETA-1000 |
| Category | Heavy Duty Automatic Tripod Turnstile |
| Passage Width | 550 mm |
| Throughput Rate | 35 Persons/Minute |
| Power Supply | 100V – 240V AC |
| Operational Voltage | 24V DC |
| Maximum Power Consumption | 30W |
| Frequency | 50 – 60Hz |
| Protection Rating | IP54 |
| Working Temperature | -25°C to +70°C |
| Drive Type | DC Electro-Magnetic Motor Drive |
| Dimensions (L × W × H) | 480 × 280 × 980 mm (Excluding Bar) |
| Net Weight | 44 Kg (Including Bar) |
| Housing Material | Metal Sheet / Optional AISI 304 or AISI 316 Stainless Steel |
| Barrier Arms | Stainless Steel |
| Optional Lid | Stainless Steel or Artificial Stone (Black/Brown) |
| Integrated Controller | InBio-260 |
| User Capacity | 30,000 RFID Users |
| Fingerprint Capacity | 3,000 Fingerprints |
| Transaction Capacity | 100,000 Records |
| Relay Output | 12V Relay for Lock |
| Fire Alarm Support | Yes |
| Communication Protocol | RS485 / Mifare / Proximity (Optional) |
Operating Modes
- Single Passage in the Set Direction
- Bi-Directional Passage
- Free Passage in the Set Direction
- Always Free or Locked Mode
- Full-Auto and Mechanical Modes
Applications
- Corporate Offices
- Factories & Manufacturing Units
- Educational Institutions
- Government Buildings
- Commercial Complexes
- Stadiums & Event Venues
- Metro Stations & Transport Hubs
- Warehouses & Logistics Centers
Why Choose eSSL ETA-1000?
- Fully automatic and reliable operation.
- Heavy-duty construction for continuous usage.
- Supports multiple access control technologies.
- Flexible operating modes for different security requirements.
- Easy integration with biometric and RFID systems.
- Low maintenance and long service life.
- Ideal solution for secure pedestrian access management.
Package Includes
- 1 × eSSL ETA-1000 Automatic Tripod Turnstile
- Installation Accessories
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
