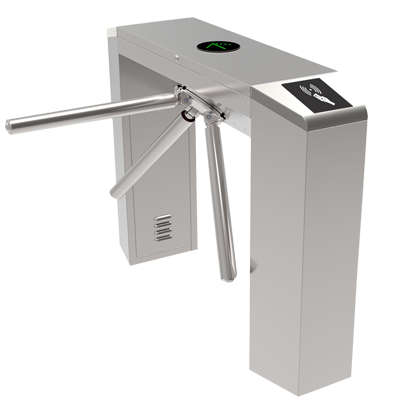

eSSL ETA-2000 Automatic Bridge Type Tripod Turnstile
The eSSL ETA-2000 is a premium automatic bridge-type tripod turnstile designed for high-security pedestrian access control applications. Built with a robust SUS304 stainless steel housing and equipped with a reliable electro-magnetic drive system, the ETA-2000 provides smooth, secure, and efficient entry management for offices, factories, educational institutions, metro stations, stadiums, and commercial complexes.
Fully Automatic Operation
Features a high-performance motorized mechanism that automatically unlocks and resets after each authorized passage.
Heavy-Duty Construction
Manufactured with premium SUS304 stainless steel for excellent durability, corrosion resistance, and long operational life.
High Traffic Management
Supports continuous operation with a throughput of up to 35 persons per minute, ideal for busy entrances and exits.
Flexible Access Control Integration
Compatible with RFID readers, fingerprint systems, face recognition devices, QR scanners, and third-party access controllers.
Key Features
- Automatic Bridge Type Tripod Turnstile.
- Bi-Directional and Single-Directional Operation.
- Automatic Arm Reset Function.
- Adjustable Passage Timeout.
- Emergency Drop Arm Function.
- Fire Alarm Integration Support.
- Compatible with RFID, Fingerprint, Face, and QR Systems.
- Heavy-Duty SUS304 Stainless Steel Construction.
- Low Maintenance and Long Service Life.
- Suitable for Indoor and Semi-Outdoor Installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ETA-2000 |
| Category | Automatic Bridge Type Tripod Turnstile |
| Passage Width | 550 mm |
| Throughput Rate | 35 Persons/Minute |
| Power Supply | 100V – 240V AC |
| Operating Voltage | 24V DC |
| Power Consumption | 30W |
| Frequency | 50 – 60Hz |
| Protection Rating | IP44 |
| Working Temperature | -25°C to +70°C |
| Drive Type | DC Electro-Magnetic Motor |
| Opening Duration | 5 – 60 Seconds (Adjustable) |
| Dimensions (L × W × H) | 1200 × 280 × 980 mm |
| Net Weight | Approximately 55 Kg |
| Housing Material | SUS304 Stainless Steel |
| Barrier Arms | Stainless Steel |
| MCBF | 5 Million Cycles |
| Integrated Controller | InBio-260 |
| User Capacity | 30,000 RFID Users |
| Fingerprint Capacity | 3,000 Fingerprints |
| Transaction Capacity | 100,000 Records |
| Communication Interface | RS485 / Dry Contact / Wiegand (Optional) |
| Fire Alarm Interface | Supported |
Operating Modes
- Single Direction Passage
- Bi-Directional Passage
- Free Passage Mode
- Locked Mode
- Automatic Reset After Timeout
- Emergency Drop Arm Function
Applications
- Corporate Offices
- Factories & Manufacturing Plants
- Educational Institutions
- Government Buildings
- Metro Stations & Transport Hubs
- Commercial Complexes
- Warehouses & Logistics Centers
- Stadiums & Event Venues
Why Choose eSSL ETA-2000?
- Fully automatic and reliable operation.
- Heavy-duty stainless-steel construction.
- High throughput for busy entrances.
- Supports multiple access control technologies.
- Emergency safety and fire alarm integration.
- Long service life with 5 million cycle durability.
- Ideal for secure and efficient pedestrian management.
Package Includes
- 1 × eSSL ETA-2000 Automatic Bridge Type Tripod Turnstile
- Installation Accessories
- User Manual
*Specifications and features are subject to change by the manufacturer without prior notice.
